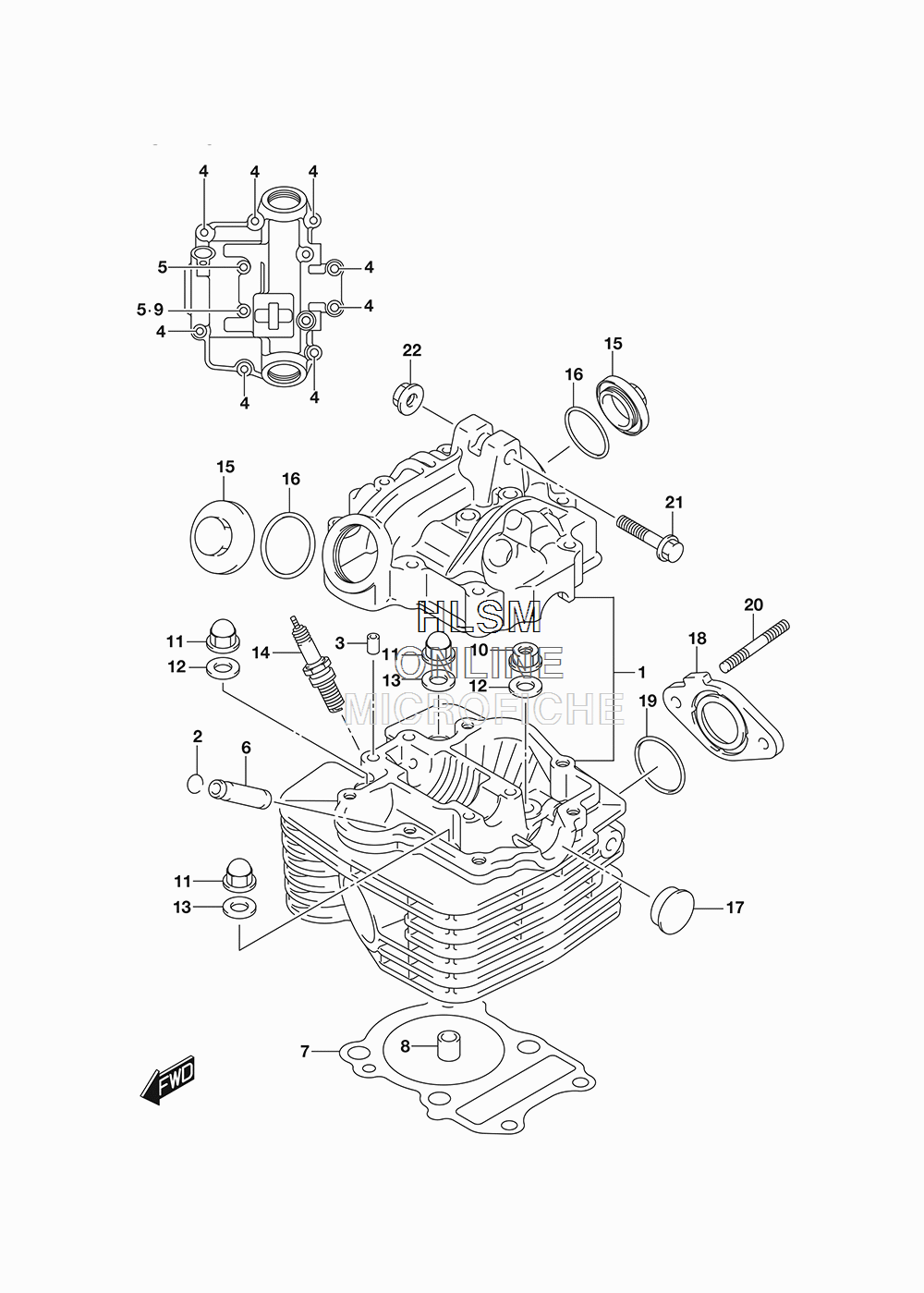

CYLINDER HEAD для Suzuki RV200 VANVAN 200 - 2018 года выпуска
-
№АртикулНазвание
-
111100-42A70 HEAD ASSY, CYLINDERHEAD ASSY, CYLINDER
-
209381-10004 ...SNAP RING...SNAP RING
-
309206-08001 ...PIN (8X11)...PIN (8X11)
-
401550-0635A ...BOLT...BOLT
-
501550-0660A ...BOLT...BOLT
-
611115-05270 ...GUIDE, VALVE (OS:0.3)...GUIDE, VALVE (OS:0.3)
-
711141-42A00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
804211-11169 PINPIN
-
909168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1008316-1008A NUTNUT
-
1109159-08049 NUTNUT
-
1209160-08039 WASHER (8.5X19X2.3)WASHER (8.5X19X2.3)
-
1309168-08021 GASKET (8.5X17X2.3)GASKET (8.5X17X2.3)
-
14-109482-00223 SPARK PLUG (X24ESR-U) (DENSO)SPARK PLUG (X24ESR-U) (DENSO)
-
14-209482-00399 SPARK PLUG (DR8EA) (NGK)SPARK PLUG (DR8EA) (NGK)
-
1511175-18900 CAP, INSPECTIONCAP, INSPECTION
-
1609280-30001 O RING (D:3,ID:29.5)O RING (D:3,ID:29.5)
-
1709241-22002 PLUG (OD:22.5)PLUG (OD:22.5)
-
1813128-13GA0 INSULATOR, THROTTLE BODYINSULATOR, THROTTLE BODY
-
1909280-35001 O RING (D:1.9,ID:34.6)O RING (D:1.9,ID:34.6)
-
2001421-0620A STUD BOLTSTUD BOLT
-
2109103-08519 BOLT (8X55)BOLT (8X55)
-
2208319-3108A NUTNUT
