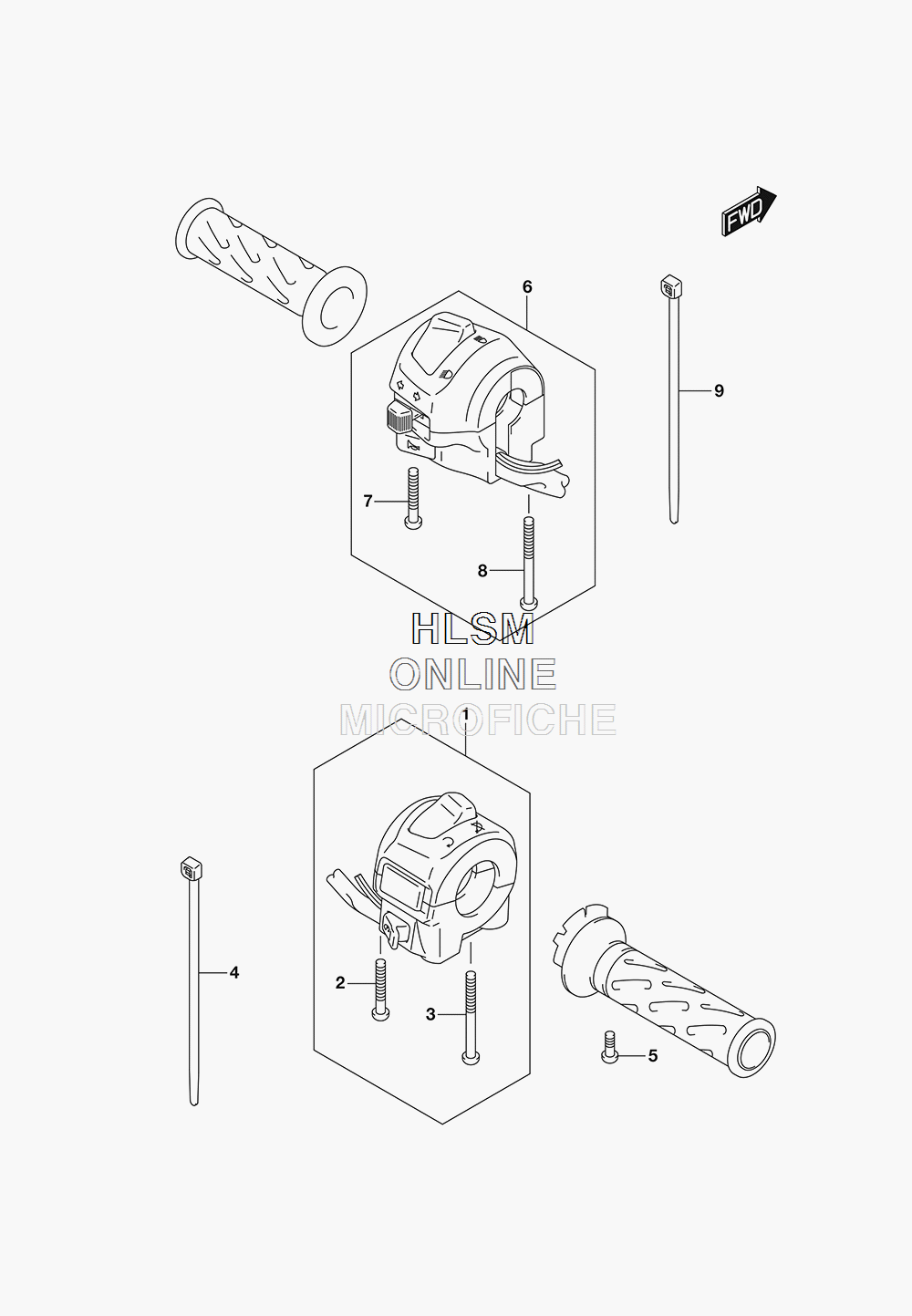

HANDLEBAR - LEVERS / SWITCHES для Suzuki RV200 VANVAN 200 - 2018 года выпуска
-
№АртикулНазвание
-
137200-13G21 SWITCH ASSY, HANDLE (RH)SWITCH ASSY, HANDLE (RH)
-
202112-0530B ...SCREW...SCREW
-
302112-0550B ...SCREW...SCREW
-
409407-14407 CLAMP (L:145)CLAMP (L:145)
-
502112-0510A SCREWSCREW
-
637400-13G00 SWITCH ASSY, HANDLE (LH)SWITCH ASSY, HANDLE (LH)
-
702112-0525B ...SCREW...SCREW
-
802112-0545B ...SCREW...SCREW
-
909407-14407 CLAMP (L:145)CLAMP (L:145)
