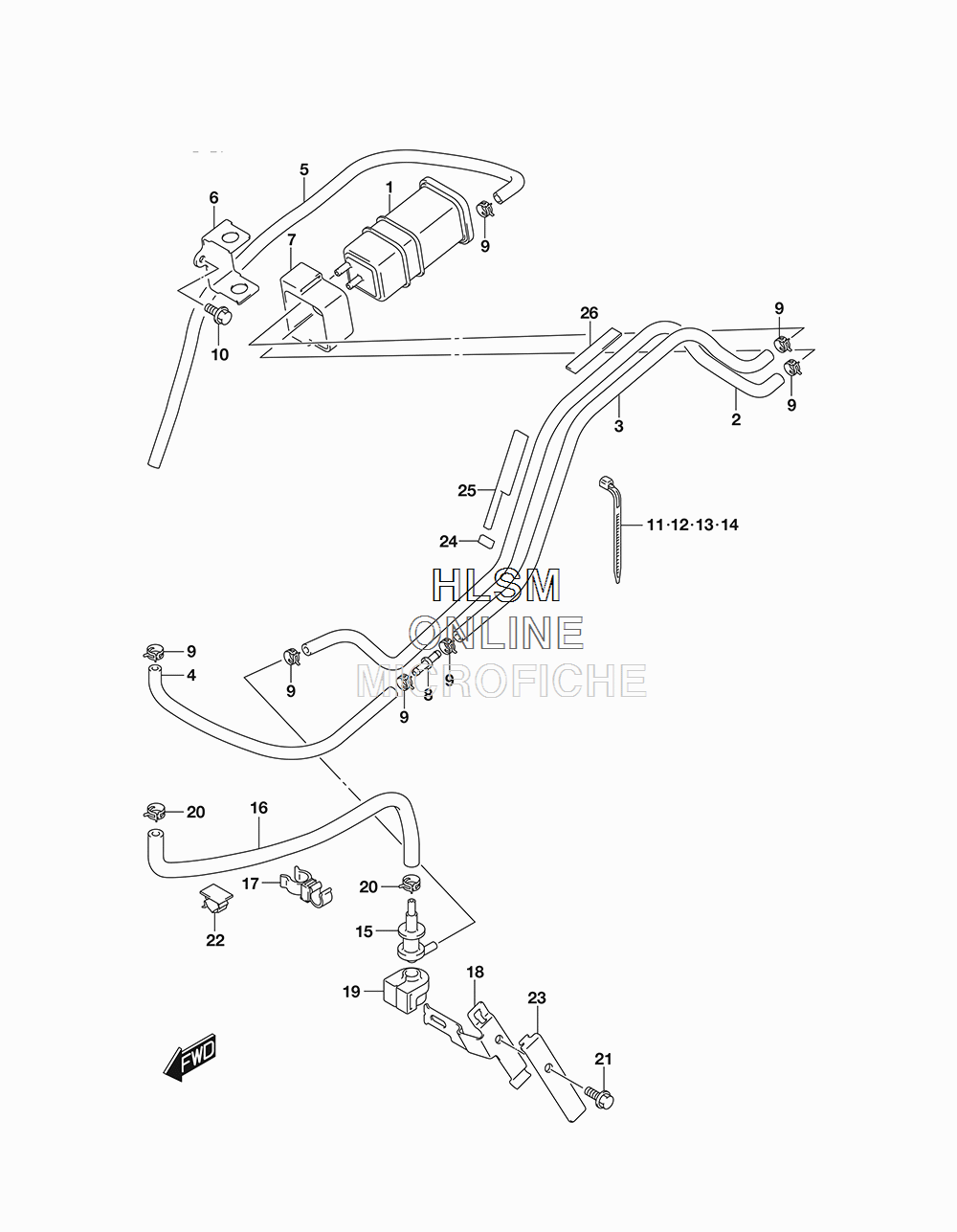

EVAP SYSTEM (CALIF.) для Suzuki RV200 VANVAN 200 - 2018 года выпуска
-
№АртикулНазвание
-
117210-14A00 CANISTER ASSY, CHARCOALCANISTER ASSY, CHARCOAL
-
218561-13G00 HOSE, SURGEHOSE, SURGE
-
318562-13G00 HOSE, EVAPHOSE, EVAP
-
418563-13G00 HOSE, PURGEHOSE, PURGE
-
518564-13G00 HOSE, CANISTER AIRHOSE, CANISTER AIR
-
618571-13G00 BRACKET, CANISTERBRACKET, CANISTER
-
718572-13G00 CUSHION, CANISTERCUSHION, CANISTER
-
809367-06009 JOINTJOINT
-
909401-10409 CLIPCLIP
-
1001550-0612A BOLTBOLT
-
1109407-11401 CLAMP (L:95)CLAMP (L:95)
-
1209407-14403 CLAMP (L:125)CLAMP (L:125)
-
1309407-14407 CLAMP (L:145)CLAMP (L:145)
-
1409407-18402 CLAMP (L:165)CLAMP (L:165)
-
1544240-17C00 VALVE, FUEL TANK BREATHERVALVE, FUEL TANK BREATHER
-
1644434-13G00 HOSE, TANK & BRTHR VALVEHOSE, TANK & BRTHR VALVE
-
1744486-13G00 CLAMP, FUEL TANK BRTHR HOSECLAMP, FUEL TANK BRTHR HOSE
-
1844890-13G10 PLATE, BRTHR VALVEPLATE, BRTHR VALVE
-
1944894-13G00 CUSHION, FUEL TANK BRTHR VALVECUSHION, FUEL TANK BRTHR VALVE
-
2009401-11413 CLIPCLIP
-
2101550-0610B BOLTBOLT
-
2209403-14311 CLAMPCLAMP
-
2344895-13G10 PLATE, BRTHR VALVE NO.1PLATE, BRTHR VALVE NO.1
-
2418573-13G00 TAPE, FRAME NO.1TAPE, FRAME NO.1
-
2518574-13G00 TAPE, FRAME NO.2TAPE, FRAME NO.2
-
2618575-13G00 TAPE, FRAME NO.3TAPE, FRAME NO.3
