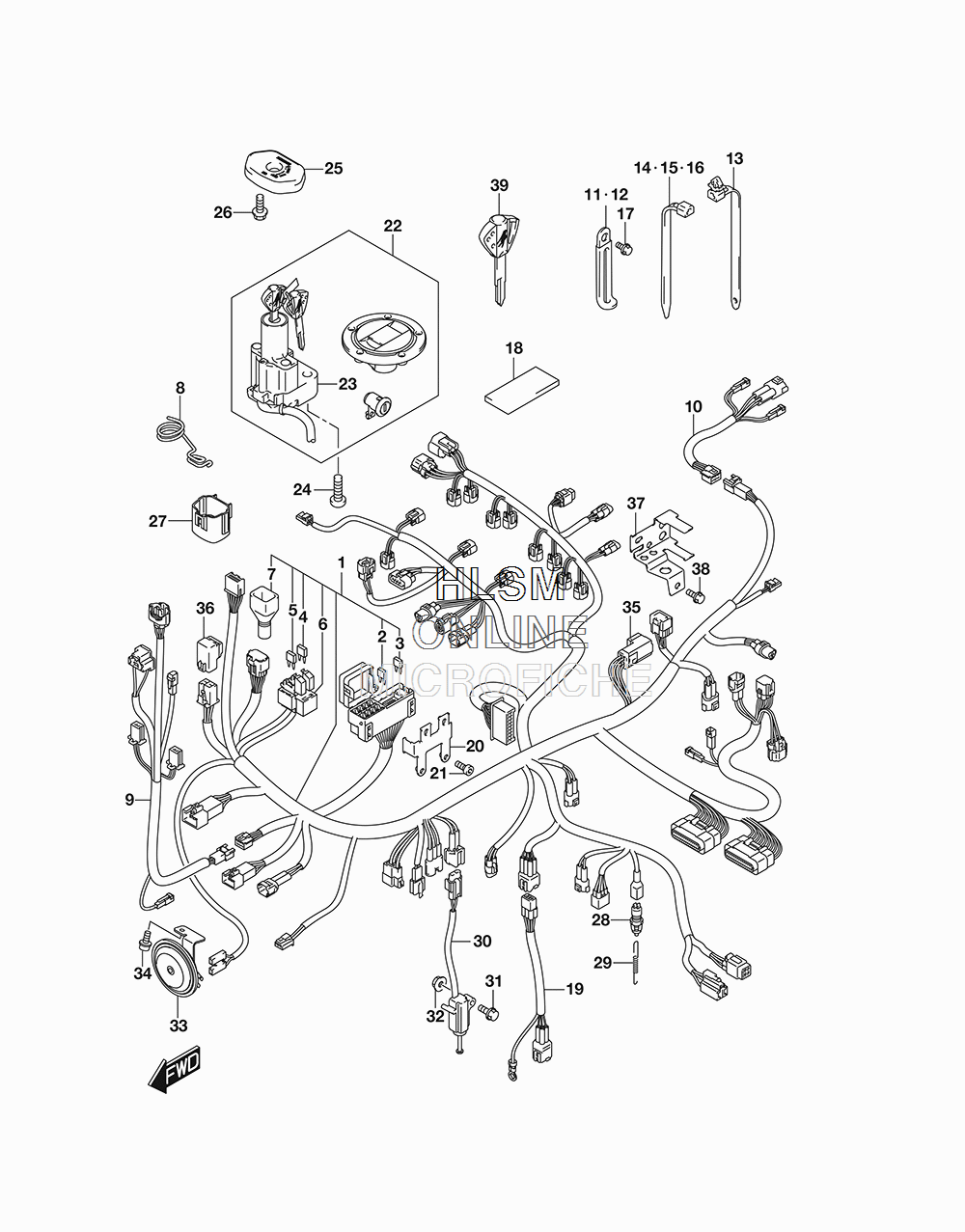

WIRING HARNESS (CALIF.) для Suzuki GSX1300RA HAYABUSA - 2018 года выпуска`
-
№АртикулНазвание
-
136610-15HD0 HARNESS, WIRINGHARNESS, WIRING
-
209481-10501 ...FUSE (10A)...FUSE (10A)
-
309481-15501 ...FUSE (15A)...FUSE (15A)
-
409481-15101 ...FUSE (15A)...FUSE (15A)
-
509481-30101 ...FUSE (30A)...FUSE (30A)
-
636742-45G00 ...HOLDER...HOLDER
-
736618-33E00 ...BOOT, METER...BOOT, METER
-
836619-15H00 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
936620-15H00 HARNESS, WIRING NO.2HARNESS, WIRING NO.2
-
1036857-15H00 WIRE, REAR COMBWIRE, REAR COMB
-
1109404-06429 CLAMP (L:45)CLAMP (L:45)
-
1209404-06435 CLAMP (L:135)CLAMP (L:135)
-
1309407-14408 CLAMP (L:120)CLAMP (L:120)
-
1409407-14403 CLAMP (L:125)CLAMP (L:125)
-
1509407-18402 CLAMP (L:165)CLAMP (L:165)
-
1609407-14407 CLAMP (L:145)CLAMP (L:145)
-
1701550-0616A BOLTBOLT
-
1836920-45G00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
1936855-15H10 WIRE, O2 SENSORWIRE, O2 SENSOR
-
2036744-24F10 BRACKET, FUSE BOXBRACKET, FUSE BOX
-
2107120-0510B BOLTBOLT
-
2237100-15860 LOCK SETLOCK SET
-
2337100-15H80 ...LOCK ASSY, STEERING...LOCK ASSY, STEERING
-
2409139-08016 BOLT (8X20)BOLT (8X20)
-
2537180-15H01 COVER, STEERING LOCKCOVER, STEERING LOCK
-
2601547-0530A BOLTBOLT
-
2736654-06J00 CAP, TSCAP, TS
-
2837740-19F00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2909443-06012 SPRINGSPRING
-
3037840-24F00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
3109103-08357 BOLT (8X35)BOLT (8X35)
-
3208316-1008B NUTNUT
-
3338500-24F30 HORN ASSYHORN ASSY
-
3407120-0612A BOLTBOLT
-
3538740-26E00 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
3638740-26E00 RELAY ASSY, FAN MOTORRELAY ASSY, FAN MOTOR
-
3738741-24F00 BRACKET, FUEL PUMP RELAYBRACKET, FUEL PUMP RELAY
-
3801550-0612A BOLTBOLT
-
3937146-15H00 KEY, BLANK (OPT)KEY, BLANK (OPT)
