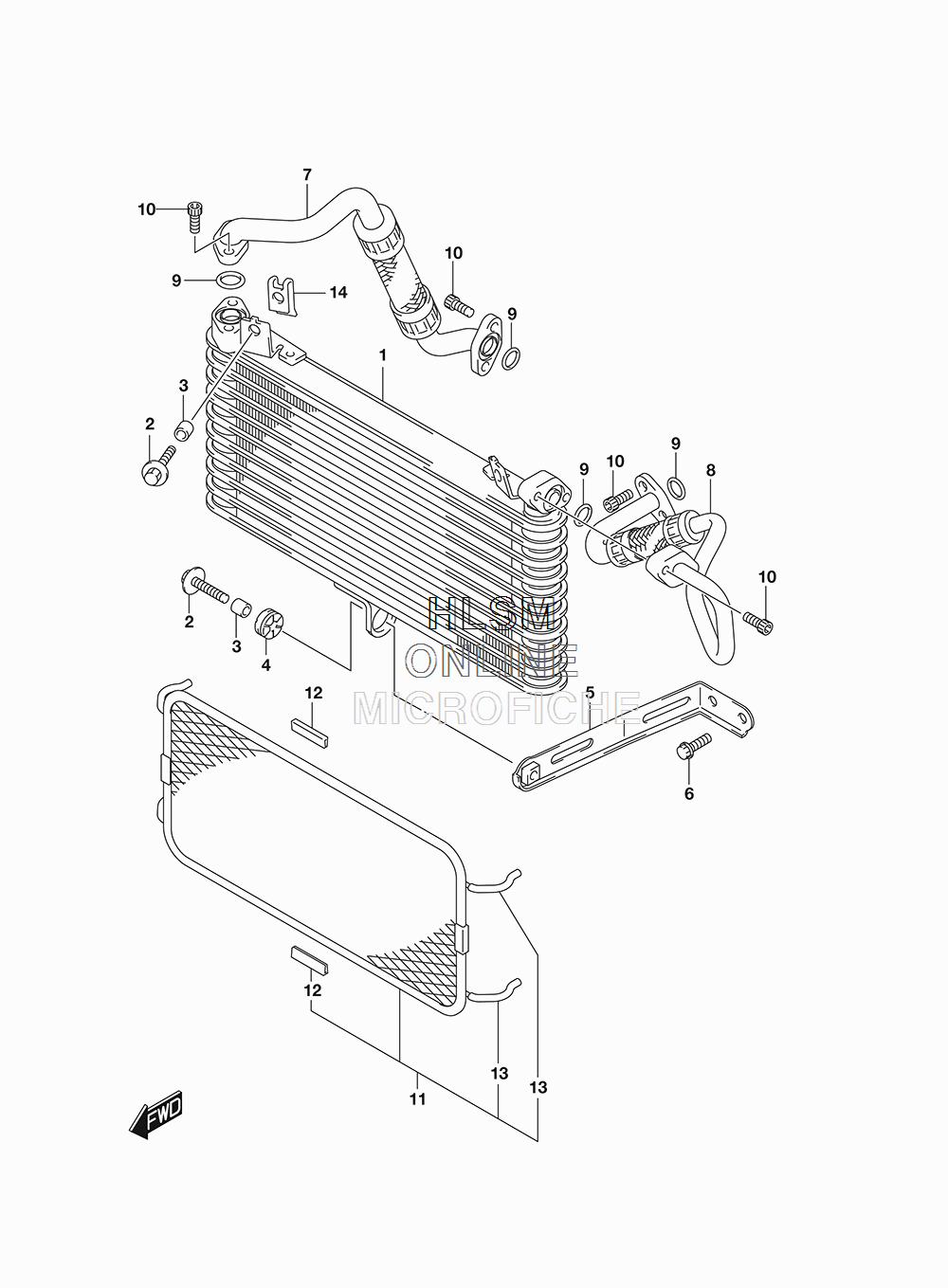

OIL COOLER для Suzuki GSX1300RA HAYABUSA - 2018 года выпуска
-
№АртикулНазвание
-
116600-15H20 COOLER ASSY, OILCOOLER ASSY, OIL
-
209118-06097 BOLT (6X25)BOLT (6X25)
-
309180-06290 SPACER (6.5X10X12)SPACER (6.5X10X12)
-
409320-10051 CUSHIONCUSHION
-
516640-24F00 BRACKET, OIL COOLERBRACKET, OIL COOLER
-
601550-0612A BOLTBOLT
-
716460-15H00 HOSE, OIL COOLER (RH)HOSE, OIL COOLER (RH)
-
816470-15H00 HOSE, OIL COOLER (LH)HOSE, OIL COOLER (LH)
-
909280-15015 O RING (D:2.4,ID:16)O RING (D:2.4,ID:16)
-
1009106-06073 BOLT (6X16)BOLT (6X16)
-
1116650-15H00 GUARD, OIL COOLERGUARD, OIL COOLER
-
1217765-09F00 ...PROTECTOR, CENTER...PROTECTOR, CENTER
-
1309352-30503-600 ...HOSE (3X5X600) (L:600->40)...HOSE (3X5X600) (L:600->40)
-
1417802-14F00 NUTNUT
