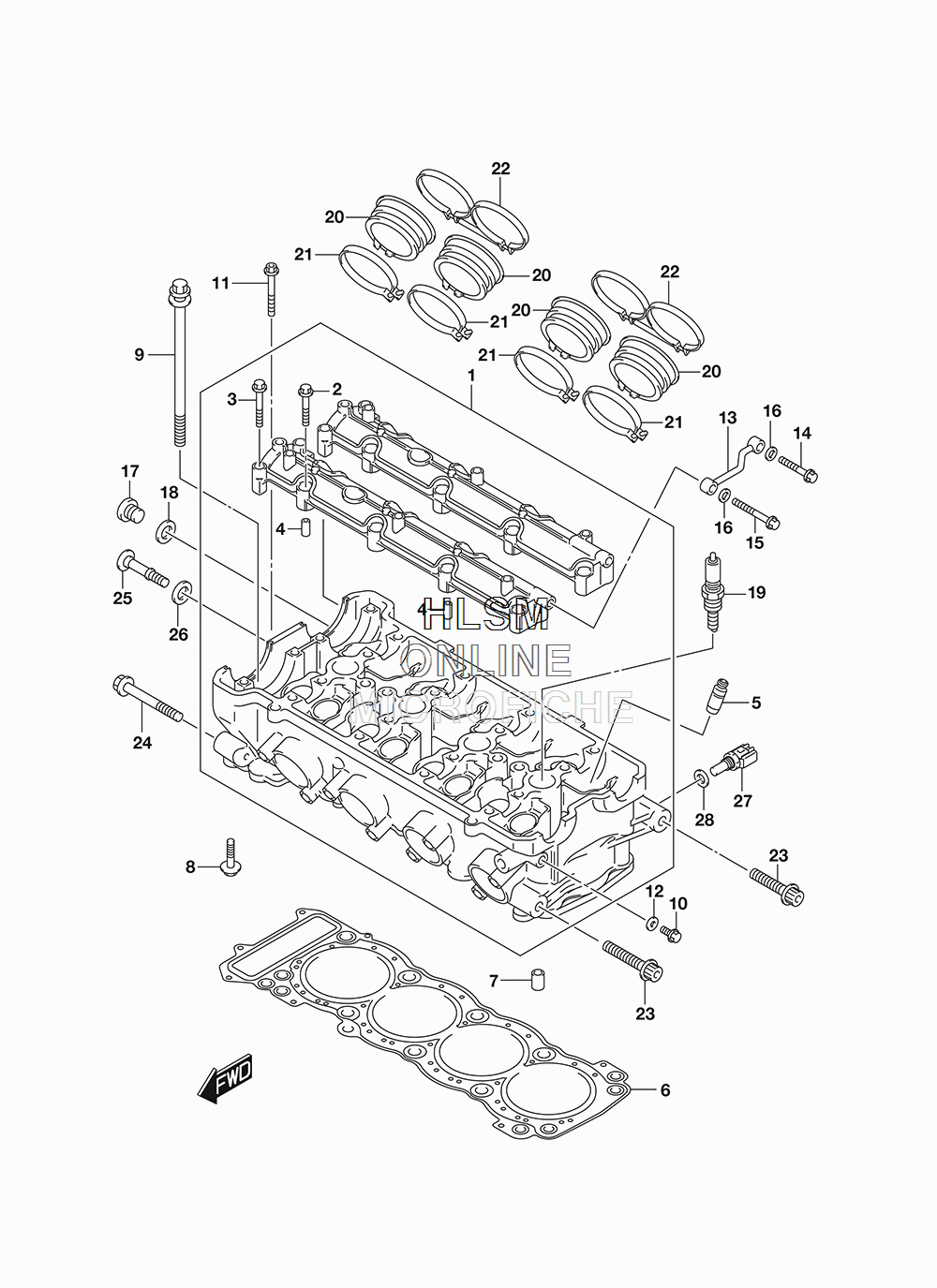

CYLINDER HEAD для Suzuki GSX1300RA HAYABUSA - 2018 года выпуска
-
№АртикулНазвание
-
111100-15H01 HEAD ASSY, CYLINDERHEAD ASSY, CYLINDER
-
209103-06266 ...BOLT (6X40)...BOLT (6X40)
-
309103-06293 ...BOLT (6X45)...BOLT (6X45)
-
409206-08007 ...PIN (6.2X8X16)...PIN (6.2X8X16)
-
511115-15H70 GUIDE, VALVE (OS:0.3) (OPT)GUIDE, VALVE (OS:0.3) (OPT)
-
611141-15H00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
704211-11169 PINPIN
-
801550-0630A BOLTBOLT
-
911117-15H00 BOLTBOLT
-
1001550-0612A BOLTBOLT
-
1107120-0655B BOLTBOLT
-
1209168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1311131-33E01 PIPE, OILPIPE, OIL
-
1401550-0635A BOLTBOLT
-
1501550-0645A BOLTBOLT
-
1608322-0106A WASHERWASHER
-
1709248-16012 PLUG (16X8)PLUG (16X8)
-
1809168-16009 GASKET (16X22X0.8)GASKET (16X22X0.8)
-
19-109482-00558 SPARK PLUG (CR9EIA-9) (NGK)SPARK PLUG (CR9EIA-9) (NGK)
-
19-209482-00557 SPARK PLUG (IU27D) (DENSO)SPARK PLUG (IU27D) (DENSO)
-
19-309482-00556 SPARK PLUG (CR8EIA-9) (NGK) (OPT)SPARK PLUG (CR8EIA-9) (NGK) (OPT)
-
19-409482-00560 SPARK PLUG (CR10EIA-9) (NGK) (OPT)SPARK PLUG (CR10EIA-9) (NGK) (OPT)
-
19-509482-00555 SPARK PLUG (IU24D) (DENSO) (OPT)SPARK PLUG (IU24D) (DENSO) (OPT)
-
19-609482-00559 SPARK PLUG (IU31D) (DENSO) (OPT)SPARK PLUG (IU31D) (DENSO) (OPT)
-
2013111-15H00 PIPE, INTAKEPIPE, INTAKE
-
2109402-60208 CLAMPCLAMP
-
2213170-15H10 CLAMPCLAMP
-
2309106-10069 BOLT (10X45)BOLT (10X45)
-
2409106-10084 BOLT (10X60)BOLT (10X60)
-
2511161-33E00 BOLT, CYL HEAD SIDE FACEBOLT, CYL HEAD SIDE FACE
-
2611191-13E00 WASHERWASHER
-
2713650-49X00 SENSOR, WATER TEMPERATURESENSOR, WATER TEMPERATURE
-
2809168-12017 GASKET (12X17X1)GASKET (12X17X1)
