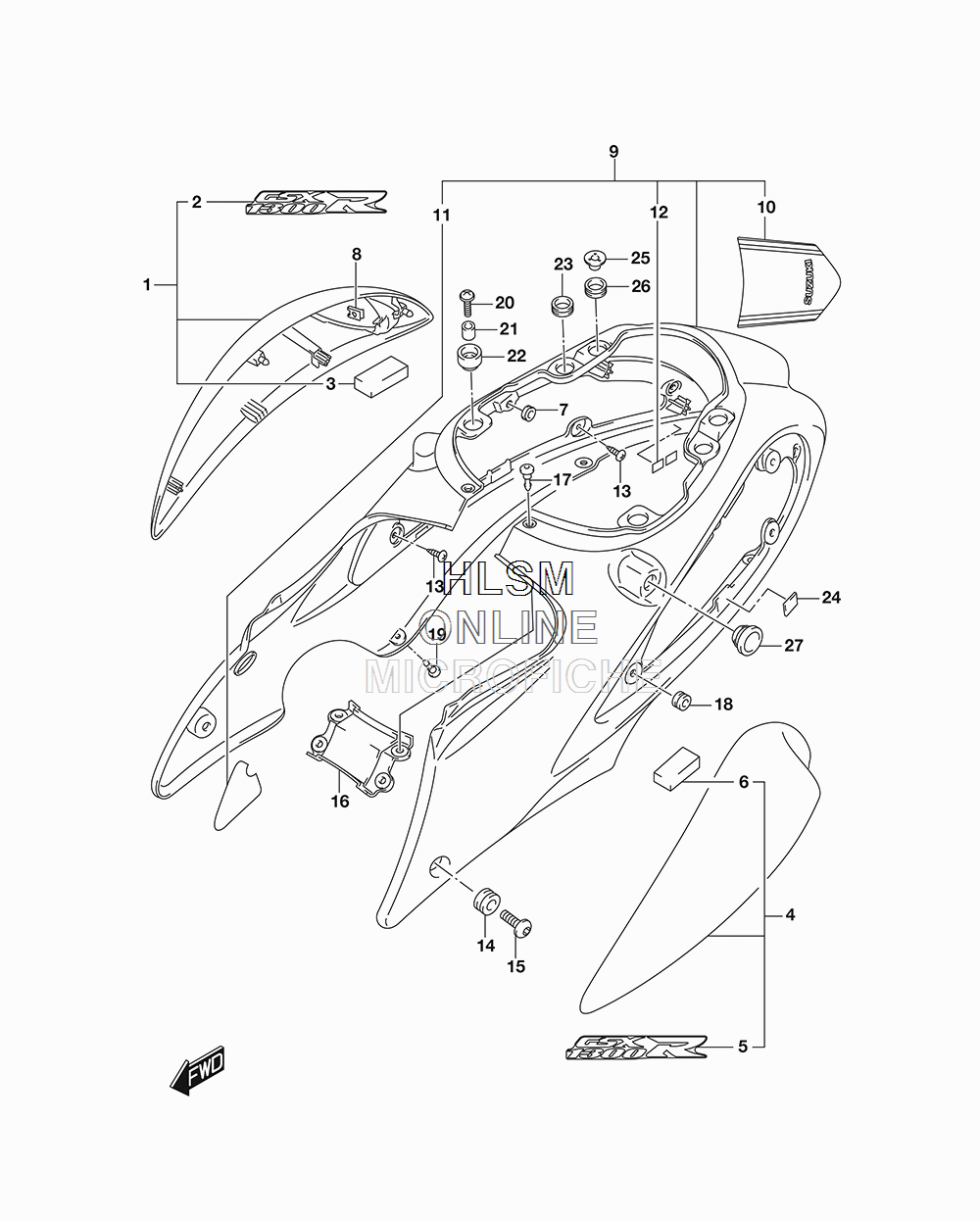

SIDE COVER для Suzuki GSX1300RA HAYABUSA - 2018 года выпуска

  • №
    Артикул
    Название
  • 1-1
    47110-15H01-YVB COVER, FRAME (RH) (YVB - BLACK FOR YVB - BLACK)
    COVER, FRAME (RH) (YVB - BLACK FOR YVB - BLACK)
  • 1-2
    47110-15H01-YWW COVER, FRAME (RH) (WHITE FOR AGS - RED/WHITE)
    COVER, FRAME (RH) (WHITE FOR AGS - RED/WHITE)
  • 2-1
    68131-15H00-AJY ...EMBLEM, FRAME COVER (AJY - GRAY/RED/BLACK FOR COVER YVB FOR BIKE YVB - BLACK)
    ...EMBLEM, FRAME COVER (AJY - GRAY/RED/BLACK FOR COVER YVB FOR BIKE YVB - BLACK)
  • 2-2
    68131-15H00-AKC ...EMBLEM, FRAME COVER (AKC - BLACK/ORANGE/WHITE FOR COVER YWW FOR BIKE AGS - RED/WHITE)
    ...EMBLEM, FRAME COVER (AKC - BLACK/ORANGE/WHITE FOR COVER YWW FOR BIKE AGS - RED/WHITE)
  • 3
    47511-15H00 ...CUSHION
    ...CUSHION
  • 4-1
    47210-15H01-YVB COVER, FRAME (LH) (YVB - BLACK FOR YVB)
    COVER, FRAME (LH) (YVB - BLACK FOR YVB)
  • 4-2
    47210-15H01-YWW COVER, FRAME (LH) (YWW - WHITE FOR AGS)
    COVER, FRAME (LH) (YWW - WHITE FOR AGS)
  • 5-1
    68131-15H00-AJY ...EMBLEM, FRAME COVER (AJY - GRAY/RED/BLACK FOR YVB - BLACK)
    ...EMBLEM, FRAME COVER (AJY - GRAY/RED/BLACK FOR YVB - BLACK)
  • 5-2
    68131-15H00-AKC ...EMBLEM, FRAME COVER (AKC - BLACK/ORANGE/WHITE FOR YWW FOR BIKE AGS - RED/WHITE)
    ...EMBLEM, FRAME COVER (AKC - BLACK/ORANGE/WHITE FOR YWW FOR BIKE AGS - RED/WHITE)
  • 6
    47511-15H00 ...CUSHION
    ...CUSHION
  • 7
    09320-06016 CUSHION
    CUSHION
  • 8
    09148-04034 NUT
    NUT
  • 9-1
    47310-15H30-ATX COVER, FRAME CENTER (ATX - BLACK FOR YVB - BLACK)
    COVER, FRAME CENTER (ATX - BLACK FOR YVB - BLACK)
  • 9-2
    47310-15H30-AJX COVER, FRAME CENTER (AJX - WHITE FOR AGS - RED/WHITE)
    COVER, FRAME CENTER (AJX - WHITE FOR AGS - RED/WHITE)
  • 10-1
    68135-15H40-JBA ...TAPE, FRAME COVER CENTER (JBA - BLACK/ORANGE FOR COVER ATX FOR BIKE YVB - BLACK)
    ...TAPE, FRAME COVER CENTER (JBA - BLACK/ORANGE FOR COVER ATX FOR BIKE YVB - BLACK)
  • 10-2
    68135-15H40-AGS ...TAPE, FRAME COVER CENTER (AGS - RED/WHITE FOR COVER AJX FOR BIKE AGS - RED/WHITE)
    ...TAPE, FRAME COVER CENTER (AGS - RED/WHITE FOR COVER AJX FOR BIKE AGS - RED/WHITE)
  • 11
    47312-15H00 ...TAPE, CENTER
    ...TAPE, CENTER
  • 12
    45516-01H00 ...CUSHION
    ...CUSHION
  • 13
    09136-05062 SCREW (5X15)
    SCREW (5X15)
  • 14
    09320-09016 CUSHION
    CUSHION
  • 15
    09139-06190 BOLT (6X20)
    BOLT (6X20)
  • 16-1
    47411-15H00-YVB LID, CENTER (YVB - BLACK FOR YVB - BLACK)
    LID, CENTER (YVB - BLACK FOR YVB - BLACK)
  • 16-2
    47411-15H00-YWW LID, CENTER (YWW - WHITE FOR AGS - RED/WHITE)
    LID, CENTER (YWW - WHITE FOR AGS - RED/WHITE)
  • 17
    09409-06314-5PK CLIP (BLACK)
    CLIP (BLACK)
  • 18
    09320-09016 CUSHION
    CUSHION
  • 19
    09409-06329 CLIP
    CLIP
  • 20
    09136-06105 SCREW (6X20)
    SCREW (6X20)
  • 21
    09180-06288 SPACER (6.5X10X11)
    SPACER (6.5X10X11)
  • 22
    47115-16G00 CUSHION, UPPER FRONT
    CUSHION, UPPER FRONT
  • 23
    47191-24F00 CUSHION, UPPER CENTER
    CUSHION, UPPER CENTER
  • 24
    33651-37000 CUSHION (170X95) (CUT AS REQUIRED)
    CUSHION (170X95) (CUT AS REQUIRED)
  • 25
    47190-24F21 WASHER, UPPER REAR
    WASHER, UPPER REAR
  • 26
    47191-24F30 CUSHION, UPPER REAR
    CUSHION, UPPER REAR
  • 27
    47191-24F20 SPACER, SIDE CENTER
    SPACER, SIDE CENTER
