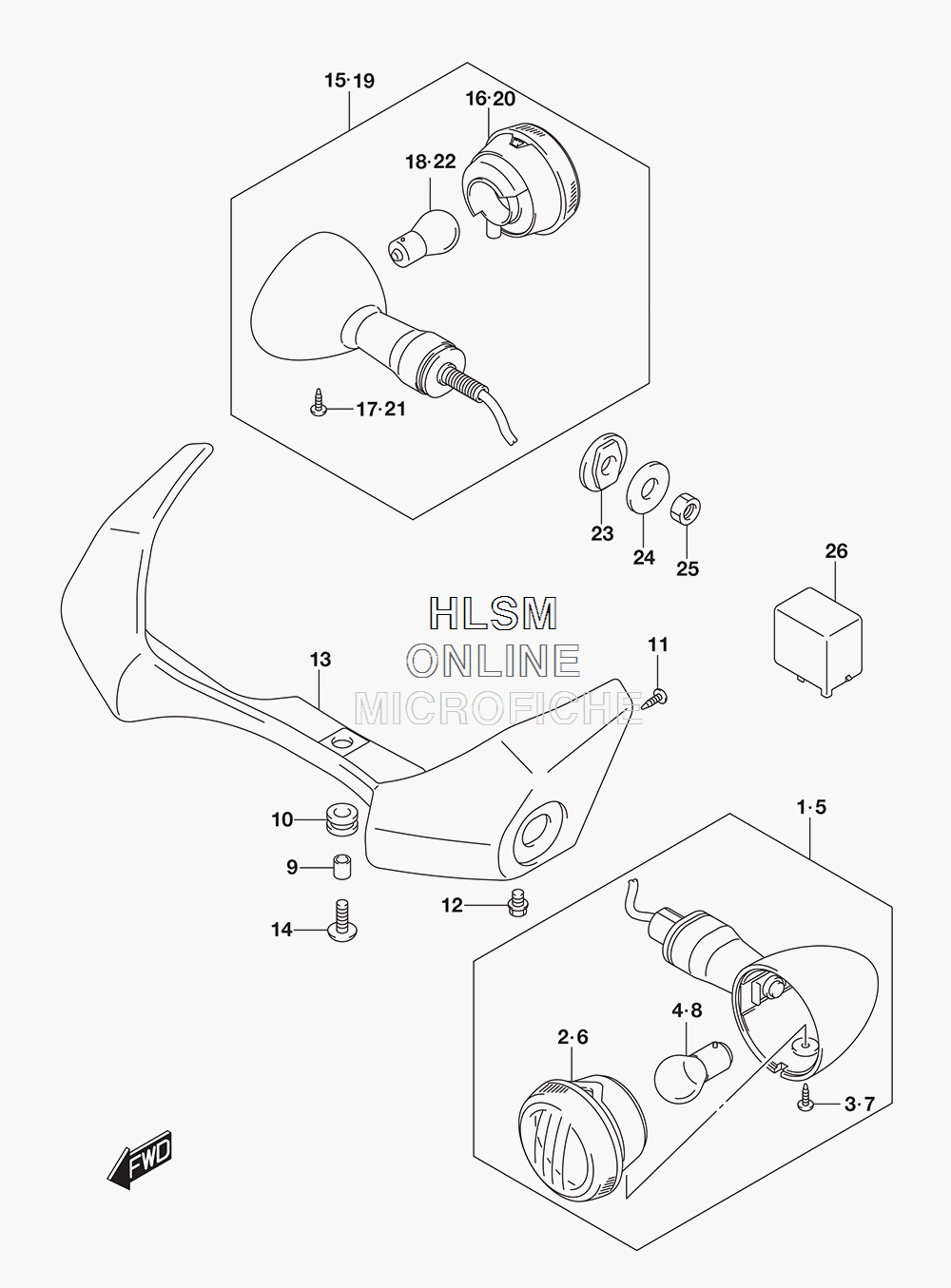

TURN SIGNAL ASSY. для Suzuki VZ800 M50 - 2017 года выпуска
-
№АртикулНазвание
-
135601-38AF0 LAMP ASSY, FRONT TURNSIGNAL RIGHTLAMP ASSY, FRONT TURNSIGNAL RIGHT
-
235610-38AA0 ...LENS...LENS
-
335623-38AA0 ...SCREW (4X10)...SCREW (4X10)
-
409471-12083 ...BULB (12V,21/5W)...BULB (12V,21/5W)
-
535602-38AF0 LAMP ASSY, FRONT TURNSIGNAL LEFTLAMP ASSY, FRONT TURNSIGNAL LEFT
-
635630-38AA0 ...LENS...LENS
-
735623-38AA0 ...SCREW (4X10)...SCREW (4X10)
-
809471-12083 ...BULB (12V,21/5W)...BULB (12V,21/5W)
-
909180-06350 SPACER (6.5X9X9.5)SPACER (6.5X9X9.5)
-
1009320-09016 CUSHIONCUSHION
-
1103541-0512A SCREWSCREW
-
1209103-06275 BOLT (6X8)BOLT (6X8)
-
1335641-39GB0 COVER, FRONT TURNSIGNALCOVER, FRONT TURNSIGNAL
-
1409139-06109 SCREW (6X16)SCREW (6X16)
-
1535603-38AG0 LAMP ASSY, REAR TURNSIGNAL (RH)LAMP ASSY, REAR TURNSIGNAL (RH)
-
1635630-38AE1 ...LENS...LENS
-
1735623-38AA0 ...SCREW (4X10)...SCREW (4X10)
-
1809471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
1935604-38AG0 LAMP ASSY, REAR TURNSIGNAL (LH)LAMP ASSY, REAR TURNSIGNAL (LH)
-
2035610-38AE1 ...LENS...LENS
-
2135623-38AA0 ...SCREW (4X10)...SCREW (4X10)
-
2209471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
2335695-17C00 SPACER, REAR TURNSIGNALSPACER, REAR TURNSIGNAL
-
2409160-10501 WASHER (10.5X30X2.3)WASHER (10.5X30X2.3)
-
2508310-0010A NUTNUT
-
2638610-03F00 RELAY ASSY, TURNSIGNALRELAY ASSY, TURNSIGNAL
