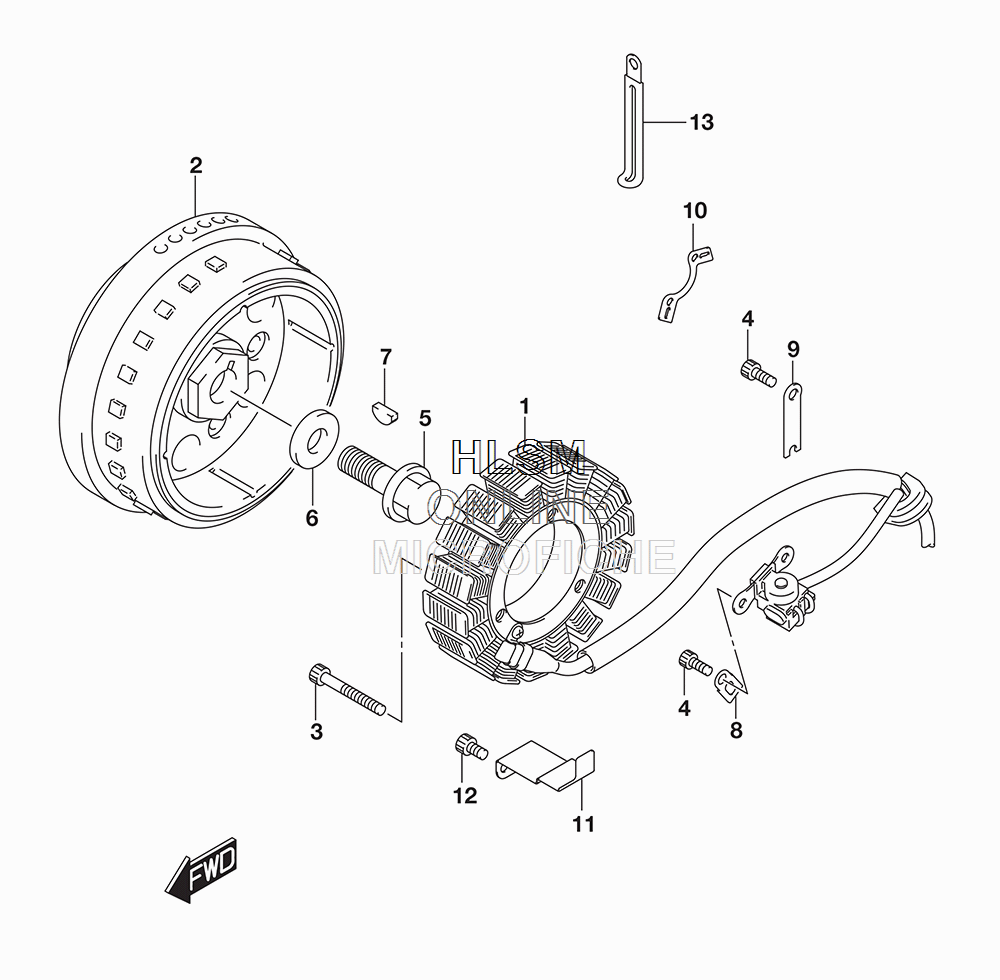

MAGNETO для Suzuki VZ800 M50 - 2017 года выпуска`
-
№АртикулНазвание
-
132101-41F20 STATOR ASSYSTATOR ASSY
-
232102-41F20 ROTOR ASSYROTOR ASSY
-
307130-0640A BOLTBOLT
-
407130-0510A BOLTBOLT
-
509103-14001 BOLT (14X43)BOLT (14X43)
-
609160-14021 WASHER (14X29X4)WASHER (14X29X4)
-
709420-05007 KEYKEY
-
831497-45000 CLAMP (NO.1)CLAMP (NO.1)
-
932371-38A10 CLAMP (NO.2)CLAMP (NO.2)
-
1032371-41F00 CLAMP (NO.5)CLAMP (NO.5)
-
1132371-45C00 CLAMP (NO.3)CLAMP (NO.3)
-
1207130-0610A BOLTBOLT
-
1309404-08419 CLAMP (L:80) (NO.4)CLAMP (L:80) (NO.4)
