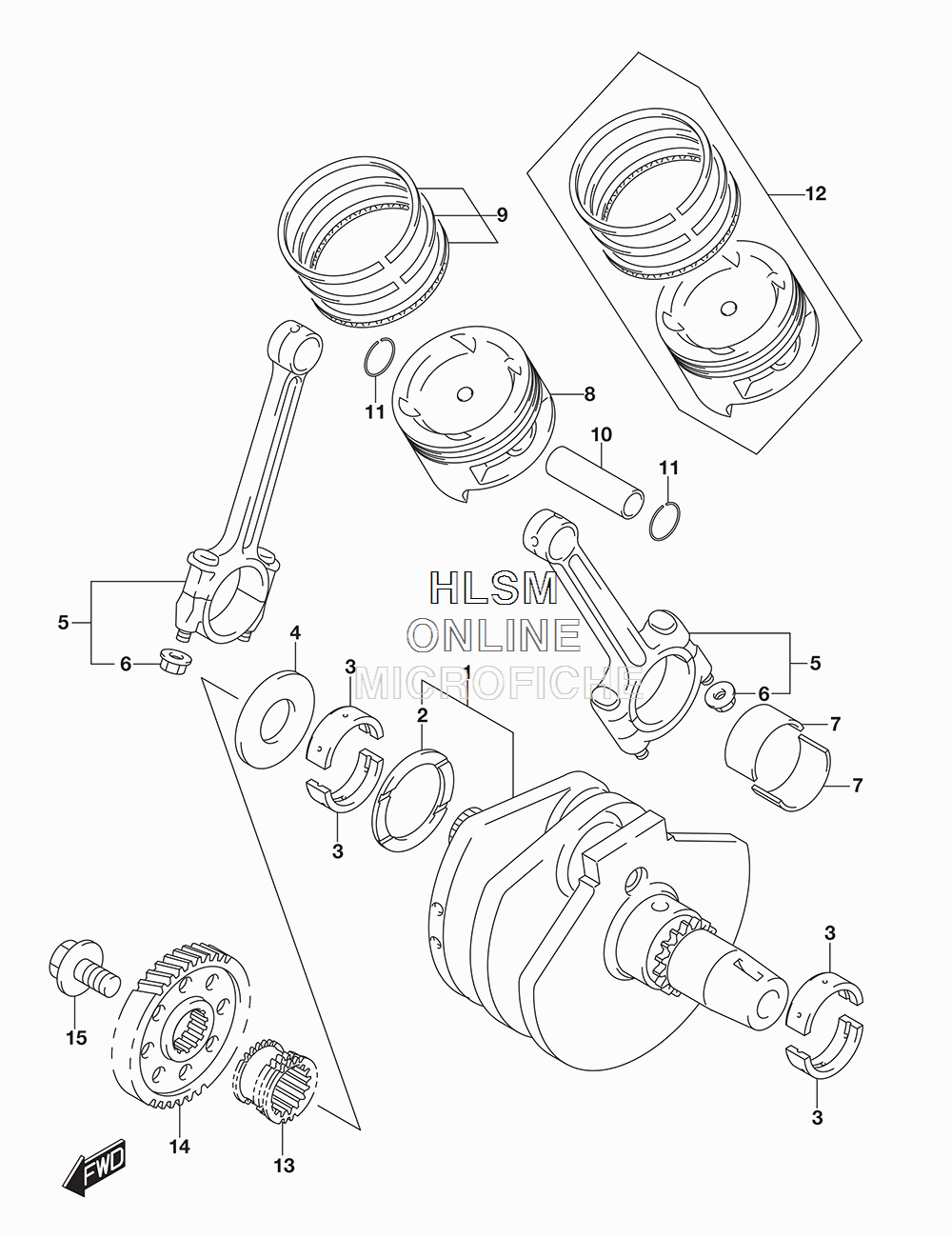

CRANKSHAFT W/ PISTON для Suzuki VZ800 M50 - 2017 года выпуска
-
№АртикулНазвание
-
112000-41830 CRANKSHAFT SETCRANKSHAFT SET
-
2-109160-48001 ...WASHER (48.1X64X1.94)...WASHER (48.1X64X1.94)
-
2-209160-48002 ...WASHER (48.1X64X1.96)...WASHER (48.1X64X1.96)
-
2-309160-48003 ...WASHER (48.1X64X1.99)...WASHER (48.1X64X1.99)
-
2-409160-48004 ...WASHER (48.1X64X2.01)...WASHER (48.1X64X2.01)
-
2-509160-48005 ...WASHER (48.1X64X2.04)...WASHER (48.1X64X2.04)
-
2-609160-48006 ...WASHER (48.1X64X2.06)...WASHER (48.1X64X2.06)
-
2-709160-48007 ...WASHER (48.1X64X2.09)...WASHER (48.1X64X2.09)
-
2-809160-48008 ...WASHER (48.1X64X2.11)...WASHER (48.1X64X2.11)
-
2-909160-48009 ...WASHER (48.1X64X2.14)...WASHER (48.1X64X2.14)
-
2-1009160-48010 ...WASHER (48.1X64X2.16)...WASHER (48.1X64X2.16)
-
3-112229-39G00-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
3-212229-39G00-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
3-312229-39G00-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
412652-38A00 WASHER, CRANK THRUSTWASHER, CRANK THRUST
-
512160-45C30 ROD ASSY, CONNECTINGROD ASSY, CONNECTING
-
609159-09001 ...NUT...NUT
-
7-112164-38E00-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
7-212164-38E00-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
7-312164-38E00-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
7-412164-38E00-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
7-512164-38E00-0E0 BEARING, CRANK PIN (BLUE)BEARING, CRANK PIN (BLUE)
-
812111-41F10-0F0 PISTON (YELLOW)PISTON (YELLOW)
-
912140-41F00 RING SET, PISTONRING SET, PISTON
-
1012151-24A00 PIN, PISTONPIN, PISTON
-
1109381-20004 SNAP RINGSNAP RING
-
1212100-41F10-050 PISTON SET (OS:0.5) (OPT)PISTON SET (OS:0.5) (OPT)
-
1312731-38A00 SPROCKET, CAM CHAIN DRIVE RH (NT:21)SPROCKET, CAM CHAIN DRIVE RH (NT:21)
-
1421111-38A00 GEAR, PRIMARY DRIVE (NT:42)GEAR, PRIMARY DRIVE (NT:42)
-
1509103-12013 BOLT (12X28)BOLT (12X28)
