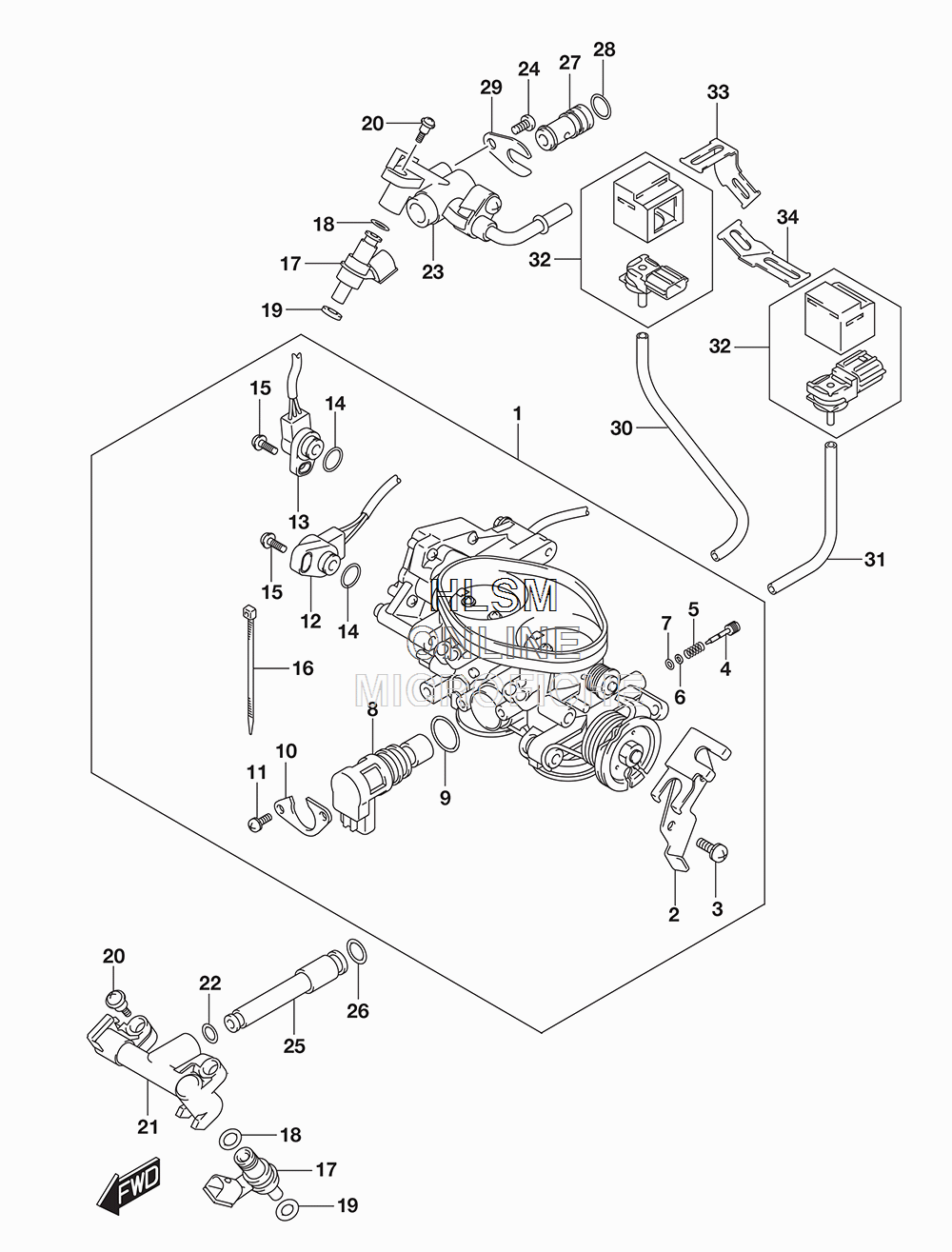

CARBURETOR - THROTTLE BODY (CANADA) для Suzuki VZ800 M50 - 2017 года выпуска

№

Артикул

Название
1

13401-41F22 BODY, THROTTLE

BODY, THROTTLE
2

13565-41F20 ...PLATE, STAY

...PLATE, STAY
3

13601-21H00 ...SCREW

...SCREW
4

13269-18G00 ...SCREW

...SCREW
5

13271-43E00 ...SPRING

...SPRING
6

13291-26E00 ...WASHER

...WASHER
7

13295-26E00 ...O RING

...O RING
8

18117-15H12 ...VALVE ASSY, ISC

...VALVE ASSY, ISC
9

18119-05H00 ...O RING

...O RING
10

13428-15H00 ...PLATE, ISC VALVE

...PLATE, ISC VALVE
11

13605-15H00 ...SCREW

...SCREW
12

13580-40F21 ...SENSOR ASSY, MAIN

...SENSOR ASSY, MAIN
13

13580-41F01 ...SENSOR ASSY, SUB

...SENSOR ASSY, SUB
14

13575-40F00 ...O RING

...O RING
15

13605-40F00 ...SCREW

...SCREW
16

09407-14407 ...CLAMP (L:145)

...CLAMP (L:145)
17

15710-26GB0 INJECTOR ASSY

INJECTOR ASSY
18

15721-21H00 O RING

O RING
19

15722-21H00 RING, SEAL

RING, SEAL
20

13602-34F50 SCREW

SCREW
21

13473-41FA0 PIPE SET, FUEL FR

PIPE SET, FUEL FR
22

15721-24F00 O RING

O RING
23

13473-41FB0 PIPE SET, FUEL RR

PIPE SET, FUEL RR
24

13602-10F10 SCREW

SCREW
25

13473-41FC0 JOINT

JOINT
26

15721-10G00 O RING

O RING
27

13474-41F20 PLUG, STRAIGHT

PLUG, STRAIGHT
28

15721-41F20 O RING

O RING
29

13475-41F20 PLATE

PLATE
30

13683-41FA0 HOSE

HOSE
31

13683-41FD0 TUBE, RUBBER

TUBE, RUBBER
32

18590-32G00 SENSOR, AIR PRESSURE

SENSOR, AIR PRESSURE
33

18598-41F00 BRACKET, BOOST SENSOR FRONT

BRACKET, BOOST SENSOR FRONT
34

18599-39G00 BRACKET, BOOST SENSOR REAR

BRACKET, BOOST SENSOR REAR
