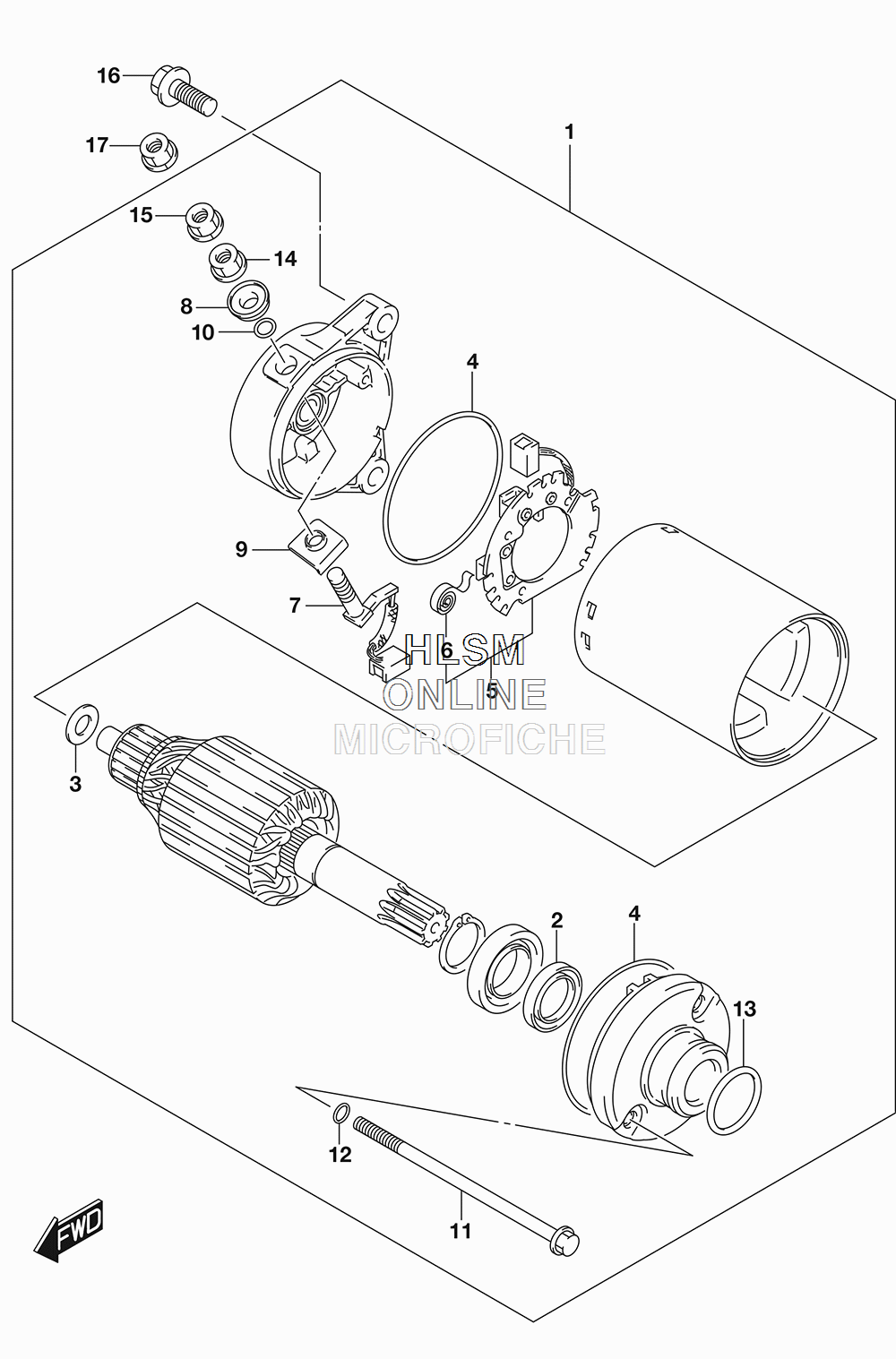

STARTING MOTOR для Suzuki TU 250X - 2017 года выпуска`
-
№АртикулНазвание
-
131100-38300-H17 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231153-49210 ...OIL SEAL...OIL SEAL
-
331170-43400 ...SHIM SET...SHIM SET
-
431264-44110 ...O-RING...O-RING
-
531132-27A01 ...HOLDER, BRUSH...HOLDER, BRUSH
-
631135-65010 ......SPRING......SPRING
-
731130-38300 ...BRUSH, PLUS...BRUSH, PLUS
-
831172-38300 ...BUSHING...BUSHING
-
931171-38300 ...BUSH, B...BUSH, B
-
1031143-38300 ...O-RING...O-RING
-
1131281-87402 ...BOLT...BOLT
-
1231156-38300 ...O-RING...O-RING
-
1309280-24003 ...O RING (D:3,ID:24.5)...O RING (D:3,ID:24.5)
-
1408310-00067 ...NUT...NUT
-
1508361-3506A ...NUT...NUT
-
1601547-0625A BOLTBOLT
-
1708361-3506A NUTNUT
