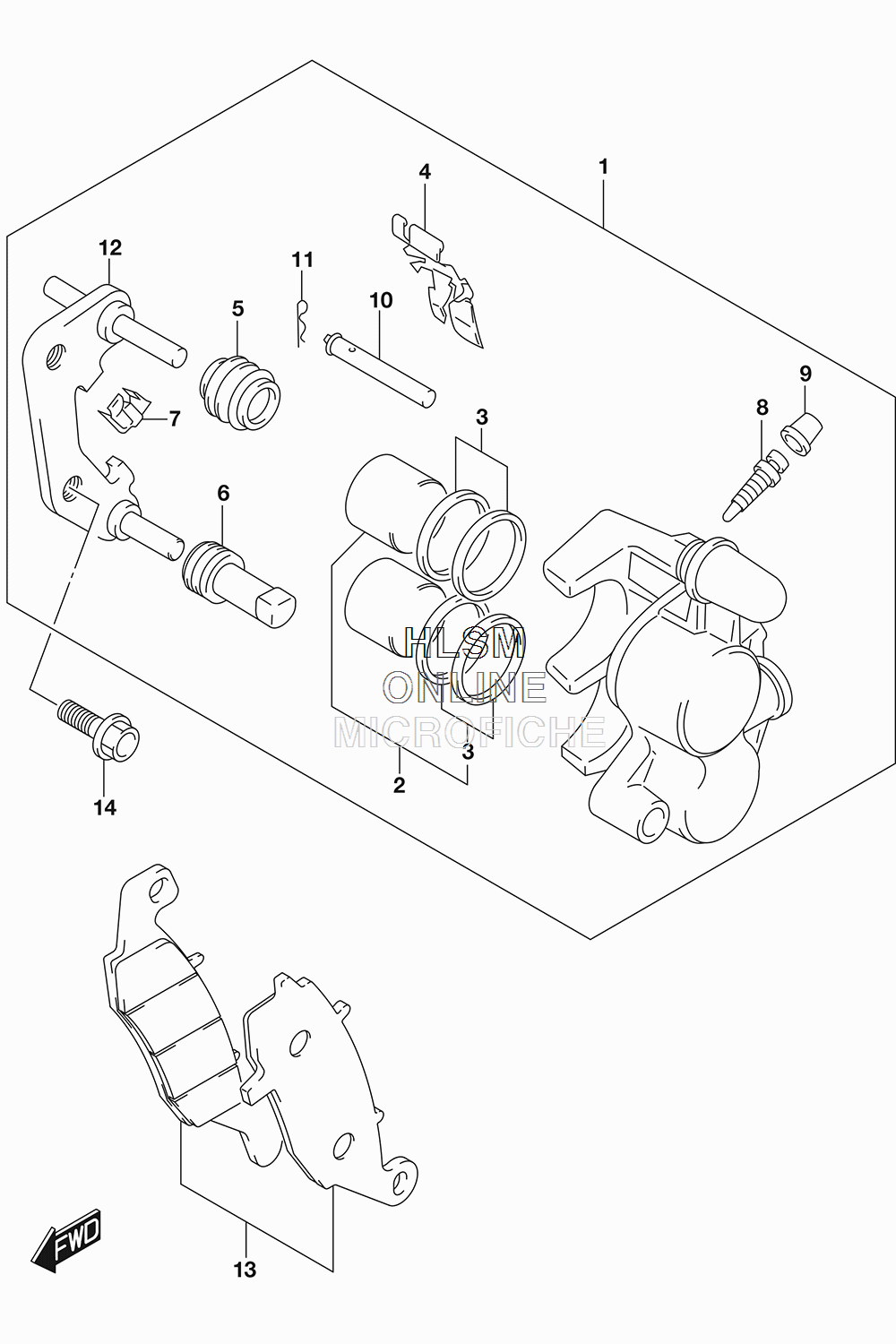

BRAKE - FRONT CALIPER для Suzuki TU 250X - 2017 года выпуска`
-
№АртикулНазвание
-
159300-33D81-999 CALIPER ASSY, FRONTCALIPER ASSY, FRONT
-
259300-33831 ...PISTON SET...PISTON SET
-
359300-33841 ......SEAL SET, PISTON......SEAL SET, PISTON
-
459315-33D00 ...SPRING, PAD...SPRING, PAD
-
559112-44B00 ...BOOT, AXLE...BOOT, AXLE
-
659313-36500 ...INSULATOR, AXLE...INSULATOR, AXLE
-
759116-33D00 ...GUIDE, PAD...GUIDE, PAD
-
859121-18410 ...BLEEDER...BLEEDER
-
955156-66310 ...CAP, BLEEDER PLUG...CAP, BLEEDER PLUG
-
1059141-44B01 ...PIN, PAD...PIN, PAD
-
1169142-45000 ...CLIP, PAD PIN...CLIP, PAD PIN
-
1259350-33D01 ...CARRIER, CALIPER...CARRIER, CALIPER
-
1359301-33840 PAD SETPAD SET
-
1401550-1025B BOLTBOLT
