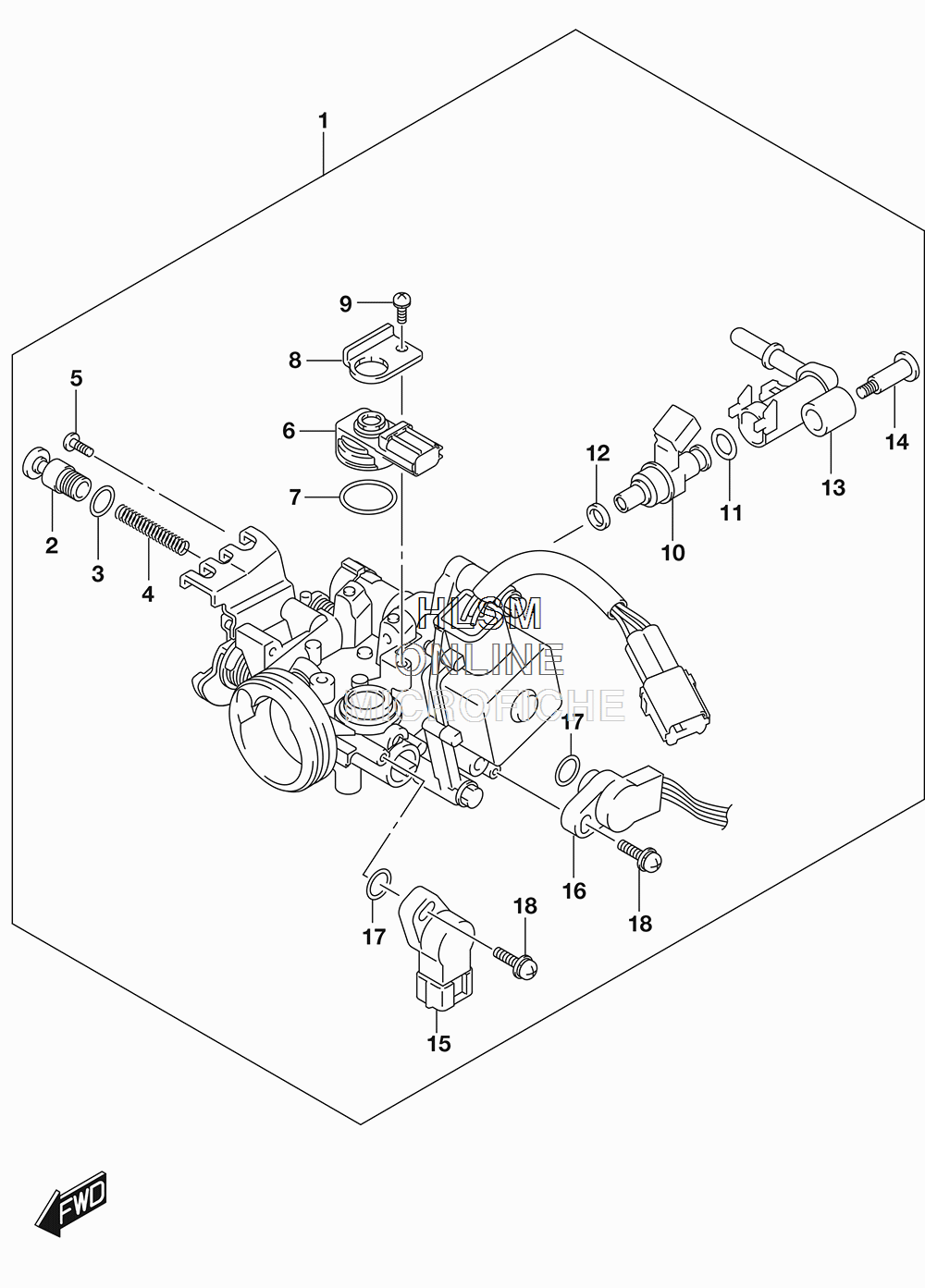

CARBURETOR - THROTTLE BODY ASSY. для Suzuki TU 250X - 2017 года выпуска

№

Артикул

Название
1

13400-26GA3 BODY ASSY, THROTTLE

BODY ASSY, THROTTLE
2

13279-26GA0 ...SCREW

...SCREW
3

13295-14G00 ...O RING

...O RING
4

13271-26GA0 ...SPRING

...SPRING
5

13601-14G00 ...SCREW

...SCREW
6

15620-05H00 ...SENSOR, MAP

...SENSOR, MAP
7

15621-05H00 ...O RING

...O RING
8

15622-33H00 ...PLATE, MAP SENSOR

...PLATE, MAP SENSOR
9

02112-14087 ...SCREW

...SCREW
10

15710-26GA0 ...INJECTOR ASSY

...INJECTOR ASSY
11

15721-21H00 ...O RING

...O RING
12

15722-21H00 ...RING, SEAL

...RING, SEAL
13

13471-26GA0 ...PIPE, FUEL

...PIPE, FUEL
14

13601-35F00 ...SCREW

...SCREW
15

13580-33H01 ...SENSOR, THROTTLE

...SENSOR, THROTTLE
16

13580-40F31 ...SENSOR ASSY, THROTTLE NO.1

...SENSOR ASSY, THROTTLE NO.1
17

13575-40F00 ...O RING

...O RING
18

13605-40F00 ...SCREW

...SCREW
