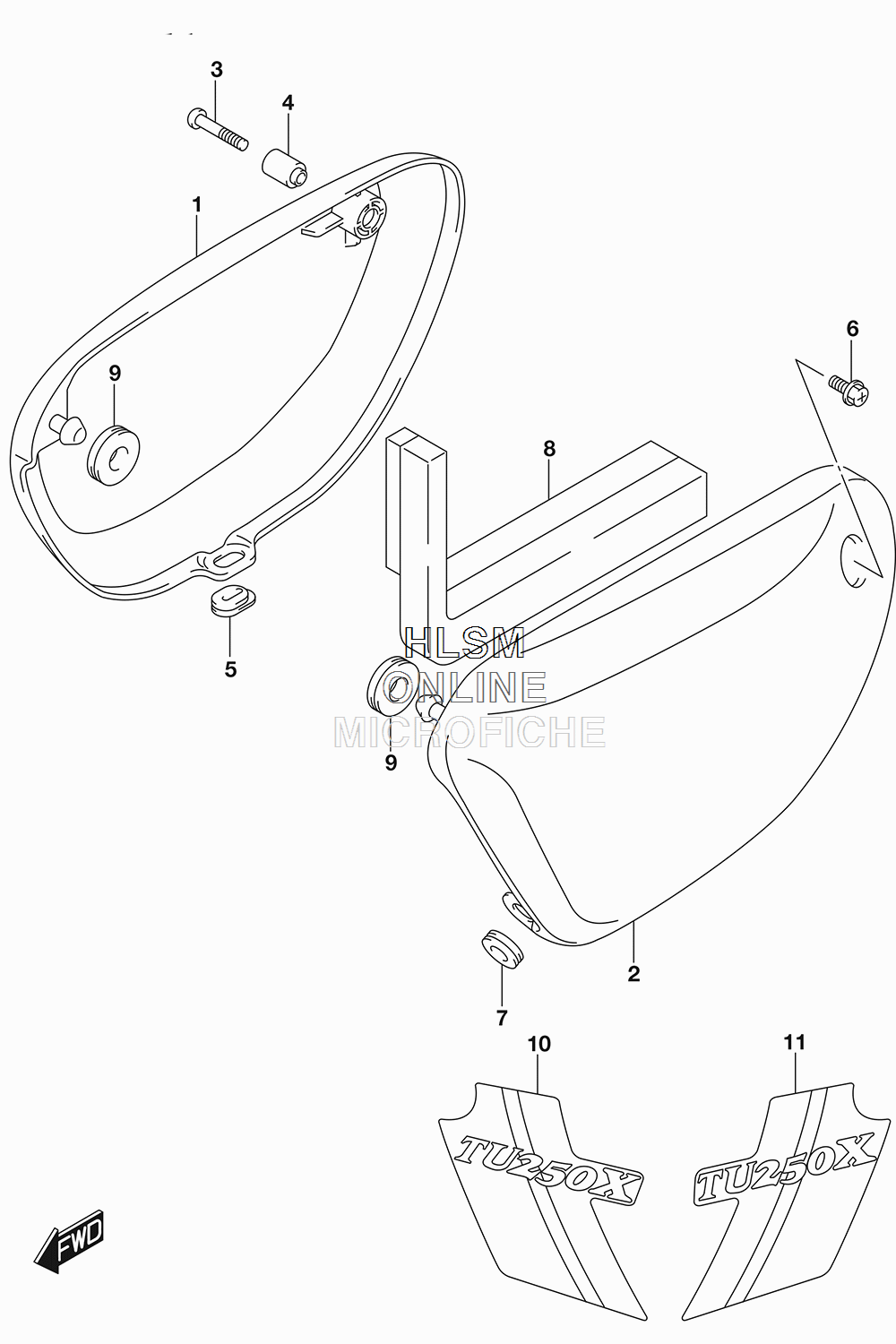

SIDE COVER для Suzuki TU 250X - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    47111-26G10-YVB COVER, FRAME (RH) (YVB - BLACK)
    COVER, FRAME (RH) (YVB - BLACK)
  • 2
    47211-26G11-YVB COVER, FRAME (LH) (YVB - BLACK)
    COVER, FRAME (LH) (YVB - BLACK)
  • 3
    09123-06028 SCREW (6X35.5) (RH)
    SCREW (6X35.5) (RH)
  • 4
    09180-06340 SPACER (6.2X9X23.5) (RH)
    SPACER (6.2X9X23.5) (RH)
  • 5
    09320-03004 CUSHION (RH)
    CUSHION (RH)
  • 6
    09111-06095 BOLT (6X16.5) (LH)
    BOLT (6X16.5) (LH)
  • 7
    09320-08013 CUSHION (LH)
    CUSHION (LH)
  • 8
    47160-26G00 CUSHION, FRAME COVER
    CUSHION, FRAME COVER
  • 9
    09320-08018 CUSHION
    CUSHION
  • 10
    68135-26G00-BEA TAPE, FRAME COVER (RH) (BEA - GRAY/WHITE/BLACK)
    TAPE, FRAME COVER (RH) (BEA - GRAY/WHITE/BLACK)
  • 11
    68145-26G00-BEA TAPE, FRAME COVER (LH) (BEA - GRAY/WHITE/BLACK)
    TAPE, FRAME COVER (LH) (BEA - GRAY/WHITE/BLACK)
