GASKET KIT для Suzuki DL1000A L6 V-STROM 1000 ADVENTURE W/ABS - 2016 года выпуска

  • №
    Артикул
    Название
  • 1

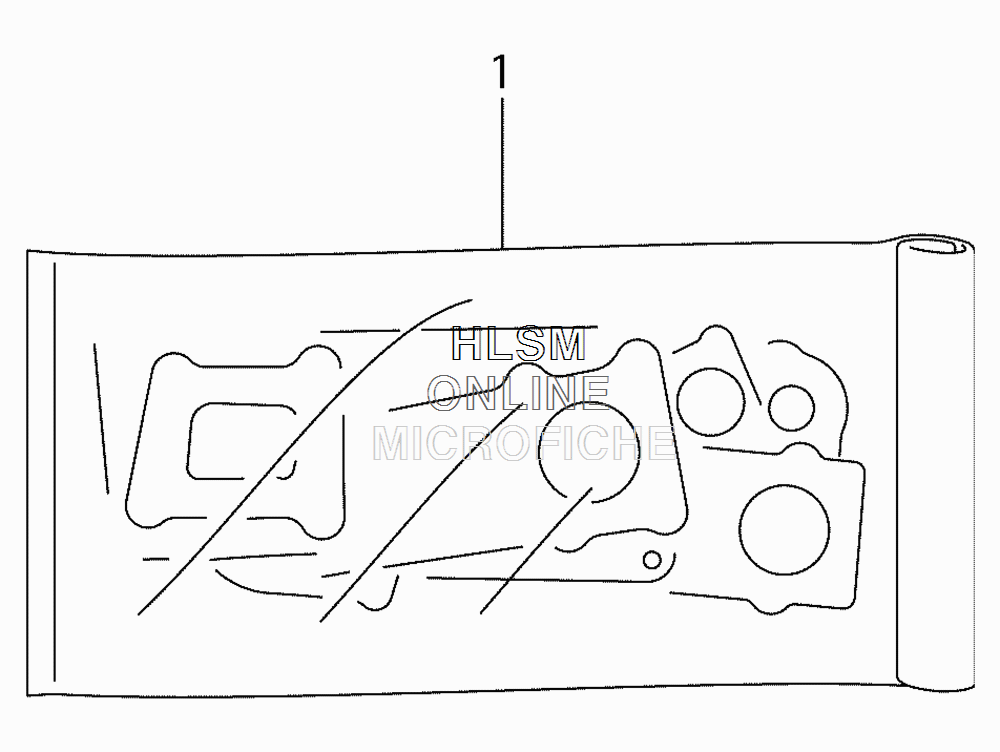

    11401-31820 GASKET SET (OPT)
    GASKET SET (OPT)
  • 2
    11141-31J00 ...GASKET, CYLINDER HEAD (NOT ILLUSTRATED)
    ...GASKET, CYLINDER HEAD (NOT ILLUSTRATED)
  • 3
    11173-02F00 ...GASKET, CYLINDER HEAD COVER NO.1 (NOT ILLUSTRATED)
    ...GASKET, CYLINDER HEAD COVER NO.1 (NOT ILLUSTRATED)
  • 4
    11178-17E00 ...GASKET, CYLINDER HEAD COVER NO.2 (NOT ILLUSTRATED)
    ...GASKET, CYLINDER HEAD COVER NO.2 (NOT ILLUSTRATED)
  • 5
    11241-31J00 ...GASKET, CYLINDER FRONT (NOT ILLUSTRATED)
    ...GASKET, CYLINDER FRONT (NOT ILLUSTRATED)
  • 6
    11242-31J00 ...GASKET, CYLINDER REAR (NOT ILLUSTRATED)
    ...GASKET, CYLINDER REAR (NOT ILLUSTRATED)
  • 7
    11482-06G10 ...GASKET, CLUTCH COVER (NOT ILLUSTRATED)
    ...GASKET, CLUTCH COVER (NOT ILLUSTRATED)
  • 8
    11483-02F10 ...GASKET, MAGNETO COVER (NOT ILLUSTRATED)
    ...GASKET, MAGNETO COVER (NOT ILLUSTRATED)
  • 9
    11485-02F10 ...GASKET, GEAR SHIFT COVER (NOT ILLUSTRATED)
    ...GASKET, GEAR SHIFT COVER (NOT ILLUSTRATED)
  • 10
    12837-19B10 ...GASKET, TENSIONER ADJUSTER (NOT ILLUSTRATED)
    ...GASKET, TENSIONER ADJUSTER (NOT ILLUSTRATED)
  • 11
    12837-24A10 ...GASKET, TENSIONER ADJUSTER (NOT ILLUSTRATED)
    ...GASKET, TENSIONER ADJUSTER (NOT ILLUSTRATED)
  • 12
    14181-31D00 ...GASKET, EXHAUST PIPE (NOT ILLUSTRATED)
    ...GASKET, EXHAUST PIPE (NOT ILLUSTRATED)
  • 13
    14771-42F40 ...CONNECTOR, EXHAUST (NOT ILLUSTRATED)
    ...CONNECTOR, EXHAUST (NOT ILLUSTRATED)
  • 14
    15201-35F00 ...O RING, FUEL PUMP (NOT ILLUSTRATED)
    ...O RING, FUEL PUMP (NOT ILLUSTRATED)
  • 15
    09168-14002 ...GASKET (13.8X18.8X4.8) (NOT ILLUSTRATED)
    ...GASKET (13.8X18.8X4.8) (NOT ILLUSTRATED)
  • 16
    09280-33004 ...O RING (D:3.1,ID:32.7) (NOT ILLUSTRATED)
    ...O RING (D:3.1,ID:32.7) (NOT ILLUSTRATED)
  • 17
    09280-55005 ...O RING (D:2.4,ID:55.6) (NOT ILLUSTRATED)
    ...O RING (D:2.4,ID:55.6) (NOT ILLUSTRATED)
  • 18
    17435-02F00 ...O RING (NOT ILLUSTRATED)
    ...O RING (NOT ILLUSTRATED)
