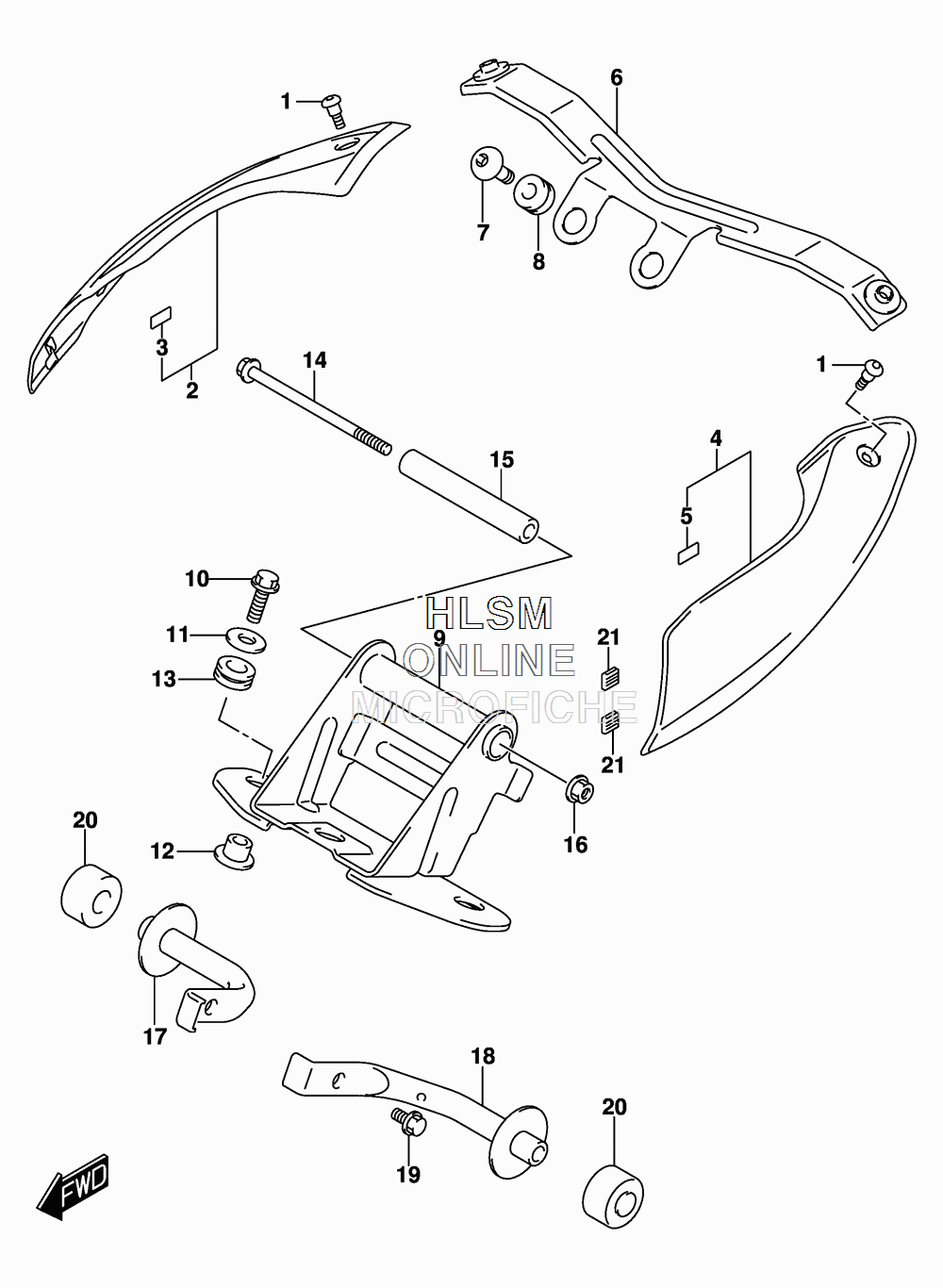

COVER/BRACKET (FRONT) для Suzuki DL1000A L6 V-STROM 1000 ADVENTURE W/ABS - 2016 года выпуска
-
№АртикулНазвание
-
109139-06197 SCREW (6X16)SCREW (6X16)
-
294420-31J00 COVER, SIDE REAR RHCOVER, SIDE REAR RH
-
394633-31J00 ...CUSHION, COVER SIDE...CUSHION, COVER SIDE
-
494430-31J00 COVER, SIDE REAR LHCOVER, SIDE REAR LH
-
594633-31J00 ...CUSHION, COVER SIDE...CUSHION, COVER SIDE
-
644160-31J00 BRACKET, COVERBRACKET, COVER
-
709139-06190 BOLT (6X20)BOLT (6X20)
-
844164-31J00 CUSHION, COVERCUSHION, COVER
-
944520-31J00 BRACKET, FRONTBRACKET, FRONT
-
1009139-06192 SCREW (6X25)SCREW (6X25)
-
1109160-06012 WASHER (6.5X22X1.6)WASHER (6.5X22X1.6)
-
1244512-16G00 SPACER, FUEL TANK FRSPACER, FUEL TANK FR
-
1344511-16G00 CUSHIONCUSHION
-
1401550-0695B BOLTBOLT
-
1544561-35F00 SPACERSPACER
-
1608319-3106B NUTNUT
-
1744560-31J00 BRACKET, SIDE RHBRACKET, SIDE RH
-
1844560-31J00 BRACKET, SIDE LHBRACKET, SIDE LH
-
1901550-0612B BOLTBOLT
-
2044543-31J00 CUSHION, FRONT SIDE BRACKETCUSHION, FRONT SIDE BRACKET
-
2114795-10FA0 GROMMETGROMMET
