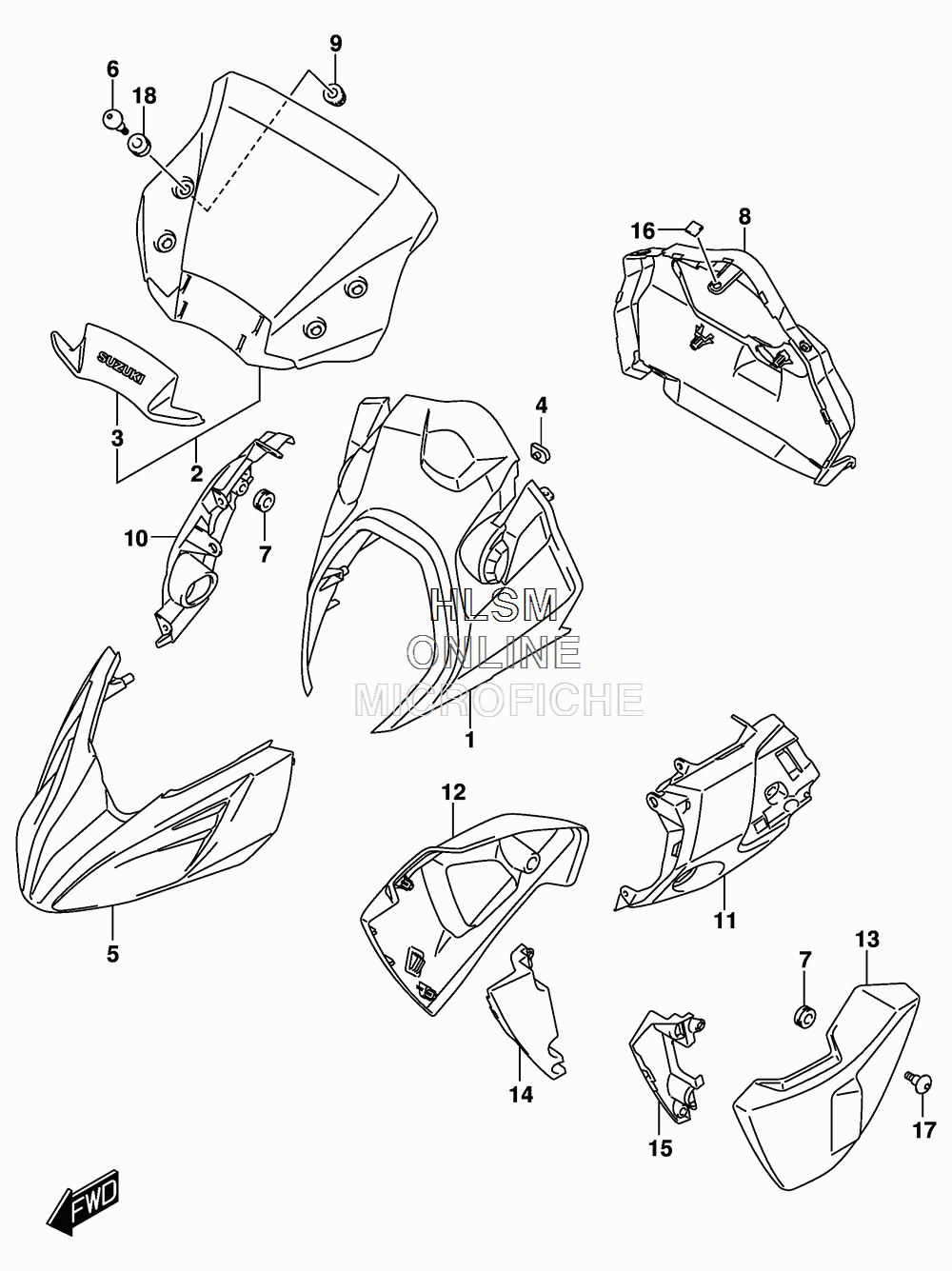

COWLING BODY для Suzuki DL1000A L6 V-STROM 1000 ADVENTURE W/ABS - 2016 года выпуска
-
№АртикулНазвание
-
194411-31J00-YKV COWLING, BODY (BLACK)COWLING, BODY (BLACK)
-
248410-31J01-291 WINDSCREEN (BLACK)WINDSCREEN (BLACK)
-
348412-31J00-291 ...COVER, WINDSCREEN (BLACK)...COVER, WINDSCREEN (BLACK)
-
409148-06020 NUTNUT
-
594412-31J00-PGZ COWLING, BODY LOWER (GRAY)COWLING, BODY LOWER (GRAY)
-
594412-31J00-YMD COWLING, BODY LOWER (SILVER)COWLING, BODY LOWER (SILVER)
-
594412-31J00-YVB COWLING, BODY LOWER (BLACK)COWLING, BODY LOWER (BLACK)
-
594412-31J00-YYG COWLING, BODY LOWER (RED)COWLING, BODY LOWER (RED)
-
609139-06126 SCREW (6X20)SCREW (6X20)
-
709320-09016 CUSHIONCUSHION
-
894631-31J00-291 PANEL, METER (BLACK)PANEL, METER (BLACK)
-
948414-31J00 CAP, WINDSCREEN SCREWCAP, WINDSCREEN SCREW
-
1094413-31J00-291 COVER, SIDE FR RH (BLACK)COVER, SIDE FR RH (BLACK)
-
1194414-31J00-291 COVER, SIDE FR LH (BLACK)COVER, SIDE FR LH (BLACK)
-
1294441-31J00-291 COWLING, SIDE LOWER RH (BLACK)COWLING, SIDE LOWER RH (BLACK)
-
1394451-31J00-291 COWLING, SIDE LOWER LH (BLACK)COWLING, SIDE LOWER LH (BLACK)
-
1494461-31J00 COVER, SIDE COWL INNER RHCOVER, SIDE COWL INNER RH
-
1594462-31J00 COVER, SIDE COWL INNER LHCOVER, SIDE COWL INNER LH
-
1644534-24F00 CUSHIONCUSHION
-
1747911-31J00 SCREWSCREW
-
1809320-09016 CUSHIONCUSHION
