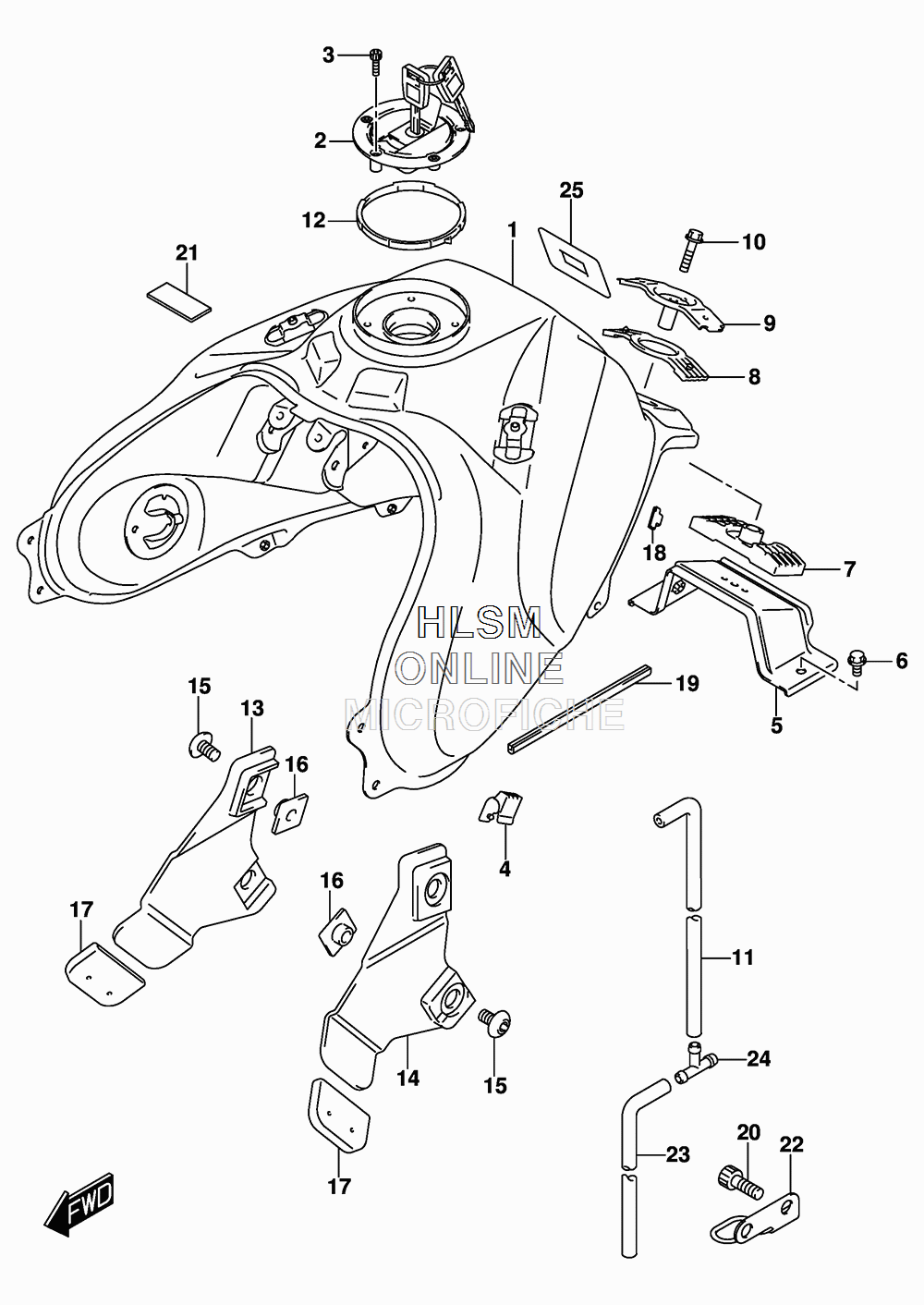

FUEL TANK (CALIF) для Suzuki DL1000A L6 V-STROM 1000 ADVENTURE W/ABS - 2016 года выпуска
-
№АртикулНазвание
-
144100-31J21-PGZ TANK, FUEL (GRAY)TANK, FUEL (GRAY)
-
144100-31J21-YMD TANK, FUEL (SILVER)TANK, FUEL (SILVER)
-
144100-31J21-YVB TANK, FUEL (BLACK)TANK, FUEL (BLACK)
-
144100-31J21-YYG TANK, FUEL (RED)TANK, FUEL (RED)
-
244200-16870 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
344244-11J00 BOLTBOLT
-
444541-31J00 CUSHION, SIDECUSHION, SIDE
-
544550-31J00 BRACKET, REAR LOWERBRACKET, REAR LOWER
-
601550-0816A BOLTBOLT
-
744545-06G00 CUSHION, LOWERCUSHION, LOWER
-
844542-06G00 CUSHION, UPPERCUSHION, UPPER
-
944530-06G00 BRACKET, UPPERBRACKET, UPPER
-
1001550-0835A BOLTBOLT
-
1144423-31J00 HOSE, WATER DRAINHOSE, WATER DRAIN
-
1268241-31J00 MOLDING, FUEL TANK COVERMOLDING, FUEL TANK COVER
-
1344179-31J00 BRACKET, FUEL TANK COVER SIDE RHBRACKET, FUEL TANK COVER SIDE RH
-
1444189-31J00 BRACKET, FUEL TANK COVER SIDE LHBRACKET, FUEL TANK COVER SIDE LH
-
1509139-06181 SCREW (6X10)SCREW (6X10)
-
1644523-47H00 NUT(M6)NUT(M6)
-
1744542-31J00 CUSHION, FUEL TANK COVER BRKTCUSHION, FUEL TANK COVER BRKT
-
1844276-21H00 CUSHION, FUEL TANK COVERCUSHION, FUEL TANK COVER
-
1944552-24B00 MOLDING, FUEL TANK REARMOLDING, FUEL TANK REAR
-
2007130-1016B BOLTBOLT
-
2144544-31J00 CUSHION, FUEL TANKCUSHION, FUEL TANK
-
2244480-31J00 GUIDE, DRAIN HOSEGUIDE, DRAIN HOSE
-
2344423-31J11 HOSE, FUEL TANK DRAIN NO.2HOSE, FUEL TANK DRAIN NO.2
-
2409367-08005 3 WAY3 WAY
-
2544545-31J00 CUSHIONCUSHION
