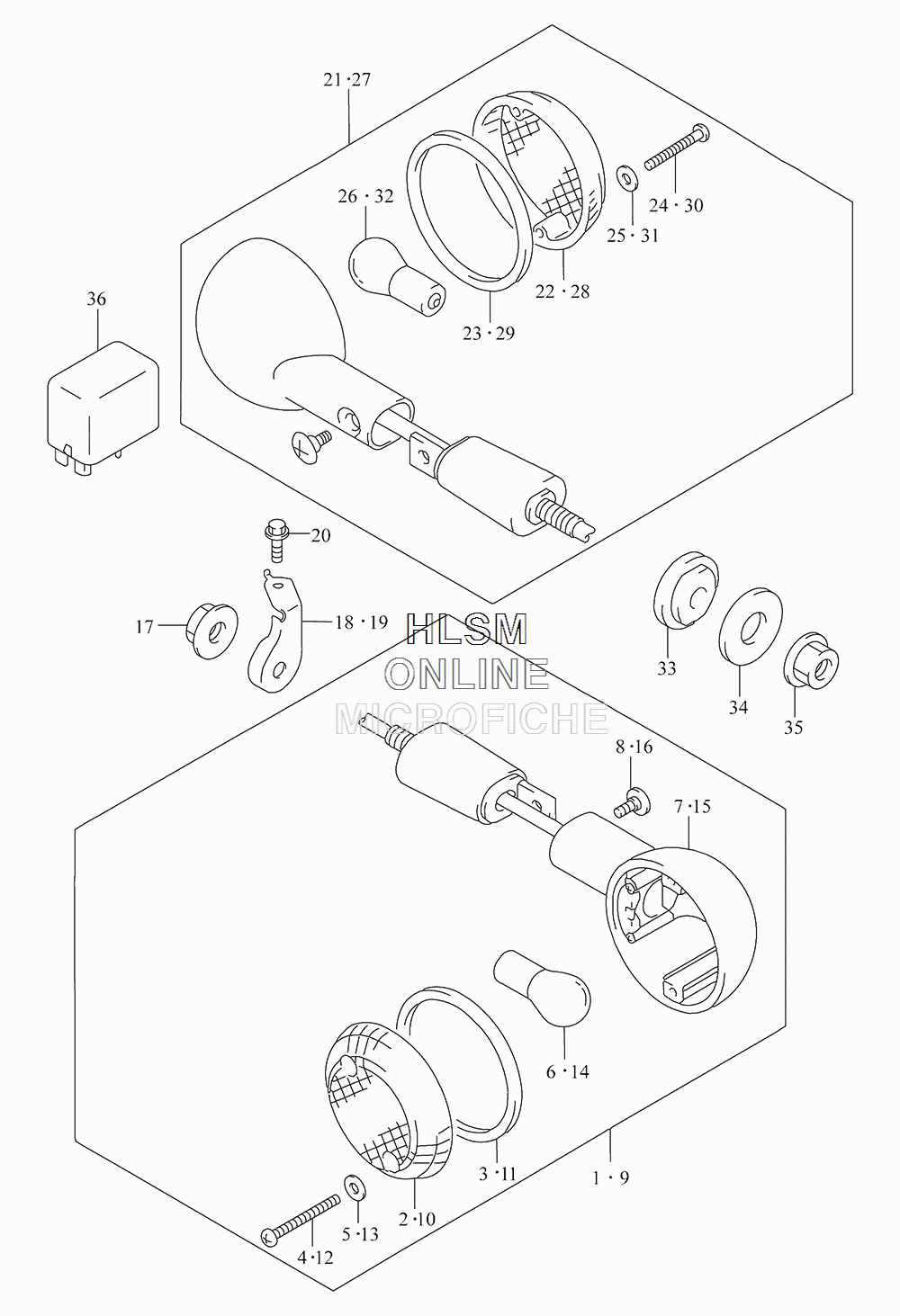

TURN SIGNAL ASSY. для Suzuki GZ250 L5 MARAUDER - 2015 года выпуска

№

Артикул

Название
1

35601-33DA0 LAMP ASSY, FRONT RIGHT HAND

LAMP ASSY, FRONT RIGHT HAND
2

35612-38A30 <-LENS

<-LENS
3

35613-38A00 <-GASKET

<-GASKET
4

03211-0425B <-SCREW

<-SCREW
5

35627-43010 <-GASKET

<-GASKET
6

09471-12083 <-BULB (12V,21/5W)

<-BULB (12V,21/5W)
7

35619-45C10 <-STAY

<-STAY
8

35623-38A01 <-SCREW

<-SCREW
9

35602-33DA0 LAMP ASSY, FRONT LEFT HAND

LAMP ASSY, FRONT LEFT HAND
10

35612-38A30 <-LENS

<-LENS
11

35613-38A00 <-GASKET

<-GASKET
12

03211-0425B <-SCREW

<-SCREW
13

35627-43010 <-GASKET

<-GASKET
14

09471-12083 <-BULB (12V,21/5W)

<-BULB (12V,21/5W)
15

35619-45C10 <-STAY

<-STAY
16

35623-38A01 <-SCREW

<-SCREW
17

08316-1010A NUT

NUT
18

35670-12F00 BRACKET, FR RIGHT HAND

BRACKET, FR RIGHT HAND
19

35680-12F00 BRACKET, FR LEFT HAND

BRACKET, FR LEFT HAND
20

D1557-0612B BOLT, BRACKET

BOLT, BRACKET
21

35603-33DA0 LAMP ASSY, REAR TURN, RIGHT HAND

LAMP ASSY, REAR TURN, RIGHT HAND
22

35612-38A01 <-LENS

<-LENS
23

35613-38A00 <-GASKET

<-GASKET
24

03211-0425B <-SCREW

<-SCREW
25

35627-43010 <-GASKET

<-GASKET
26

09471-12045 <-BULB (12V,21W)

<-BULB (12V,21W)
27

35604-33DA0 LAMP ASSY, REAR TURN, LEFT HAND

LAMP ASSY, REAR TURN, LEFT HAND
28

35612-38A01 <-LENS

<-LENS
29

35613-38A00 <-GASKET

<-GASKET
30

03211-0425B <-SCREW

<-SCREW
31

35627-43010 <-GASKET

<-GASKET
32

09471-12045 <-BULB (12V,21W)

<-BULB (12V,21W)
33

35695-17C00 SPACER

SPACER
34

09160-10501 WASHER (10.5X30X2.3)

WASHER (10.5X30X2.3)
35

08316-1010A NUT

NUT
36

38610-12FA0 RELAY ASSY, TURN SIGNAL

RELAY ASSY, TURN SIGNAL
