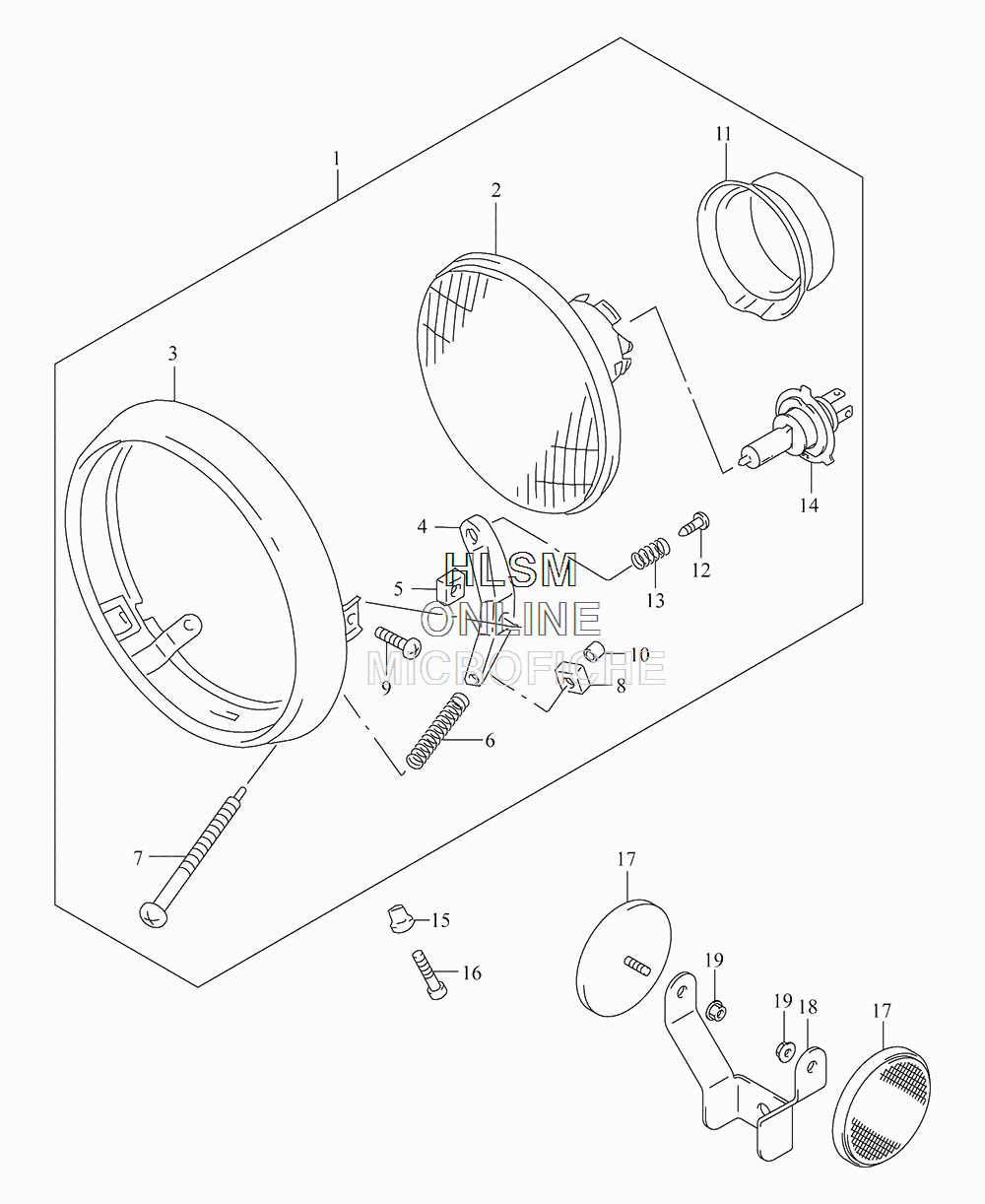

HEADLAMP для Suzuki GZ250 L5 MARAUDER - 2015 года выпуска
-
№АртикулНазвание
-
135100-13F01 HEADLAMP ASSYHEADLAMP ASSY
-
235121-13F01 ...UNIT...UNIT
-
335111-13F00 ...RIM...RIM
-
435131-13F00 ...STAY...STAY
-
535135-45900 ...NUT...NUT
-
635154-13F00 ...SPRING...SPRING
-
735151-45900 ...ADJUST SCREW...ADJUST SCREW
-
835152-45600 ...NUT...NUT
-
935181-13F00 ...SCREW...SCREW
-
1035165-13F00 ...CAP, SCREW...CAP, SCREW
-
1135173-38A00 ...COVER, SOCKET...COVER, SOCKET
-
1235161-13F00 ...SCREW...SCREW
-
1335145-13F00 ...SPRING...SPRING
-
1409471-12185 ...BULB (12V, 60/55W)...BULB (12V, 60/55W)
-
1535192-13F00 SPACER, HEADLAMPSPACER, HEADLAMP
-
1602112-05167 SCREWSCREW
-
1735950-14A10 REFLEX REFLECTOR, ASSYREFLEX REFLECTOR, ASSY
-
1835956-13F10 BRACKET FRONT, SIDE REFLECTORBRACKET FRONT, SIDE REFLECTOR
-
1908316-1005A NUTNUT
