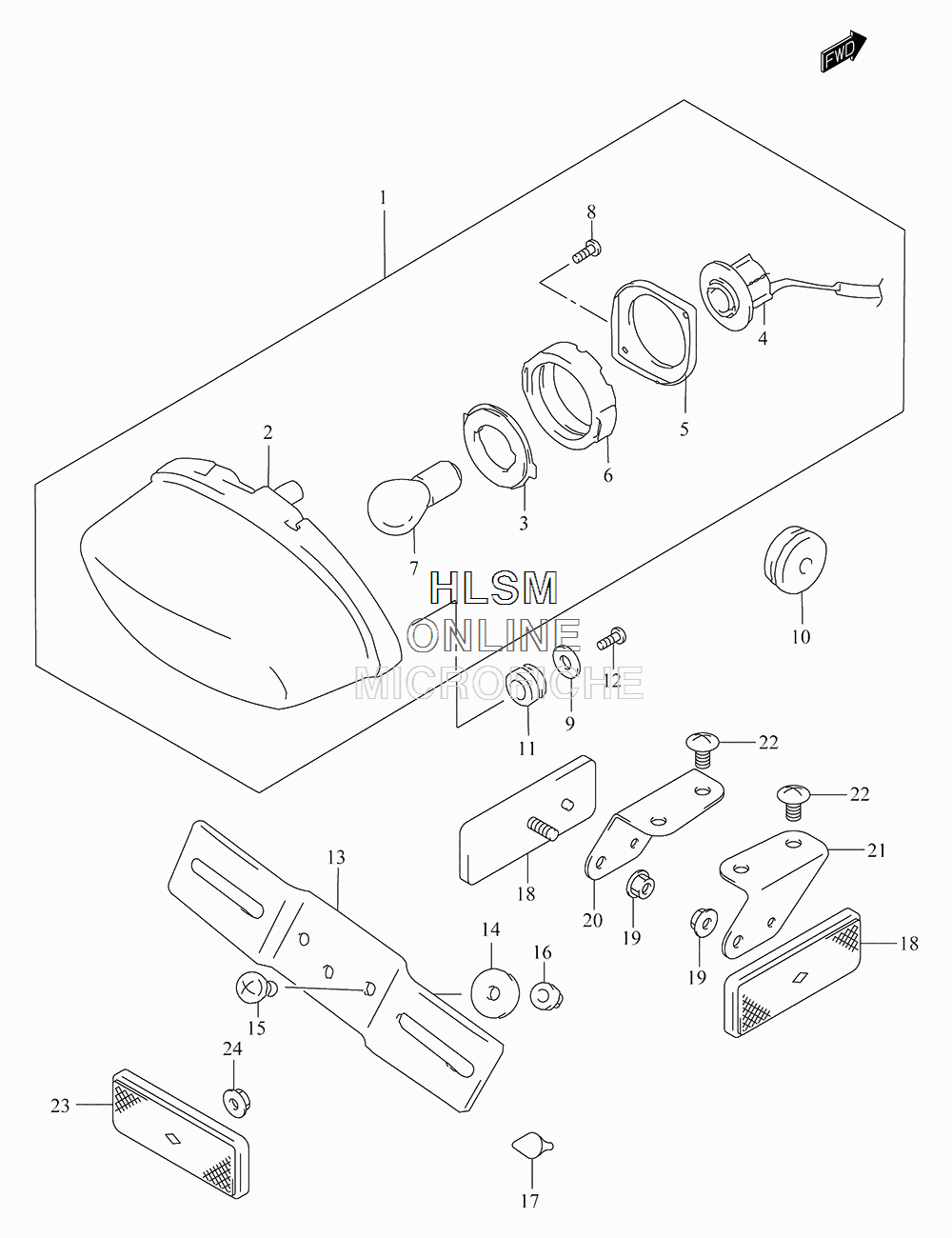

TAILLIGHT ASSY. для Suzuki GZ250 L5 MARAUDER - 2015 года выпуска
-
№АртикулНазвание
-
135710-12F30 LAMP ASSY, REAR COMBLAMP ASSY, REAR COMB
-
235740-42E11 ...LAMP UNIT...LAMP UNIT
-
335716-48B21 ...PLATE, NO.1...PLATE, NO.1
-
435718-12F00 ...SOCKET AND CORD...SOCKET AND CORD
-
535736-48B21 ...PLATE...PLATE
-
635765-42E00 ...CUSHION...CUSHION
-
709471-12083 ...BULB (12V, 21/5W)...BULB (12V, 21/5W)
-
803211-0412A ...SCREW...SCREW
-
909160-05501 WASHER, REAR COMB (5.5X20X1.2)WASHER, REAR COMB (5.5X20X1.2)
-
1009308-08007 GROMMETGROMMET
-
1109320-10015 CUSHION, REAR COMBCUSHION, REAR COMB
-
1203541-0512B SCREW, REAR COMBSCREW, REAR COMB
-
1335927-13F00 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1409160-06088 WASHER, LICENSE (6.5X20X1.6)WASHER, LICENSE (6.5X20X1.6)
-
15D2116-0612B SCREW, LICENSESCREW, LICENSE
-
16D8310-0006B NUT, LICENSENUT, LICENSE
-
1709321-06026 CUSHION, REAR FENDERCUSHION, REAR FENDER
-
1835970-07F01 REFLEX REFLECTOR ASSY, REARREFLEX REFLECTOR ASSY, REAR
-
1908316-1005B NUTNUT
-
2035974-13F00 BRACKET, REAR RIGHT HANDBRACKET, REAR RIGHT HAND
-
2135975-13F00 BRACKET, REAR LEFT HANDBRACKET, REAR LEFT HAND
-
2202142-0608B SCREWSCREW
-
2335970-07F01 REFLEX REFLECTOR ASSY, REARREFLEX REFLECTOR ASSY, REAR
-
2408316-1005B NUTNUT
