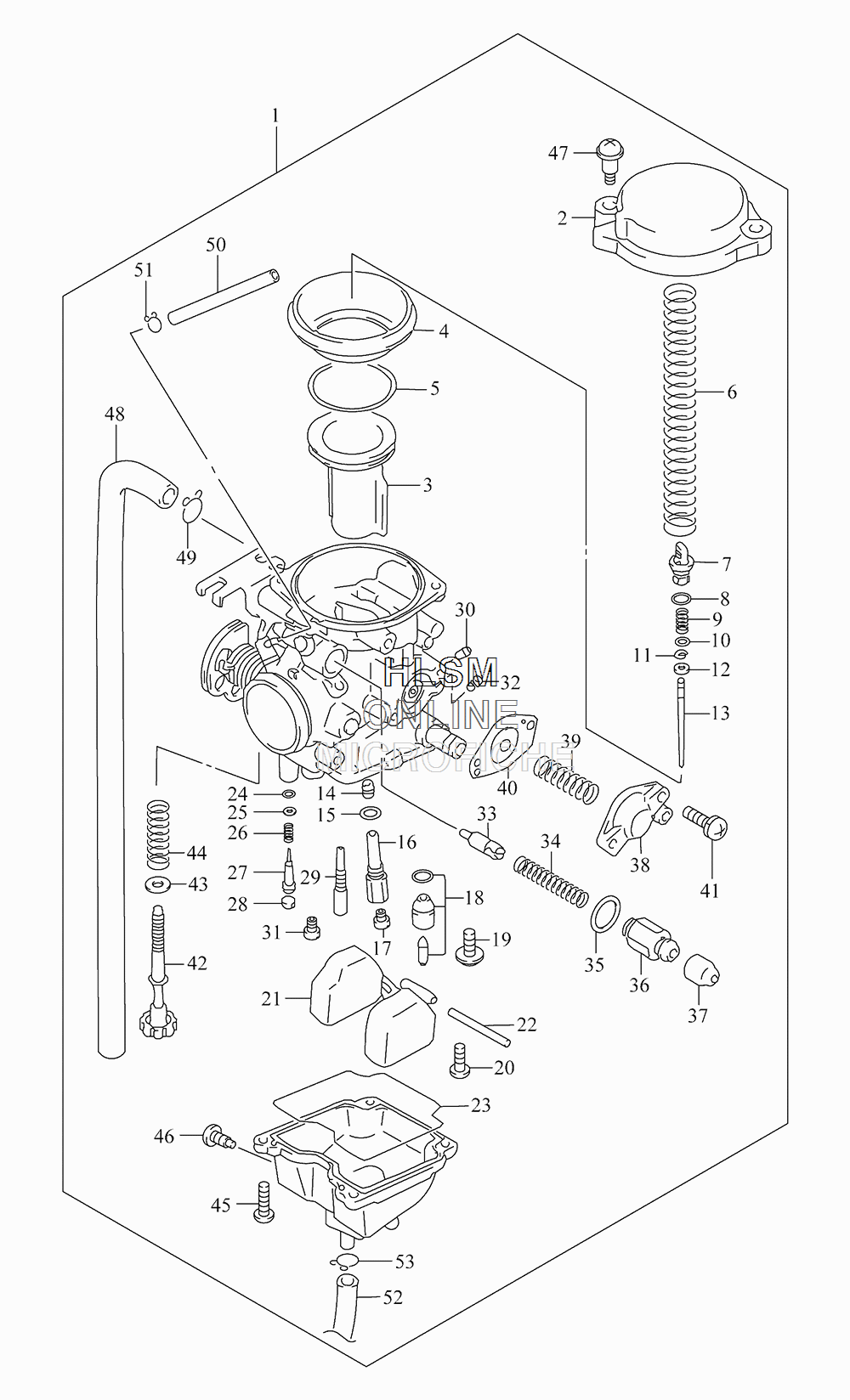

CARBURETOR (CALIFORNIA ONLY) для Suzuki GZ250 L5 MARAUDER - 2015 года выпуска`
-
№АртикулНазвание
-
113200-13F40 CARBURETOR ASSYCARBURETOR ASSY
-
213502-19E00 ...DIAPHRAGM COVER...DIAPHRAGM COVER
-
313501-13F00 ...VALVE, PISTON...VALVE, PISTON
-
413507-19E00 ...DIAPHRAGM...DIAPHRAGM
-
513504-16E00 ...RING...RING
-
613573-04F00 ...SPRING...SPRING
-
713418-33E00 ...HOLDER...HOLDER
-
809280-05004 ...O RING (D:1.9, ID:4.8)...O RING (D:1.9, ID:4.8)
-
913481-13F00 ...SPRING...SPRING
-
1013382-12F40 ...WASHER...WASHER
-
1113394-17E60 ...E RING, MULTIPLE JET NOZZLE...E RING, MULTIPLE JET NOZZLE
-
1213387-13F00 ...RING...RING
-
1313383-13F30 ...NEEDLE, JET (5C65-1)...NEEDLE, JET (5C65-1)
-
1409494-00921 ...JET, NEEDLE (P-0M)...JET, NEEDLE (P-0M)
-
1513246-43010 ...O RING...O RING
-
1613385-13F00 ...HOLDER, JET...HOLDER, JET
-
1709491-24026 ...JET, MAIN (120)...JET, MAIN (120)
-
1813370-04F00 ...VALVE ASSY, NEEDLE...VALVE ASSY, NEEDLE
-
1913602-05A10 ...SCREW...SCREW
-
2002112-0408A ...SCREW...SCREW
-
2113250-04F00 ...FLOAT ASSY...FLOAT ASSY
-
2213254-01010 ...PIN, FLOAT...PIN, FLOAT
-
2313258-04F00 ...GASKET...GASKET
-
2413295-29900 ...O RING...O RING
-
2513291-29900 ...WASHER...WASHER
-
2613268-48700 ...SPRING...SPRING
-
2713279-13F00 ...ADJUSTER (1 1/2)...ADJUSTER (1 1/2)
-
2813281-05A00 ...PLUG...PLUG
-
2909492-17016 ...JET...JET
-
3009492-87002 ...JET, MAIN (87.5)...JET, MAIN (87.5)
-
3109491-52003 ...JET, MAIN (52.5)...JET, MAIN (52.5)
-
3209493-24013 ...JET, PILOT AIR (120)...JET, PILOT AIR (120)
-
3313411-24D00 ...PLUNGER...PLUNGER
-
3413417-07F00 ...SPRING...SPRING
-
3513278-47090 ...O RING...O RING
-
3613418-07F00 ...HOLDER, GUIDE...HOLDER, GUIDE
-
3713681-04010 ...CAP, CARBURETOR...CAP, CARBURETOR
-
3813502-10F00 ...COVER ASSY...COVER ASSY
-
3913271-13F00 ...SPRING...SPRING
-
4013480-13F00 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
4113601-04148 ...SCREW...SCREW
-
4213267-13F00 ...ADJUST SCREW ASSY...ADJUST SCREW ASSY
-
4313285-07F00 ...PACKING...PACKING
-
4413342-82370 ...SPRING...SPRING
-
4502112-04107 ...SCREW...SCREW
-
4613247-13A00 ...SCREW, DRAIN...SCREW, DRAIN
-
4713247-33E00 ...SCREW...SCREW
-
4813686-13F00 ...HOSE...HOSE
-
4913671-06A10 ...CLIP...CLIP
-
5013686-13F10 ...HOSE...HOSE
-
5113671-13F00 ...CLIP...CLIP
-
5213683-20B00 ...HOSE...HOSE
-
5309401-08410 ...CLIP...CLIP
