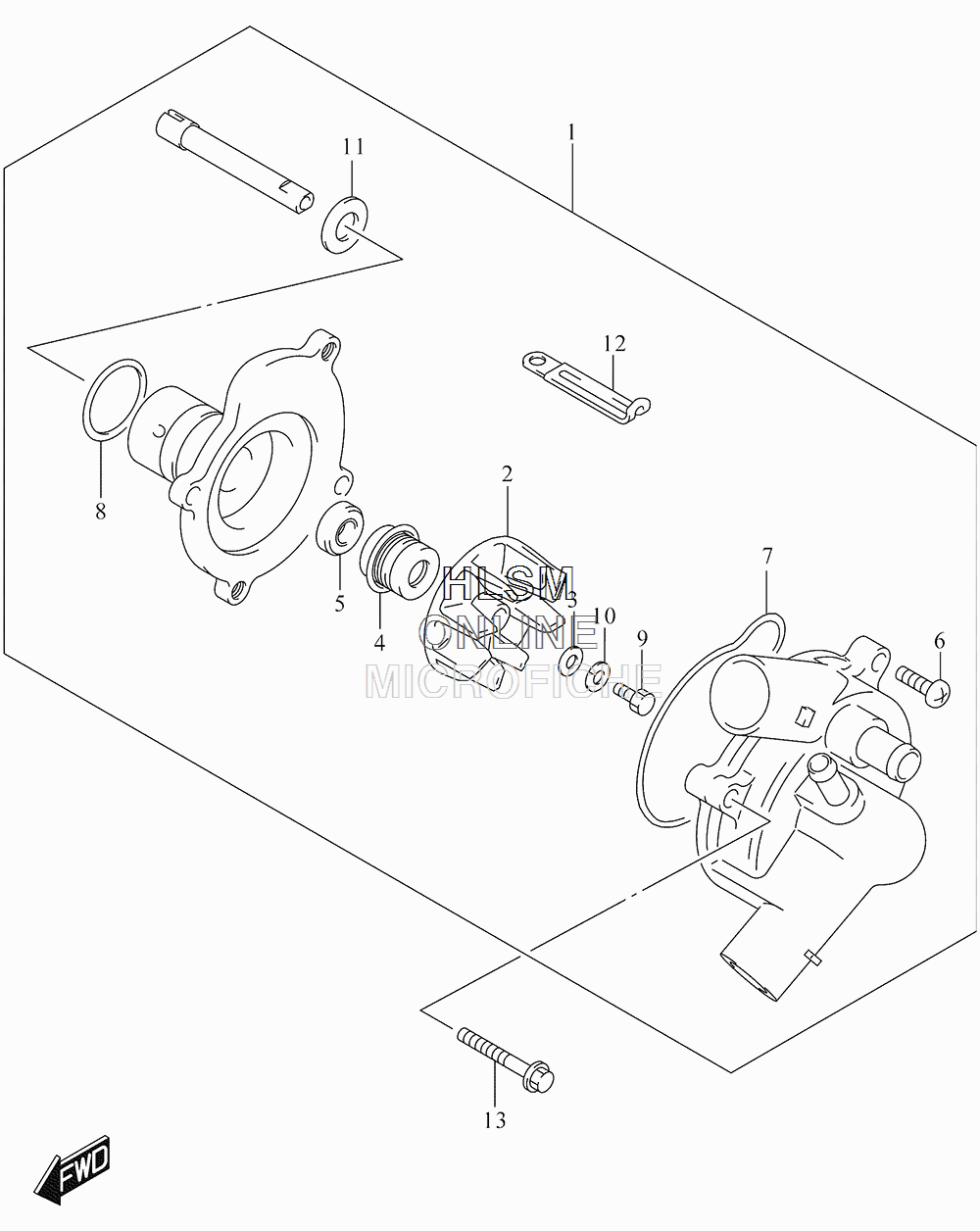

WATER PUMP для Suzuki GSX-S750A L5 ABS - 2015 года выпуска`
-
№АртикулНазвание
-
117400-35F30 PUMP ASSY, WATERPUMP ASSY, WATER
-
217491-17E01 ...IMPELLER...IMPELLER
-
309168-06025 ...GASKET (6X15X2.2)...GASKET (6X15X2.2)
-
417470-02F10 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
517461-48G00 ...OIL SEAL...OIL SEAL
-
602112-0616A ...SCREW...SCREW
-
717418-33400 ...O RING...O RING
-
817435-33400 ...O RING...O RING
-
909100-06099 ...BOLT (6X13)...BOLT (6X13)
-
1009164-06006 ...WASHER...WASHER
-
1117432-07G00 ...WASHER...WASHER
-
1209404-06429 ...CLAMP (L:45)...CLAMP (L:45)
-
1301550-0635A BOLTBOLT
