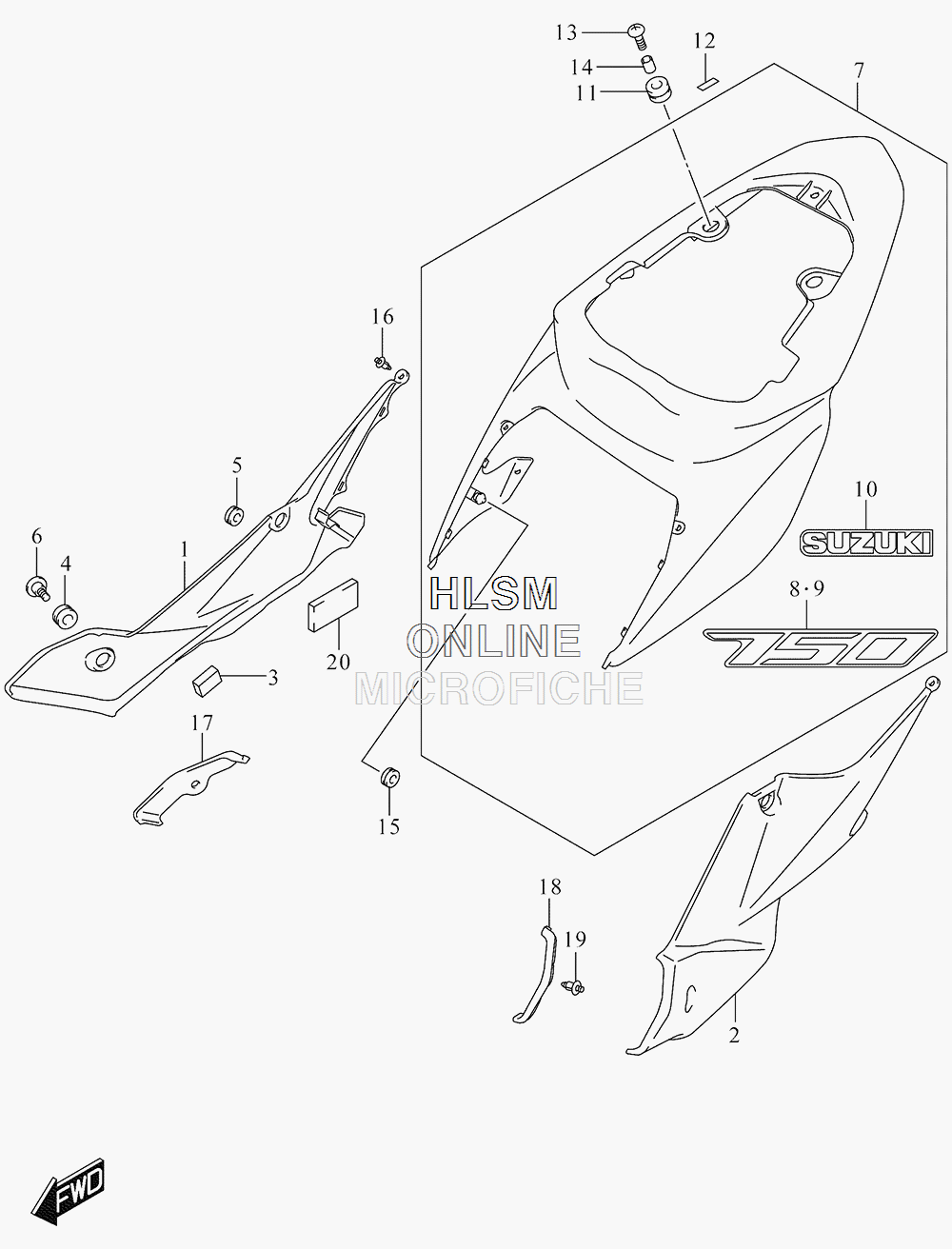

SIDE COVER для Suzuki GSX-S750A L5 ABS - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    47511-08J00-291 COVER, FRAME FRONT RIGHT HAND (BLACK)
    COVER, FRAME FRONT RIGHT HAND (BLACK)
  • 2
    47611-08J00-291 COVER, FRAME FRONT LEFT HAND (BLACK)
    COVER, FRAME FRONT LEFT HAND (BLACK)
  • 3
    94422-06G00 CUSHION
    CUSHION
  • 4
    09320-09016 CUSHION
    CUSHION
  • 5
    47113-37H00 CUSHION
    CUSHION
  • 6
    47118-08J00 SCREW, FRAME COVER FRONT
    SCREW, FRAME COVER FRONT
  • 7
    47310-08J00-AJX COVER, FRAME CENTER (WHITE) (FOR AJX)
    COVER, FRAME CENTER (WHITE) (FOR AJX)
  • 7
    47310-08J20-4TX COVER, FRAME CENTER (BLACK) (FOR YKV)
    COVER, FRAME CENTER (BLACK) (FOR YKV)
  • 8
    68161-08J00-AHS ...EMBLEM, ''750'' RIGHT HAND (BLACK/WHITE) (FOR AJX)
    ...EMBLEM, ''750'' RIGHT HAND (BLACK/WHITE) (FOR AJX)
  • 8
    68161-08J00-A39 ...EMBLEM, ''750'' RIGHT HAND (RED/BLACK) (FOR YKV)
    ...EMBLEM, ''750'' RIGHT HAND (RED/BLACK) (FOR YKV)
  • 9
    68171-08J00-AHS ...EMBLEM, ''750'' LEFT HAND (BLACK/WHITE) (FOR AJX)
    ...EMBLEM, ''750'' LEFT HAND (BLACK/WHITE) (FOR AJX)
  • 9
    68171-08J00-A39 ...EMBLEM, ''750'' LEFT HAND (BLACK) (FOR YKV)
    ...EMBLEM, ''750'' LEFT HAND (BLACK) (FOR YKV)
  • 10
    68171-28H00-YU8 ...EMBLEM, ''SUZUKI'' (GRAY) (FOR AJX)
    ...EMBLEM, ''SUZUKI'' (GRAY) (FOR AJX)
  • 10
    68171-28H10-CTY ...EMBLEM, ''SUZUKI'' (SILVER/BLACK) (FOR YKV)
    ...EMBLEM, ''SUZUKI'' (SILVER/BLACK) (FOR YKV)
  • 11
    47312-37H00 CUSHION
    CUSHION
  • 12
    94443-06G00 TAPE, FRAME COVER CENTER
    TAPE, FRAME COVER CENTER
  • 13
    09136-06105 SCREW (6X20)
    SCREW (6X20)
  • 14
    09180-06283 SPACER (6.5X10X7)
    SPACER (6.5X10X7)
  • 15
    09320-08018 CUSHION
    CUSHION
  • 16
    09409-06314-5PK CLIP (BLACK)
    CLIP (BLACK)
  • 17
    47711-08J00 COVER, FRAME TOP RH
    COVER, FRAME TOP RH
  • 18
    47811-08J00 COVER, FRAME TOP LH
    COVER, FRAME TOP LH
  • 19
    09409-07333 CLIP
    CLIP
  • 20
    33652-21G10 CUSHION, FUEL TANK COVER SIDE
    CUSHION, FUEL TANK COVER SIDE
