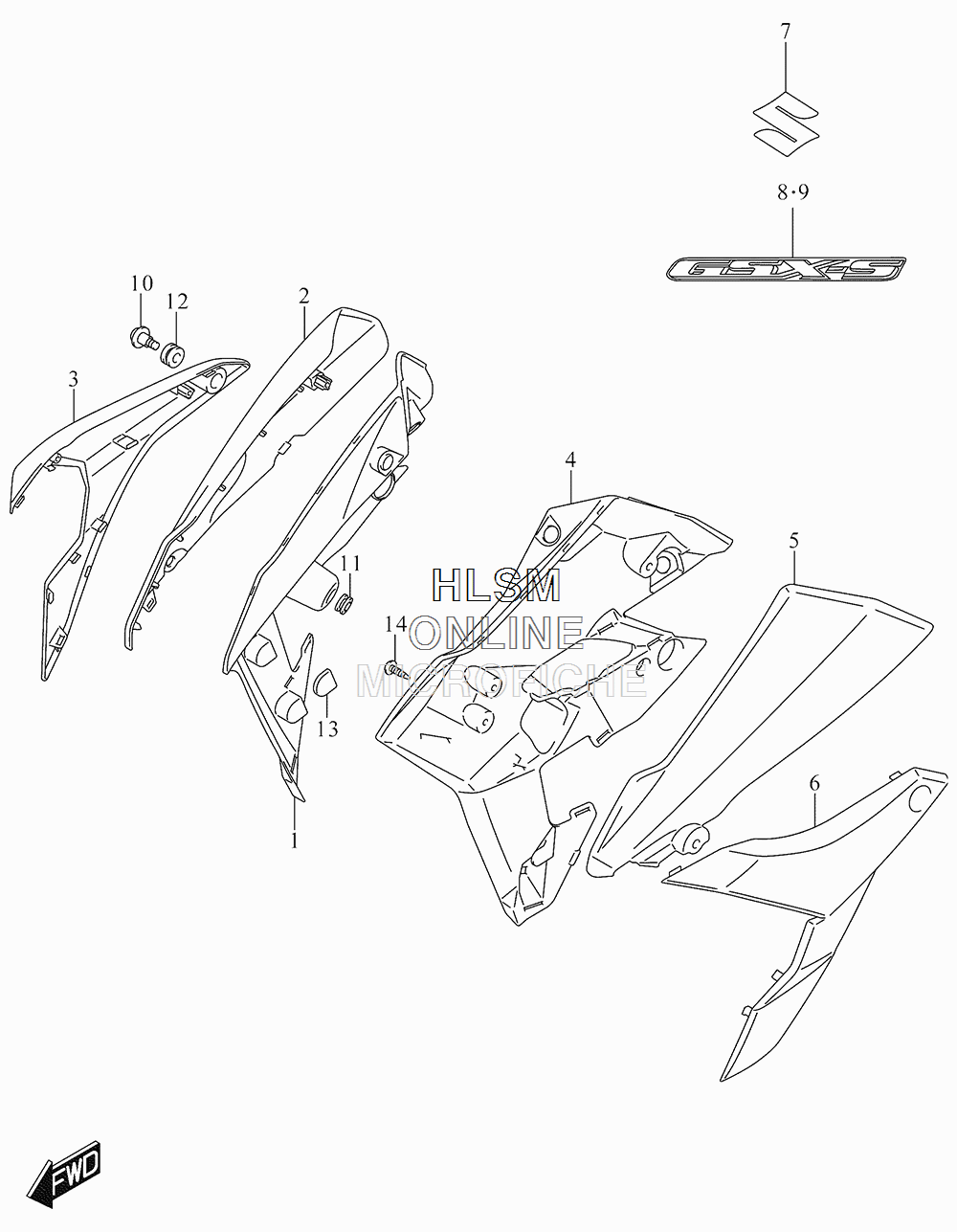

BODY COVER для Suzuki GSX-S750A L5 ABS - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    47531-08J00 COVER, FRAME BODY INNER RH
    COVER, FRAME BODY INNER RH
  • 2
    47532-08J00-YKV COVER, FRAME BODY RIGHT HAND (BLACK) (FOR YKV)
    COVER, FRAME BODY RIGHT HAND (BLACK) (FOR YKV)
  • 2
    47532-08J00-YWW COVER, FRAME BODY RIGHT HAND (WHITE) (FOR AJX)
    COVER, FRAME BODY RIGHT HAND (WHITE) (FOR AJX)
  • 3
    47533-08J00-PGZ COVER, FRAME BODY LOWER RIGHT HAND (GRAY)
    COVER, FRAME BODY LOWER RIGHT HAND (GRAY)
  • 4
    47541-08J00 COVER, FRAME BODY INNER LH
    COVER, FRAME BODY INNER LH
  • 5
    47542-08J00-YKV COVER, FRAME BODY LEFT HAND (BLACK) (FOR YKV)
    COVER, FRAME BODY LEFT HAND (BLACK) (FOR YKV)
  • 5
    47542-08J00-YWW COVER, FRAME BODY LEFT HAND (WHITE) (FOR AJX)
    COVER, FRAME BODY LEFT HAND (WHITE) (FOR AJX)
  • 6
    47543-08J00-PGZ COVER, FRAME BODY LOWER LEFT HAND (GRAY)
    COVER, FRAME BODY LOWER LEFT HAND (GRAY)
  • 7
    68111-47HA0 EMBLEM, ''S''
    EMBLEM, ''S''
  • 8
    68661-08J20-A68 EMBLEM, ''GSX-S'' RIGHT HAND (RED/BLACK) (FOR YKV)
    EMBLEM, ''GSX-S'' RIGHT HAND (RED/BLACK) (FOR YKV)
  • 8
    68661-08J20-A69 EMBLEM, ''GSX-S'' RIGHT HAND (FOR AJX)
    EMBLEM, ''GSX-S'' RIGHT HAND (FOR AJX)
  • 9
    68671-08J20-A68 EMBLEM, ''GSX-S'' LEFT HAND (RED/BLACK) (FOR YKV)
    EMBLEM, ''GSX-S'' LEFT HAND (RED/BLACK) (FOR YKV)
  • 9
    68671-08J20-A69 EMBLEM, ''GSX-S'' LEFT HAND (FOR AJX)
    EMBLEM, ''GSX-S'' LEFT HAND (FOR AJX)
  • 10
    09139-06190 BOLT (6X20)
    BOLT (6X20)
  • 11
    09320-08028 CUSHION
    CUSHION
  • 12
    09320-09016 CUSHION
    CUSHION
  • 13
    09329-18001 CUSHION
    CUSHION
  • 14
    03541-0516A SCREW
    SCREW
