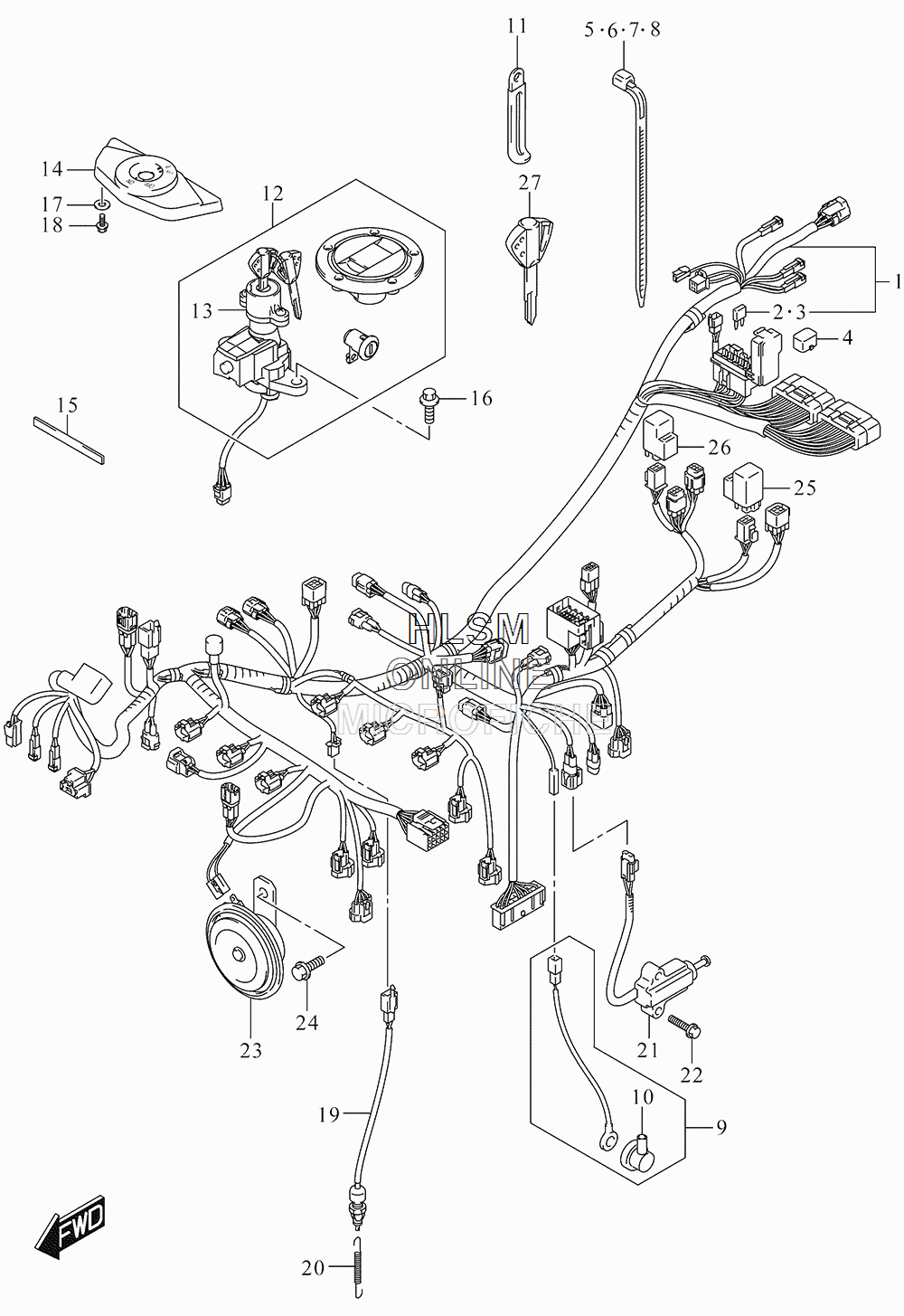

ELECTRICAL - WIRING HARNESS для Suzuki GSX-S750A L5 ABS - 2015 года выпуска`
-
№АртикулНазвание
-
136610-08JH0 HARNESS, WIRINGHARNESS, WIRING
-
209481-10501 ...FUSE (10A)...FUSE (10A)
-
309481-15501 ...FUSE (15A)...FUSE (15A)
-
436654-06J30 CAP, TSCAP, TS
-
509407-14407 CLAMP (L:145)CLAMP (L:145)
-
609407-14403 CLAMP (L:125)CLAMP (L:125)
-
709407-18402 CLAMP (L:165)CLAMP (L:165)
-
809407-19401 CLAMP (L:190)CLAMP (L:190)
-
936851-44G01 WIRE, OIL PRESSURE SWITCH LEADWIRE, OIL PRESSURE SWITCH LEAD
-
1036618-31J00 ...CAP, OIL PRESSURE SWITCH...CAP, OIL PRESSURE SWITCH
-
1109404-06429 CLAMP (L:45)CLAMP (L:45)
-
1237101-44810 LOCK SETLOCK SET
-
1337100-44G20 ...LOCK ASSY, STEERING...LOCK ASSY, STEERING
-
1437180-44G20 ANTENNA ASSY, IMMOBILIZERANTENNA ASSY, IMMOBILIZER
-
1537187-44G00 PROTECTOR, IGNITION SWITCHPROTECTOR, IGNITION SWITCH
-
1609119-08100 BOLT (8X20)BOLT (8X20)
-
1709160-05037 WASHER (5.5X16X1.2)WASHER (5.5X16X1.2)
-
1801550-0510A BOLTBOLT
-
1937740-45D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2009443-06012 SPRINGSPRING
-
2137840-35F00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2201550-0620A BOLTBOLT
-
2338500-16G01 HORN ASSYHORN ASSY
-
2401550-0812A BOLTBOLT
-
2538740-24X50 RELAY ASSY (FOR FUEL PUMP)RELAY ASSY (FOR FUEL PUMP)
-
2638740-24X50 RELAY ASSY (FOR FAN MOTOR)RELAY ASSY (FOR FAN MOTOR)
-
2737146-41G00 KEY, BLANK (OPT)KEY, BLANK (OPT)
