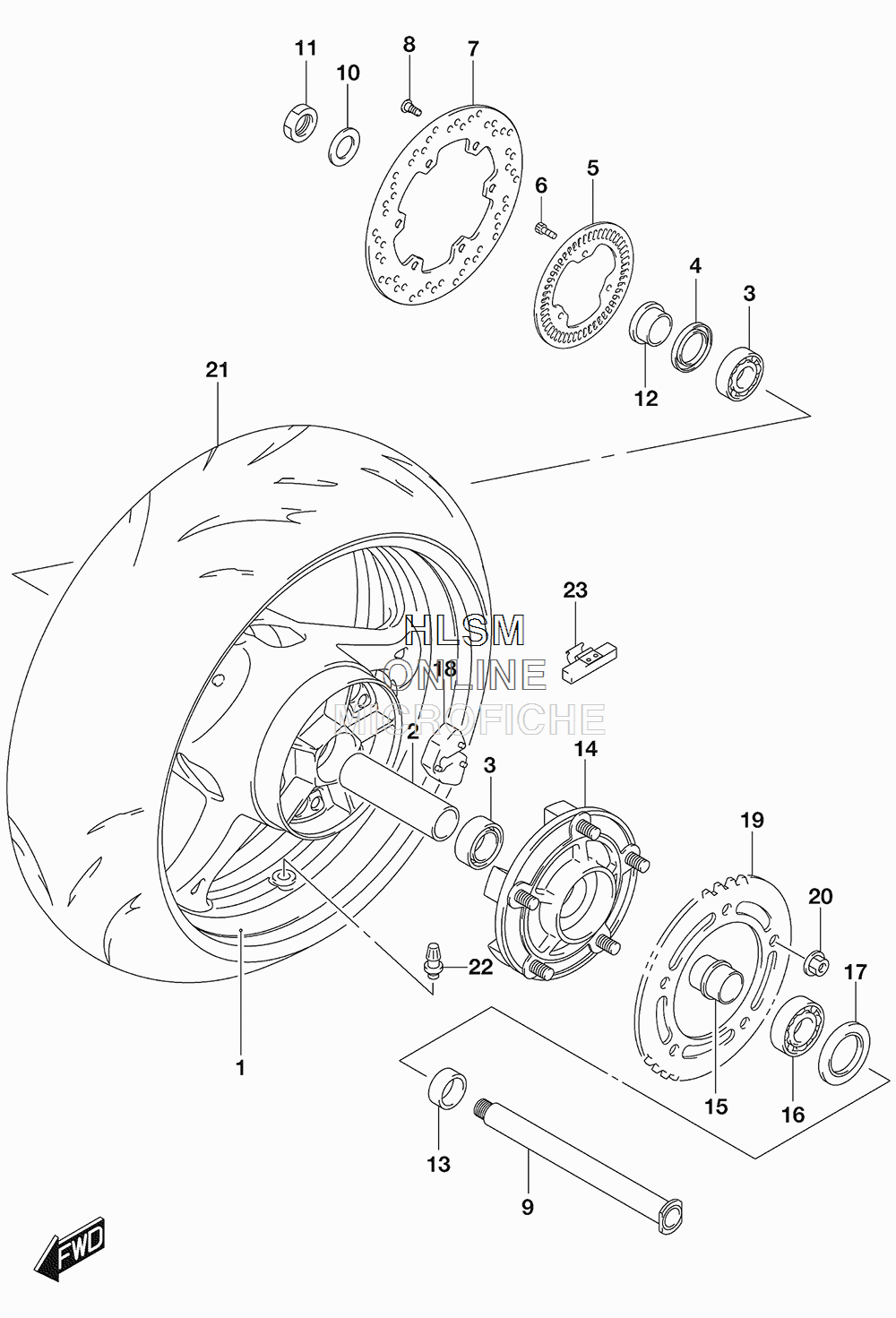

WHEEL - REAR для Suzuki GSX-1300RA L5 HAYABUSA - 2015 года выпуска

№

Артикул

Название
1

64111-15H10-019 WHEEL, REAR (17M/CXMT6.00) (BLACK)

WHEEL, REAR (17M/CXMT6.00) (BLACK)
2

64731-40F10 SPACER, HUB BEARING

SPACER, HUB BEARING
3

09262-28052 BEARING (28X52X12)

BEARING (28X52X12)
4

09284-37001 OIL SEAL (37X52X8) (RIGHT HAND)

OIL SEAL (37X52X8) (RIGHT HAND)
5

64162-23H00 RING, SPEED SENSOR (60T)

RING, SPEED SENSOR (60T)
6

07130-0512A BOLT

BOLT
7

69211-15H00 DISC, REAR BRAKE

DISC, REAR BRAKE
8

09106-08160 BOLT (8X21)

BOLT (8X21)
9

64711-33E20 AXLE, REAR

AXLE, REAR
10

09160-25070 WASHER (25.2X42X3.2)

WASHER (25.2X42X3.2)
11

09159-25003 NUT

NUT
12

64741-35F00 SPACER, AXLE RIGHT HAND

SPACER, AXLE RIGHT HAND
13

64751-49G00 SPACER, AXLE LEFT HAND

SPACER, AXLE LEFT HAND
14

64610-35F30 DRUM, REAR SPROCKET

DRUM, REAR SPROCKET
15

64733-35F00 RETAINER, SPROCKET DRUM

RETAINER, SPROCKET DRUM
16

09262-32022 BEARING (32X65X17)

BEARING (32X65X17)
17

09285-39001 OIL SEAL (39X65X7)

OIL SEAL (39X65X7)
18

64651-35F20 ABSORBER, HUB SHOCK

ABSORBER, HUB SHOCK
19

64511-15H00 SPROCKET, REAR (NT:43)

SPROCKET, REAR (NT:43)
20

08319-3110A NUT

NUT
21

65110-24F50 TIRE, REAR (190/50 ZR17 (73W))

TIRE, REAR (190/50 ZR17 (73W))
22

43130-24A00 VALVE ASSY, WHEEL RIM (TR412)

VALVE ASSY, WHEEL RIM (TR412)
23

55411-22H00 BALANCER, WHEEL NO.1 (10G) (10G)

BALANCER, WHEEL NO.1 (10G) (10G)
23

55412-22H00 BALANCER, WHEEL NO.2 (20G) (20G)

BALANCER, WHEEL NO.2 (20G) (20G)
23

55413-22H00 BALANCER, WHEEL NO.3 (30G) (30G)

BALANCER, WHEEL NO.3 (30G) (30G)
