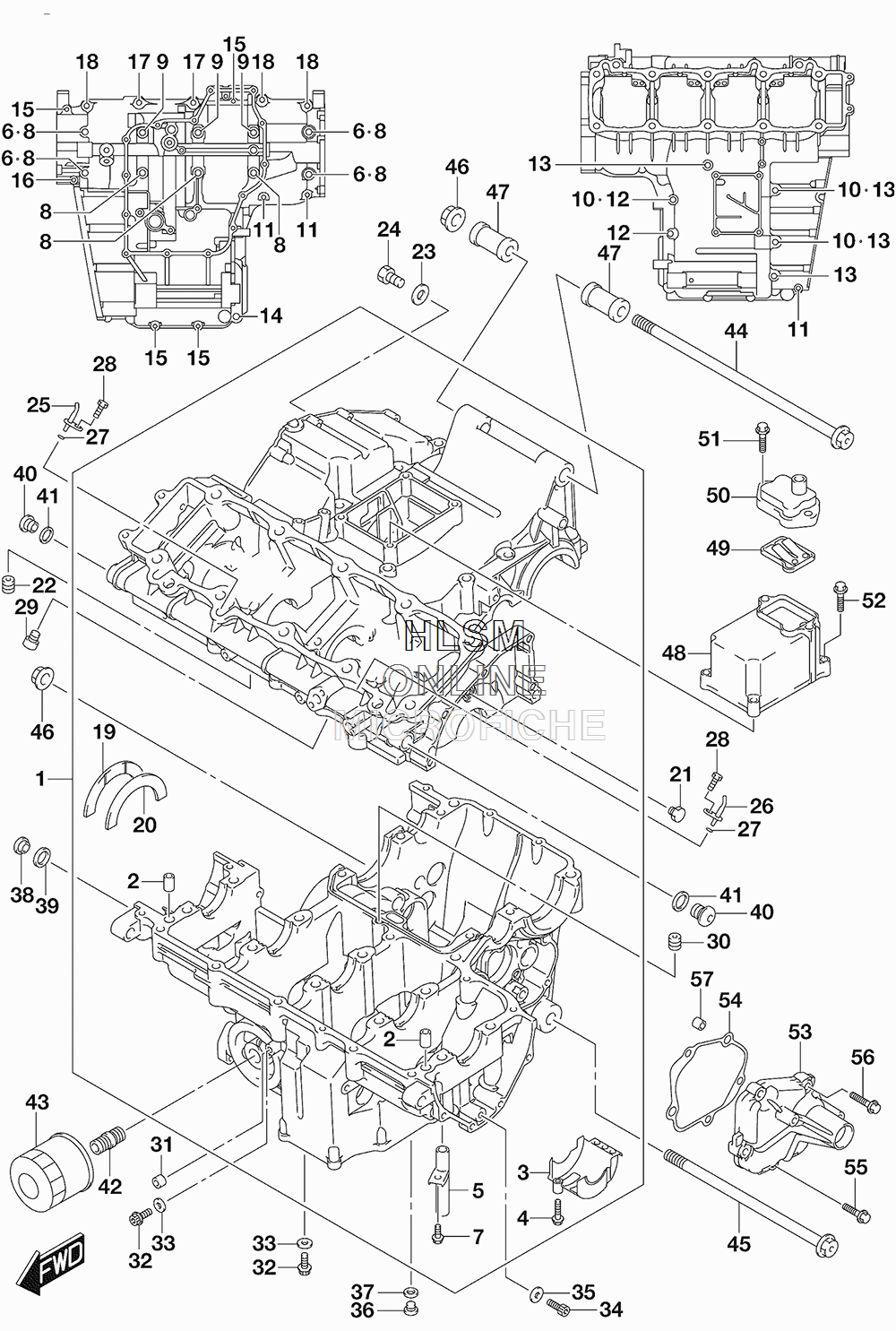

CRANKCASE 1 для Suzuki GSX-1300RA L5 HAYABUSA - 2015 года выпуска
-
№АртикулНазвание
-
111302-24820 CRANKCASE SETCRANKCASE SET
-
211319-33E50 PINPIN
-
311323-24F10 SEPARATOR, OILSEPARATOR, OIL
-
401547-0625A BOLTBOLT
-
511328-24F00 UNION, BREATHER OILUNION, BREATHER OIL
-
609168-10031 GASKET (10.2X20X2.3)GASKET (10.2X20X2.3)
-
701547-0612A BOLTBOLT
-
809103-09008 BOLT (9X95)BOLT (9X95)
-
909103-09010 BOLT (9X115)BOLT (9X115)
-
1009168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
1101547-0650A BOLTBOLT
-
1201550-0865A BOLTBOLT
-
1301550-0880A BOLTBOLT
-
1401550-1060A BOLTBOLT
-
1501547-0640A BOLTBOLT
-
1601547-0660A BOLTBOLT
-
1709103-08155 BOLT (8X60)BOLT (8X60)
-
1809103-08355 BOLT (8X50)BOLT (8X50)
-
1912228-24F00-0D0 BEARING, CRANK THRUST (GREEN) (RIGHT HAND)BEARING, CRANK THRUST (GREEN) (RIGHT HAND)
-
2012228-24F00-0A0 BEARING, CRANK THRUST (RED) (LEFT HAND)BEARING, CRANK THRUST (RED) (LEFT HAND)
-
2012228-24F00-0B0 BEARING, CRANK THRUST (BLACK)BEARING, CRANK THRUST (BLACK)
-
2012228-24F00-0C0 BEARING, CRANK THRUST (BLUE)BEARING, CRANK THRUST (BLUE)
-
2012228-24F00-0D0 BEARING, CRANK THRUST (GREEN)BEARING, CRANK THRUST (GREEN)
-
2012228-24F00-0E0 BEARING, CRANK THRUST (YELLOW)BEARING, CRANK THRUST (YELLOW)
-
2012228-24F00-0F0 BEARING, CRANK THRUST (WHITE)BEARING, CRANK THRUST (WHITE)
-
2111393-33E01 JET, MAGNETO COOLINGJET, MAGNETO COOLING
-
2209493-20012 JET, AIR (100)JET, AIR (100)
-
2309168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
2407120-0612B PLUGPLUG
-
2511390-34E00 JET, PISTON COOLING RIGHT HANDJET, PISTON COOLING RIGHT HAND
-
2611390-34E10 JET, PISTON COOLING LEFT HANDJET, PISTON COOLING LEFT HAND
-
2709280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
2809106-06075 BOLT (6X12)BOLT (6X12)
