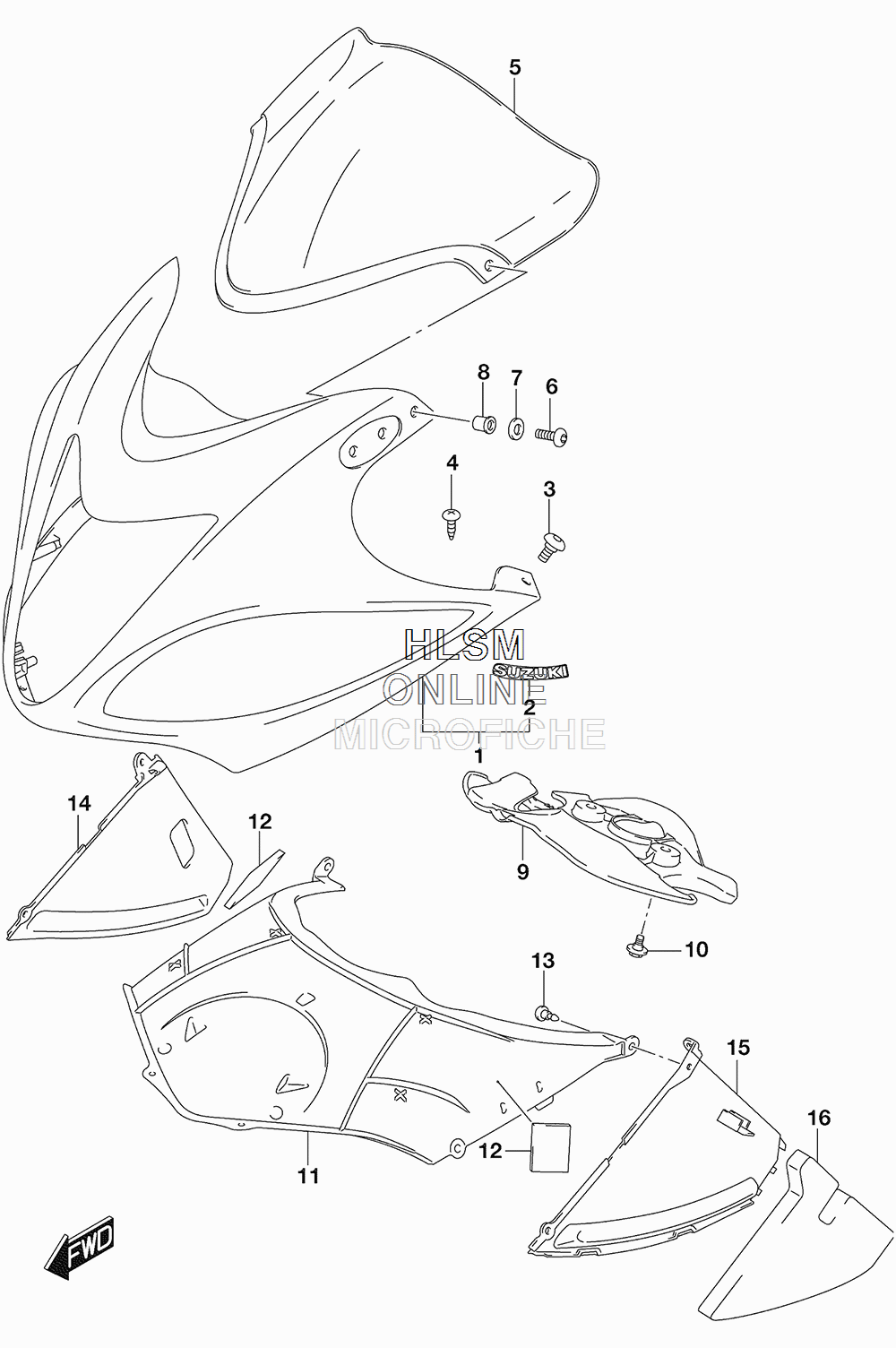

COWLING BODY для Suzuki GSX-1300RA L5 HAYABUSA - 2015 года выпуска

№

Артикул

Название
1

94401-15H60-RB5 BODY, COWLING (WHITE) (FOR AA3)

BODY, COWLING (WHITE) (FOR AA3)
1

94401-15H60-YKY BODY, COWLING (BLUE) (FOR ARA)

BODY, COWLING (BLUE) (FOR ARA)
1

94401-15H60-YVB BODY, COWLING (BLACK) (FOR ASU)

BODY, COWLING (BLACK) (FOR ASU)
2

68281-24F10-17U EMBLEM (GRAY)

EMBLEM (GRAY)
3

09139-05077 SCREW (5X16)

SCREW (5X16)
4

09132-05053 SCREW (5X16)

SCREW (5X16)
5

94611-15H00 WINDSCREEN

WINDSCREEN
6

09139-05025 SCREW (5X14)

SCREW (5X14)
7

08322-0105B WASHER

WASHER
8

09159-05019 NUT

NUT
9

94458-15H10 COVER, LOWER BRACKET

COVER, LOWER BRACKET
10

09111-06107 BOLT (6X12)

BOLT (6X12)
11

94419-15H01 COVER, BODY COWL

COVER, BODY COWL
12

36930-60A10 CUSHION, COVER

CUSHION, COVER
13

09409-06314-5PK CLIP (BLACK)

CLIP (BLACK)
14

94461-15H00 COWL, INNER RIGHT HAND

COWL, INNER RIGHT HAND
15

94462-15H00 COWL, INNER LEFT HAND

COWL, INNER LEFT HAND
16

94463-15H00 CUSHION, LEFT HAND

CUSHION, LEFT HAND
