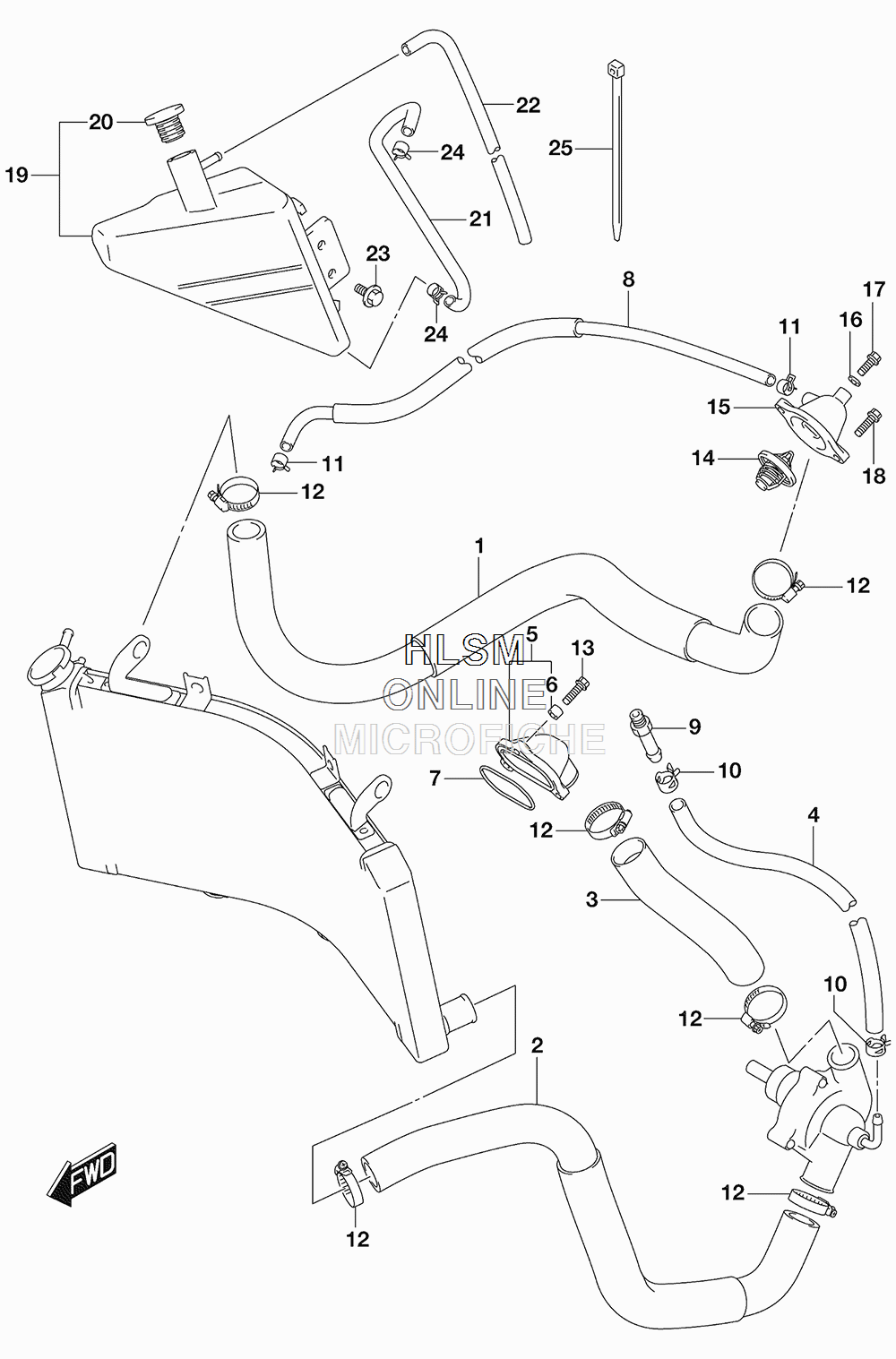

RADIATOR HOSE W/ RESERVOIR для Suzuki GSX-1300RA L5 HAYABUSA - 2015 года выпуска
-
№АртикулНазвание
-
117851-15H00 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
217852-15H00 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
317853-24F00 HOSE, CYLINDER INLETHOSE, CYLINDER INLET
-
417854-24F00 HOSE, WATER BYPASSHOSE, WATER BYPASS
-
517861-33E20 CONNECTORCONNECTOR
-
609180-06261 SPACER (6.5X9X8)SPACER (6.5X9X8)
-
717863-33E00 O RINGO RING
-
817855-15H00 HOSE, WATER AIR BLEEDHOSE, WATER AIR BLEED
-
909362-09011 UNIONUNION
-
1009401-12414 CLIPCLIP
-
1109401-10409 CLIPCLIP
-
1209402-35501 CLAMPCLAMP
-
1301547-0620A BOLTBOLT
-
1417670-15H00 THERMOSTAT, WATERTHERMOSTAT, WATER
-
1517661-35F00 COVER, THERMOSTATCOVER, THERMOSTAT
-
1609168-06026 GASKET (6.4X11.5X0.8)GASKET (6.4X11.5X0.8)
-
1717568-50F00 UNION, AIR VENTUNION, AIR VENT
-
1801547-0620A BOLTBOLT
-
1917910-15H00 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
2017931-02FA0 CAPCAP
-
2117981-15H00 HOSE, RESERVER TANK INLETHOSE, RESERVER TANK INLET
-
2217982-22H00 HOSE, RESERVER TANK OVERFLOWHOSE, RESERVER TANK OVERFLOW
-
2309111-06085 BOLT (6X12)BOLT (6X12)
-
2409401-08411 CLIPCLIP
-
2509407-14407 CLAMP (L:145)CLAMP (L:145)
