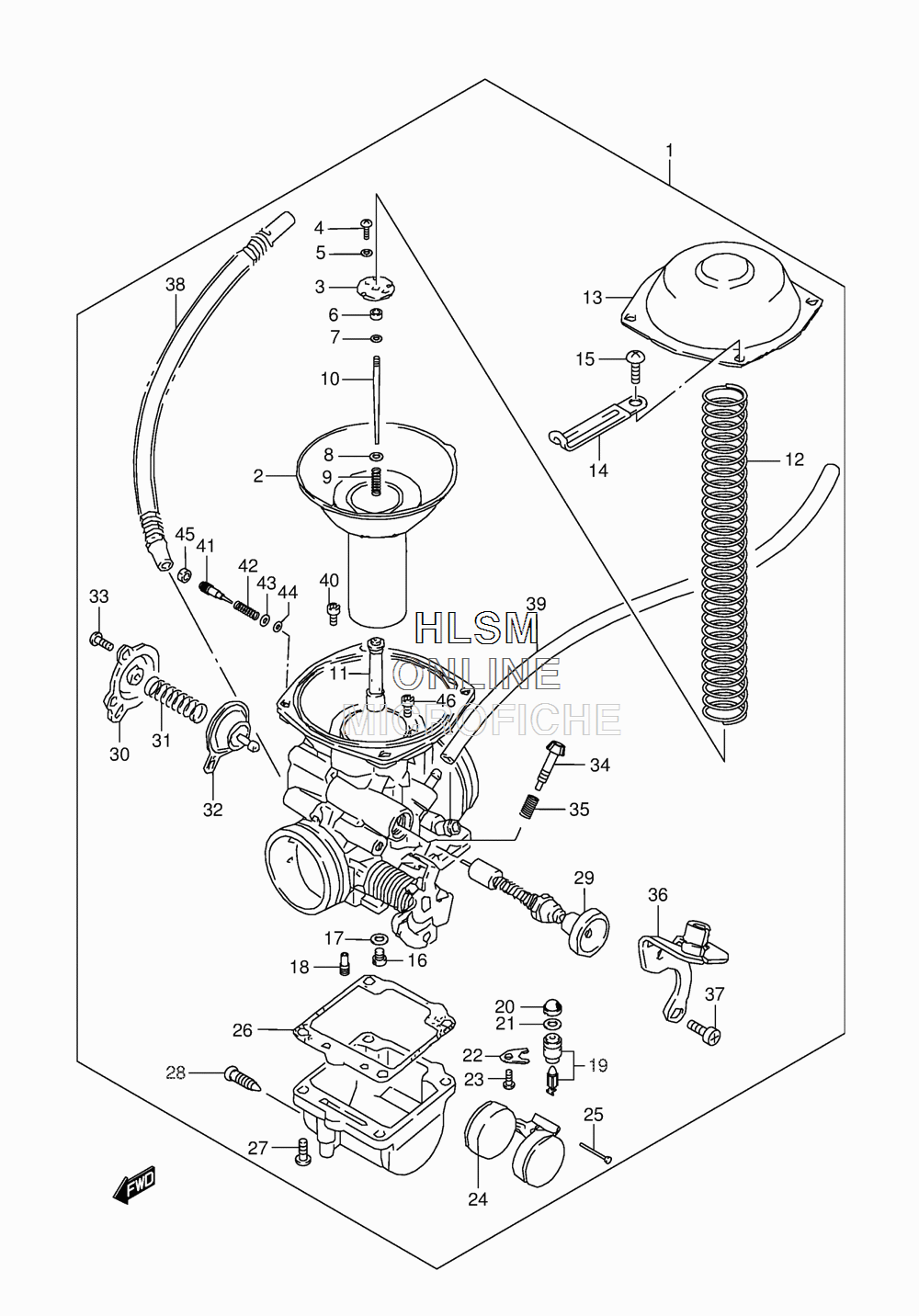

CARBURETOR ASSY. для Suzuki LS650 L4 - 2014 года выпуска`
-
№АртикулНазвание
-
113200-24C41 CARBURETOR ASSYCARBURETOR ASSY
-
213500-24B40 DIAPHRAGM ASSYDIAPHRAGM ASSY
-
313389-37400 PLATEPLATE
-
402112-0306B SCREWSCREW
-
508321-2103B LOCK WASHERLOCK WASHER
-
613387-44030 RINGRING
-
713394-31210 CLIP NEEDLECLIP NEEDLE
-
813382-44030 WASHERWASHER
-
913388-44030 SPRINGSPRING
-
1013383-24C40 NEEDLE, JET (5C17)NEEDLE, JET (5C17)
-
1109494-00861 JET, NEEDLE (X-7)JET, NEEDLE (X-7)
-
1213503-24B00 SPRINGSPRING
-
1313502-37400 COVERCOVER
-
1409404-06433 CLAMP (L:95)CLAMP (L:95)
-
1502112-0510A SCREWSCREW
-
1609491-29013 JET, MAIN (145)JET, MAIN (145)
-
1713382-03110 WASHERWASHER
-
1809492-52010 JET, PILOT (52.5)JET, PILOT (52.5)
-
1913370-24C80 VALVE ASSY, NEEDLEVALVE ASSY, NEEDLE
-
2013376-19F00 FILTERFILTER
-
2113374-35C00 O RINGO RING
-
2213373-39110 PLATEPLATE
-
2302112-0406B SCREWSCREW
-
2413250-37400 FLOATFLOAT
-
2513254-92311 PIN, FLOATPIN, FLOAT
-
2613251-38300 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
2702112-0516A SCREWSCREW
-
2813247-13A00 SCREW, DRAINSCREW, DRAIN
-
2913411-24C00 PLUNGER ASSYPLUNGER ASSY
-
3013484-38A10 COVERCOVER
-
3113481-24B00 SPRINGSPRING
-
3213480-05A10 DIAPHRAGM ASSYDIAPHRAGM ASSY
-
3302112-0410A SCREWSCREW
-
3413267-25D00 ADJUSTERADJUSTER
-
3513271-93011 SPRINGSPRING
-
3613621-24B01 BRACKET ASSYBRACKET ASSY
-
3702112-0510A SCREWSCREW
-
3813318-24C00 HOSE ASSYHOSE ASSY
-
3909352-50823-600 HOSE (5X8.2X600)HOSE (5X8.2X600)
-
4009491-46005 JET, PILOT (230)JET, PILOT (230)
-
4113269-37400 SCREW, AIRSCREW, AIR
-
4213268-47070 SPRINGSPRING
-
4313291-29900 WASHERWASHER
-
4413295-29900 O RINGO RING
-
4513281-05A00 PLUGPLUG
-
4609491-45002 JET (#45)JET (#45)
