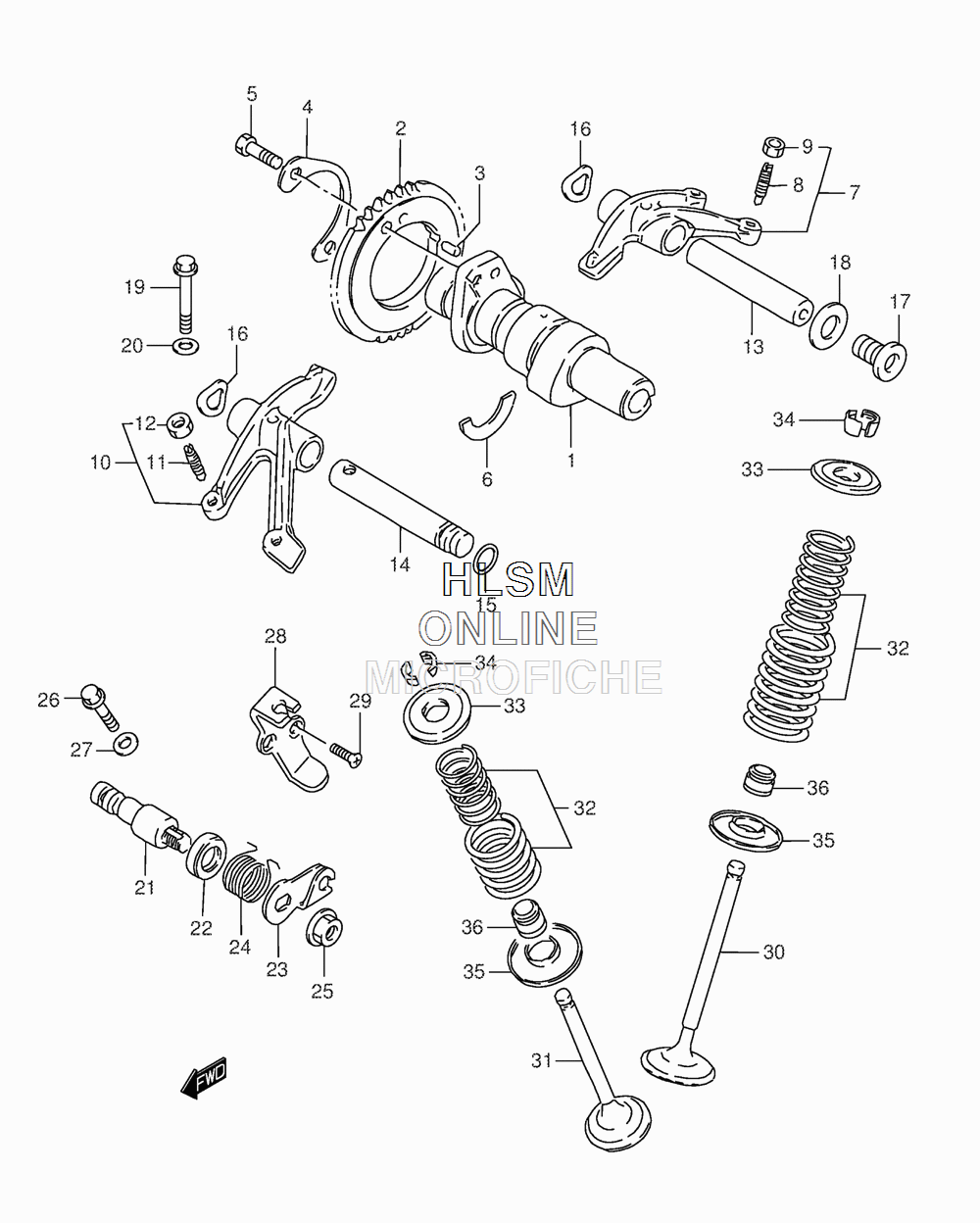

CAMSHAFT W/ VALVES для Suzuki LS650 L4 - 2014 года выпуска

№

Артикул

Название
1

12711-24B11 CAM SHAFT

CAM SHAFT
2

12741-24B00 SPROCKET, CAM SHAFT (NT:38)

SPROCKET, CAM SHAFT (NT:38)
3

09261-05009 PIN (5X12.9)

PIN (5X12.9)
4

12747-44001 WASHER, SPROCKET

WASHER, SPROCKET
5

09111-06053 BOLT (6X16)

BOLT (6X16)
6

09390-25003 C-RING

C-RING
7

12840-24B10 ARM, INTAKE VALVE ROCKER

ARM, INTAKE VALVE ROCKER
8

12842-32411 SCREW, TAPPET ADJUSTING

SCREW, TAPPET ADJUSTING
9

12843-32400 NUT, TAPPET ADJUSTING

NUT, TAPPET ADJUSTING
10

12850-24B10 ARM, EXHAUST VALVE ROCKER

ARM, EXHAUST VALVE ROCKER
11

12842-32411 SCREW, TAPPET ADJUSTING

SCREW, TAPPET ADJUSTING
12

12843-32400 NUT, TAPPET ADJUSTING

NUT, TAPPET ADJUSTING
13

12861-12D00 SHAFT, INTAKE VALVE ROCKER ARM

SHAFT, INTAKE VALVE ROCKER ARM
14

12871-14A00 SHAFT, EXHAUST VALVE ROCKER ARM

SHAFT, EXHAUST VALVE ROCKER ARM
15

09280-09005 O RING (D:1.9,ID:8.6)

O RING (D:1.9,ID:8.6)
16

09164-12018 WASHER

WASHER
17

09248-14005 PLUG (14X12)

PLUG (14X12)
18

09168-14002 GASKET (13.8X18.8X4.8)

GASKET (13.8X18.8X4.8)
19

02162-0630B BOLT

BOLT
20

09168-06023 GASKET (5.8X13X1.2)

GASKET (5.8X13X1.2)
21

12941-24B01 SHAFT, DECOMP LEFT HAND

SHAFT, DECOMP LEFT HAND
22

09282-10012 OIL SEAL (10X20X6)

OIL SEAL (10X20X6)
23

12942-24B00 LEVER, DECOMP SHAFT LEFT HAND

LEVER, DECOMP SHAFT LEFT HAND
24

09448-17020 SPRING

SPRING
25

08316-1008B NUT

NUT
26

09103-06090 BOLT (6X16)

BOLT (6X16)
27

09168-06023 GASKET (5.8X13X1.2)

GASKET (5.8X13X1.2)
28

12944-24B00 HOLDER, DECOMP CABLE LEFT HAND

HOLDER, DECOMP CABLE LEFT HAND
29

02122-0510B SCREW

SCREW
30

12911-24B01 VALVE, INTAKE

VALVE, INTAKE
31

12912-24B01 VALVE, EXHAUST

VALVE, EXHAUST
32

12920-37402 SPRING SET, VALVE

SPRING SET, VALVE
33

12931-45001 RETAINER, VALVE SPRING

RETAINER, VALVE SPRING
34

12932-82000 COTTER, VALVE

COTTER, VALVE
35

12933-37400 SEAT, VALVE SPRING

SEAT, VALVE SPRING
36

09289-07002 OIL SEAL (7X14.4X9)

OIL SEAL (7X14.4X9)
