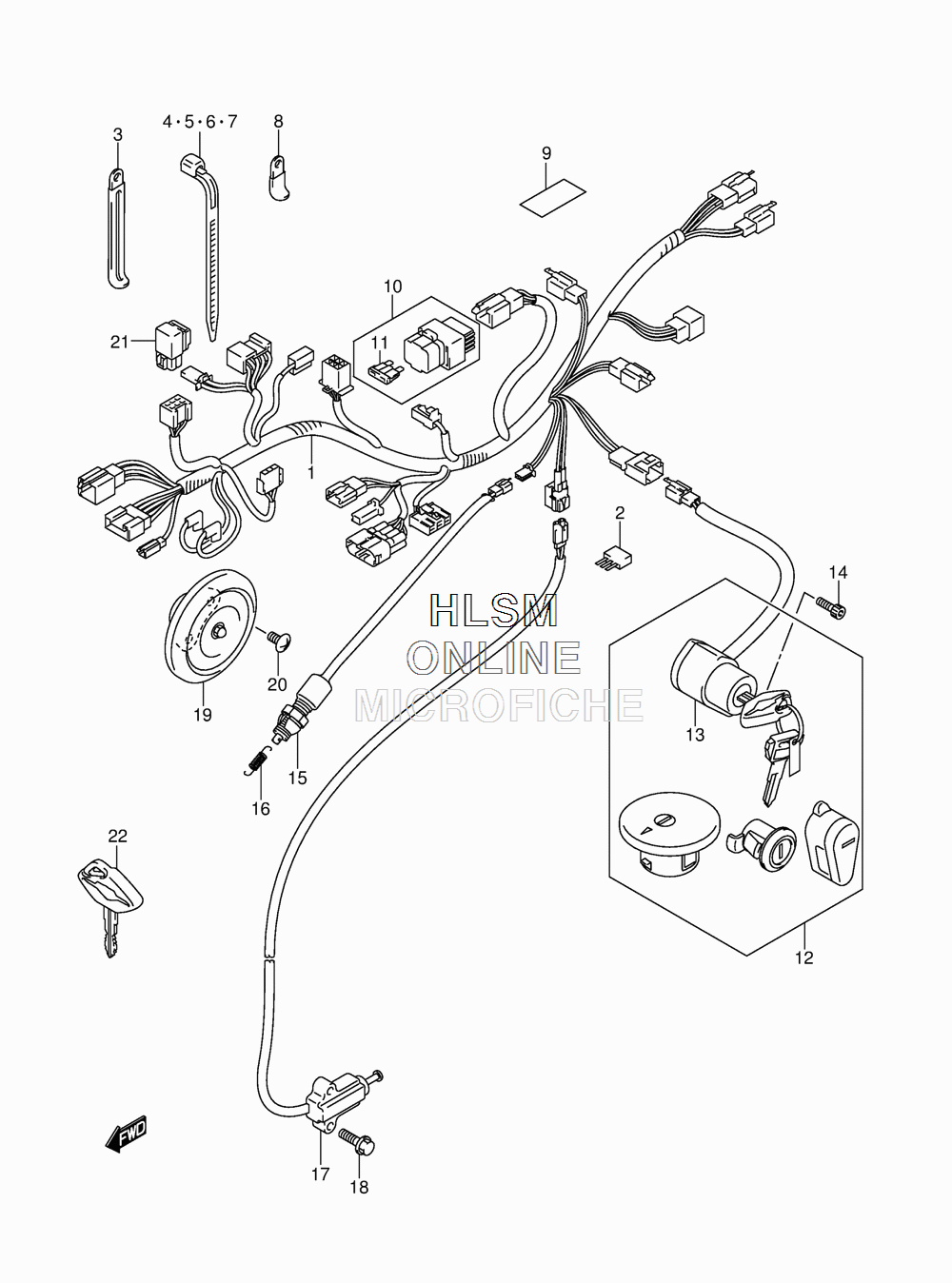

ELECTRICAL - WIRING HARNESS (CANADA) для Suzuki LS650 L4 - 2014 года выпуска`
-
№АртикулНазвание
-
136610-24BD0 HARNESS, WIRINGHARNESS, WIRING
-
236611-38A00 DIODEDIODE
-
309404-08419 CLAMP (L:97)CLAMP (L:97)
-
409407-11401 CLAMP (L:95)CLAMP (L:95)
-
509407-14403 CLAMP (L:125)CLAMP (L:125)
-
609407-18402 CLAMP (L:165)CLAMP (L:165)
-
709407-25401 CLAMP (L:235)CLAMP (L:235)
-
836651-24B10 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
936930-60A10 TAPE, WIRING HARNESSTAPE, WIRING HARNESS
-
1036740-24B01 FUSE ASSY, MAINFUSE ASSY, MAIN
-
1109481-20101 FUSE (20A)FUSE (20A)
-
1237101-24830 LOCK SETLOCK SET
-
1337110-24B10 SWITCH ASSY, IGNITIONSWITCH ASSY, IGNITION
-
1407130-0516B BOLTBOLT
-
1537740-45D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1609443-06077 SPRINGSPRING
-
1737840-12X50 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1801550-0620B BOLTBOLT
-
1938500-24B00 HORN ASSYHORN ASSY
-
2002142-0612B SCREWSCREW
-
2138740-24X50 RELAY ASSY, SIDE STAND WARINGRELAY ASSY, SIDE STAND WARING
-
2237146-38B00 KEY,BLANK (TYPE C)KEY,BLANK (TYPE C)
-
2237146-38B10 KEY,BLANK (TYPE D)KEY,BLANK (TYPE D)
