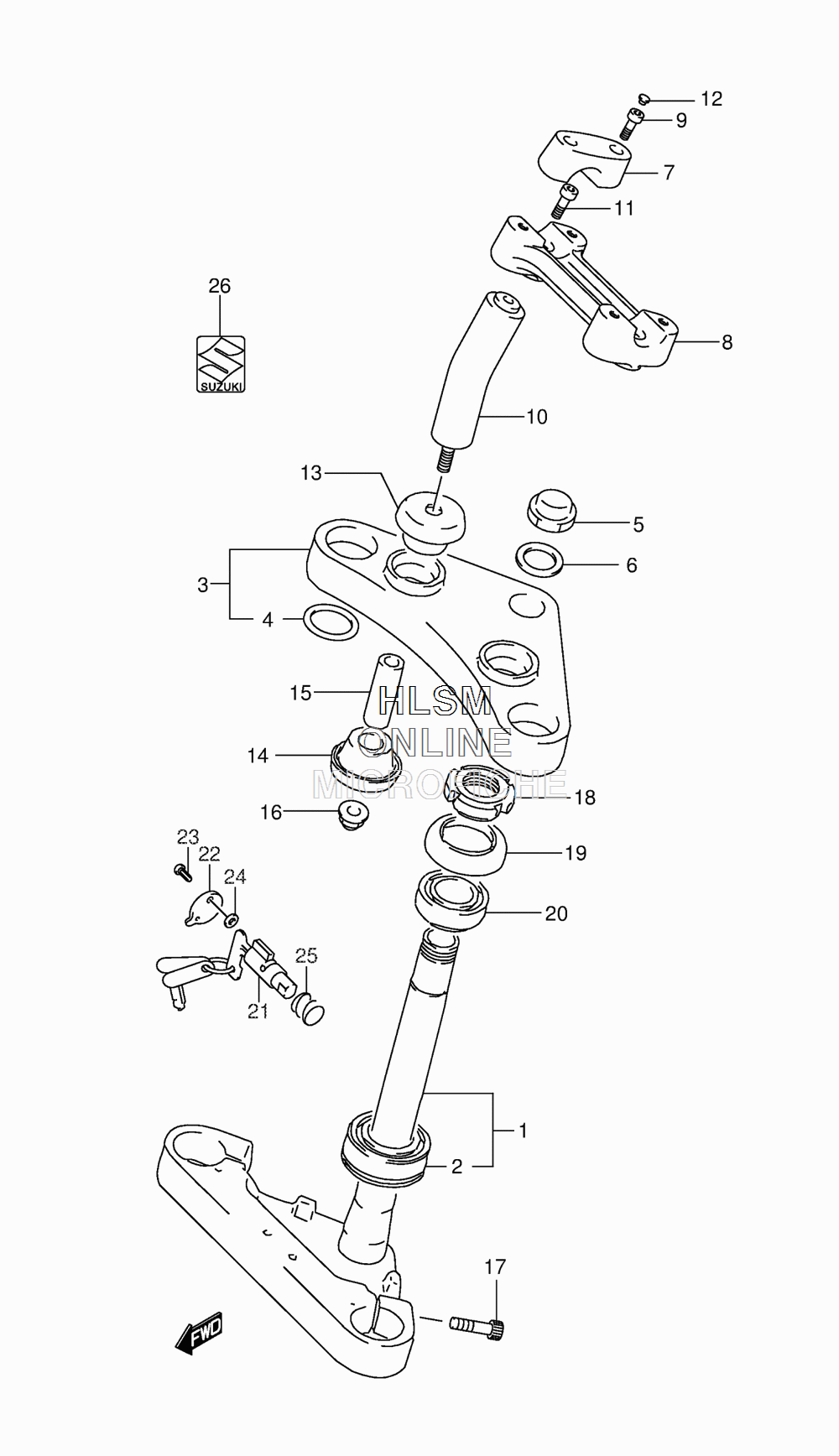

STEERING STEM для Suzuki LS650 L4 - 2014 года выпуска`
-
№АртикулНазвание
-
151410-24B20 STEM, STEERINGSTEM, STEERING
-
209265-30009 BEARING (30X55X17)BEARING (30X55X17)
-
351310-24B50 HEAD, STEERING STEMHEAD, STEERING STEM
-
451357-24B00 WASHERWASHER
-
551353-24B10 NUT, CAPNUT, CAP
-
651356-24B01 WASHERWASHER
-
756211-24B50 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
856221-24B50 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
907130-08307 BOLTBOLT
-
1056231-24B50 ARMARM
-
1107130-10257 BOLTBOLT
-
1209250-06009 CAP (OD:14.5)CAP (OD:14.5)
-
1356240-24B00 CUSHION, UPPERCUSHION, UPPER
-
1456240-24B10 CUSHION, LOWERCUSHION, LOWER
-
1509180-10065 SPACER (10.2X14X46)SPACER (10.2X14X46)
-
1608319-31107 NUTNUT
-
1707130-10307 BOLTBOLT
-
1851631-28000 NUT, STEERING STEMNUT, STEERING STEM
-
1951643-49002 DUST SEAL, STEERING UPPERDUST SEAL, STEERING UPPER
-
2009265-25019 BEARING (25X47X15)BEARING (25X47X15)
-
2151900-29F00 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
2251912-29F00 CAP, STEERING LOCKCAP, STEERING LOCK
-
2351913-29F00 PIN, STEERING LOCKPIN, STEERING LOCK
-
2451914-29F00 WASHER, STEERING LOCKWASHER, STEERING LOCK
-
2551931-29F00 SPRING, STEERING LOCKSPRING, STEERING LOCK
-
2668281-47HA0 EMBLEM, ''S''EMBLEM, ''S''
