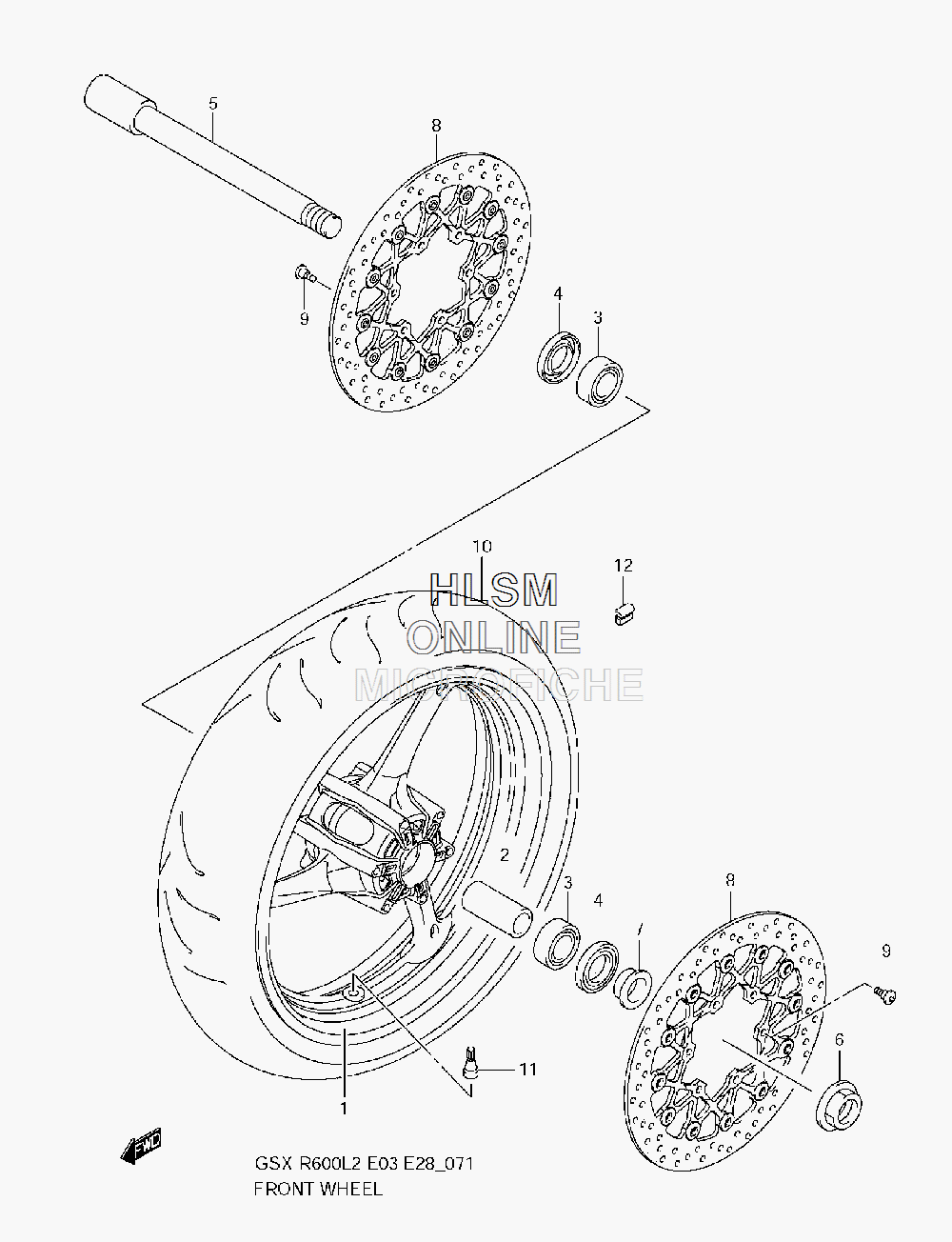

WHEEL - FRONT для Suzuki GSX-R600 L2 - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    54111-14J00-28W WHEEL, FRONT (17M/CXMT3.50) (WHITE) (GLR FOR BLUE METALLIC)
    WHEEL, FRONT (17M/CXMT3.50) (WHITE) (GLR FOR BLUE METALLIC)
  • 1
    54111-14J00-019 WHEEL, FRONT (17M/CXMT3.50) (BLACK) (44X FOR SPARKLE BLACK)
    WHEEL, FRONT (17M/CXMT3.50) (BLACK) (44X FOR SPARKLE BLACK)
  • 2
    54731-14J00 SPACER, HUB BEARING
    SPACER, HUB BEARING
  • 3
    09262-22035 BEARING (22X44X12)
    BEARING (22X44X12)
  • 4
    09283-28016 OIL SEAL (28X44X7.5)
    OIL SEAL (28X44X7.5)
  • 5
    54711-14J00 AXLE, FRONT
    AXLE, FRONT
  • 6
    62994-47H00 NUT, AXLE
    NUT, AXLE
  • 7
    54751-14J00 SPACER, FRONT AXLE LEFT HAND
    SPACER, FRONT AXLE LEFT HAND
  • 8
    59210-37H01 DISC, FRONT BRAKE
    DISC, FRONT BRAKE
  • 9
    09106-06124 BOLT (6X21)
    BOLT (6X21)
  • 10
    55110-14J00 TIRE, FRONT, 120/70 ZR17M/C (58W)
    TIRE, FRONT, 120/70 ZR17M/C (58W)
  • 11
    43130-24A00 VALVE ASSY, WHEEL RIM (TR412)
    VALVE ASSY, WHEEL RIM (TR412)
  • 12
    55411-22H00 BALANCER, WHEEL NO.1
    BALANCER, WHEEL NO.1
  • 12
    55412-22H00 BALANCER, WHEEL NO.2
    BALANCER, WHEEL NO.2
  • 12
    55413-22H00 BALANCER, WHEEL NO.3
    BALANCER, WHEEL NO.3
