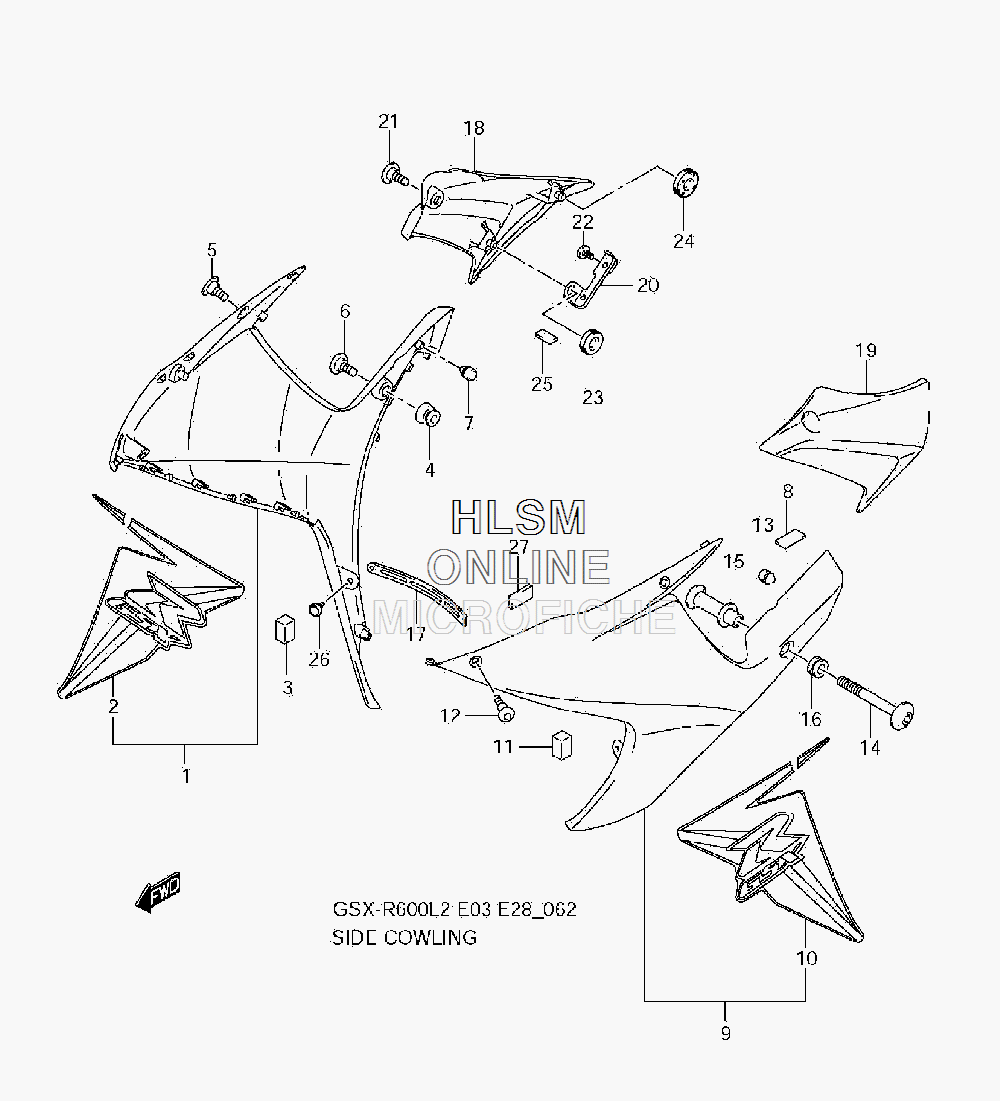

COWLING - SIDE (TRITON BLUE METALLIC) для Suzuki GSX-R600 L2 - 2012 года выпуска
-
№АртикулНазвание
-
194450-14J00-YBD COWLING, SIDE RIGHT HAND (GLR - WHITE) (INCL. 2)COWLING, SIDE RIGHT HAND (GLR - WHITE) (INCL. 2)
-
268685-14J00-JRP TAPE, RIGHT HANDTAPE, RIGHT HAND
-
394477-14J01 CUSHIONCUSHION
-
494479-15H00 CUSHION, SIDE COWLING RIGHT HANDCUSHION, SIDE COWLING RIGHT HAND
-
509139-05064 SCREW (5X13)SCREW (5X13)
-
609139-06190 BOLT (6X20)BOLT (6X20)
-
709321-06013 CUSHIONCUSHION
-
844543-10G00 PROTECTOR, SIDE COWLING LEFT HANDPROTECTOR, SIDE COWLING LEFT HAND
-
994460-14J00-YBD COWLING, SIDE LEFT HAND (GLR - WHITE) (INCL. 10)COWLING, SIDE LEFT HAND (GLR - WHITE) (INCL. 10)
-
1068695-14J00-JRP TAPE, LEFT HANDTAPE, LEFT HAND
-
1194477-14J01 CUSHIONCUSHION
-
1209139-05064 SCREW (5X13)SCREW (5X13)
-
1309321-06013 CUSHIONCUSHION
-
1494488-14J00 SCREW, SIDE COWLING LEFT HANDSCREW, SIDE COWLING LEFT HAND
-
1594489-14J00 SPACER, SIDE COWLING LEFT HANDSPACER, SIDE COWLING LEFT HAND
-
1609320-09016 CUSHIONCUSHION
-
1794498-14J00 PLATE, UNDER COWLING CENTERPLATE, UNDER COWLING CENTER
-
1894570-14J00 COVER, SIDE COWLING RIGHT HANDCOVER, SIDE COWLING RIGHT HAND
-
1994580-14J00 COVER, SIDE COWLING LEFT HANDCOVER, SIDE COWLING LEFT HAND
-
2094491-14J00 BRACKET, COVER SIDE RIGHT HANDBRACKET, COVER SIDE RIGHT HAND
-
2109139-05064 SCREW (5X13)SCREW (5X13)
-
2209139-06062 SCREW (6X12)SCREW (6X12)
-
2309320-08013 CUSHIONCUSHION
-
2409320-08028 CUSHIONCUSHION
-
2594612-31F00 CUSHION, BRACKET COVER RIGHT HANDCUSHION, BRACKET COVER RIGHT HAND
-
2694479-35F00 CLIP, UNDER CTRCLIP, UNDER CTR
-
2733652-29F00 CUSHIONCUSHION
