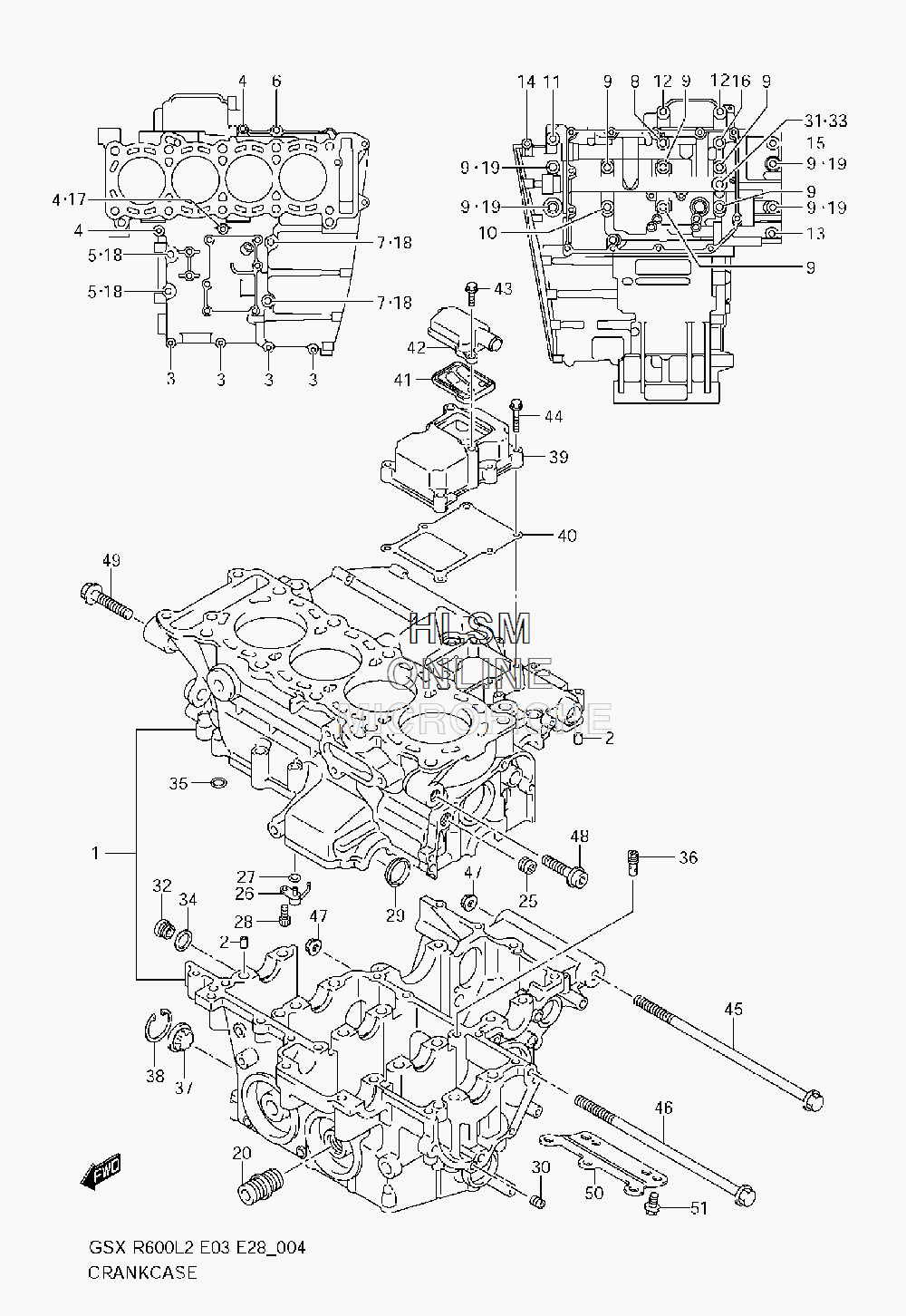

CRANKCASE для Suzuki GSX-R600 L2 - 2012 года выпуска`
-
№АртикулНазвание
-
111302-14810 CRANKCASE SETCRANKCASE SET
-
211319-33E50 PINPIN
-
301547-0635A BOLTBOLT
-
401547-0665A BOLTBOLT
-
501550-0850A BOLTBOLT
-
601550-0860A BOLTBOLT
-
701550-0875A BOLTBOLT
-
809103-08097 BOLT (8X105)BOLT (8X105)
-
909103-09012 BOLT (9X95)BOLT (9X95)
-
1009103-09014 BOLT (9X80)BOLT (9X80)
-
1101550-0855A BOLT, EGR VALVEBOLT, EGR VALVE
-
1209103-08339 BOLT (8X55)BOLT (8X55)
-
1301547-0630A BOLTBOLT
-
1401547-0645A BOLTBOLT
-
1501550-0865A BOLTBOLT
-
1601550-0885A BOLTBOLT
-
1709168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1809168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
1909168-10031 GASKET (10.2X20X2.3)GASKET (10.2X20X2.3)
-
2016591-06B01 UNION, OIL FILTER STANDUNION, OIL FILTER STAND
-
2109280-00043 O RING (D:1.9,ID:99.5) DRIVESHAFT BEARING COVER (NOT SHOWN)O RING (D:1.9,ID:99.5) DRIVESHAFT BEARING COVER (NOT SHOWN)
-
2209139-06151 BOLT (6X20) DRIVESHAFT BEARING COVER (NOT SHOWN)BOLT (6X20) DRIVESHAFT BEARING COVER (NOT SHOWN)
-
2312228-17E00-0D0 BEARING, THRUST RIGHT HAND (GREEN)BEARING, THRUST RIGHT HAND (GREEN)
-
2412228-17E00-0A0 BEARING, THRUST LEFT HAND (RED)BEARING, THRUST LEFT HAND (RED)
-
2412228-17E00-0B0 BEARING, THRUST LEFT HAND (BLACK)BEARING, THRUST LEFT HAND (BLACK)
-
2412228-17E00-0C0 BEARING, THRUST LEFT HAND (BLUE)BEARING, THRUST LEFT HAND (BLUE)
-
2412228-17E00-0D0 BEARING, THRUST LEFT HAND (GREEN)BEARING, THRUST LEFT HAND (GREEN)
-
2412228-17E00-0E0 BEARING, THRUST LEFT HAND (YELLOW)BEARING, THRUST LEFT HAND (YELLOW)
-
2412228-17E00-0F0 BEARING, THRUST LEFT HAND (WHITE)BEARING, THRUST LEFT HAND (WHITE)
-
2511329-02F00 JET, OIL GALLERYJET, OIL GALLERY
-
2611390-35F00 JET, PISTON COOLINGJET, PISTON COOLING
-
2709280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
2809106-06075 BOLT (6X12)BOLT (6X12)
-
2909241-26004 PLUGPLUG
-
3009246-05006 PLUGPLUG
-
3109248-12004 PLUG (L:12)PLUG (L:12)
-
3209248-16013 PLUGPLUG
-
3309168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
3409168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
3509280-08012 O RING (D:1.9,ID:7.8)O RING (D:1.9,ID:7.8)
-
3609493-28012 JET (140)JET (140)
-
3711971-33210 LENS, OIL LEVELLENS, OIL LEVEL
-
3808331-4130A CIRCLIPCIRCLIP
-
3911371-01H00 COVER, BREATHERCOVER, BREATHER
-
4011484-01H00 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
4113150-01H00 VALVE ASSY, BREATHER REEDVALVE ASSY, BREATHER REED
-
4211372-01H00 COVER, VALVECOVER, VALVE
-
4301547-0616A BOLTBOLT
-
4401547-0630A BOLTBOLT
-
4509103-10041-A05 BOLT (10X215)BOLT (10X215)
-
4609103-10145 BOLT (10X205)BOLT (10X205)
-
4709159-10115 NUTNUT
-
4809106-10069 BOLT (10X45)BOLT (10X45)
-
4909106-10070 BOLT (10X55)BOLT (10X55)
-
5011322-01H00 PLATE, LOWERPLATE, LOWER
-
5109103-06188 BOLT (6X10)BOLT (6X10)
