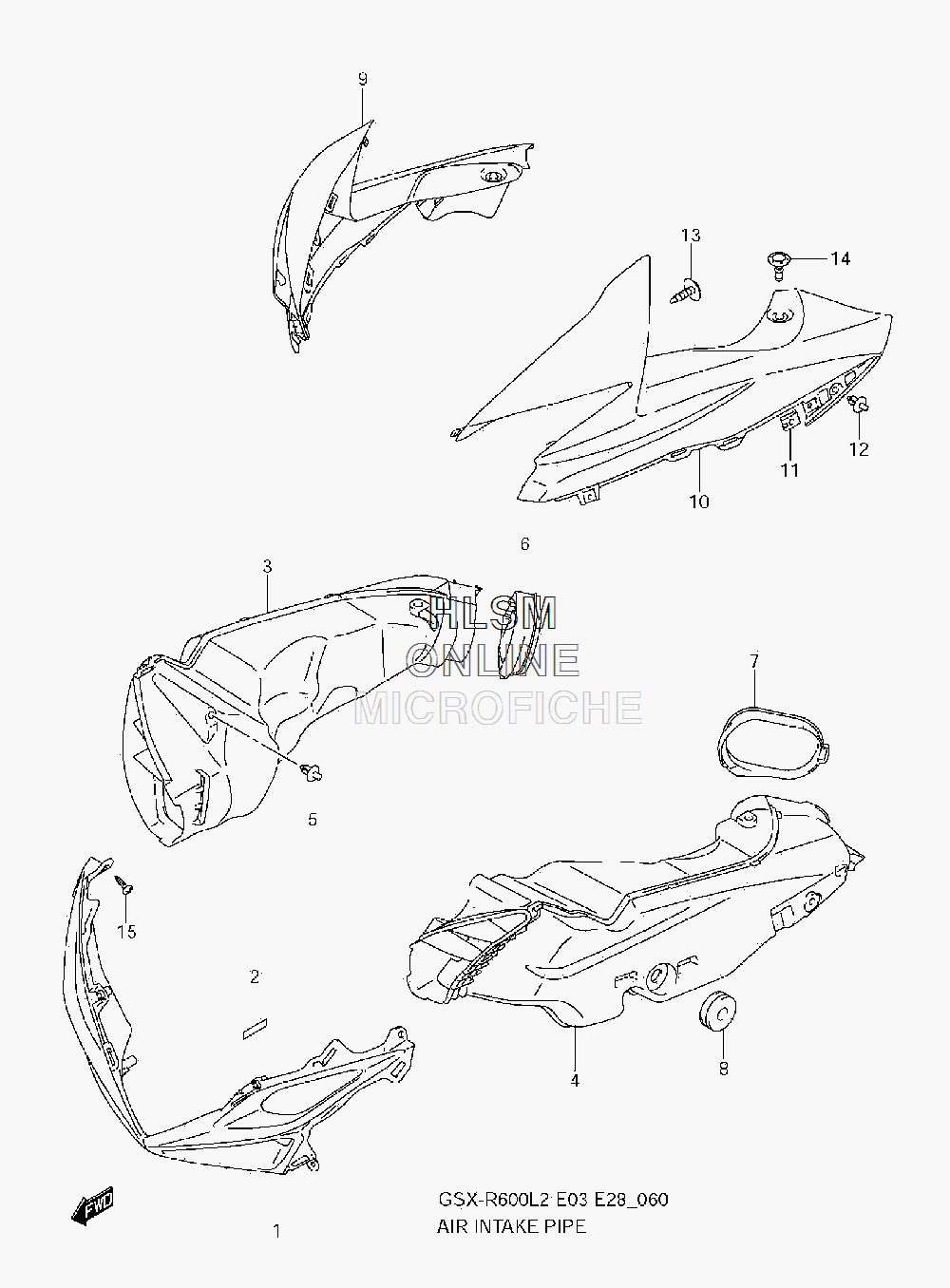

AIR INTAKE для Suzuki GSX-R600 L2 - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    94671-14J10-019 COVER, INTAKE FRONT (BLACK) (GLR FOR BLUE METALLIC)
    COVER, INTAKE FRONT (BLACK) (GLR FOR BLUE METALLIC)
  • 1
    94671-14J10-YHL COVER, INTAKE FRONT (RED) (44X FOR SPARKLE BLACK)
    COVER, INTAKE FRONT (RED) (44X FOR SPARKLE BLACK)
  • 2
    94443-06G00 TAPE
    TAPE
  • 3
    94420-14J00 PIPE, INTAKE RIGHT HAND
    PIPE, INTAKE RIGHT HAND
  • 4
    94430-14J00 PIPE, INTAKE LEFT HAND
    PIPE, INTAKE LEFT HAND
  • 5
    09409-06314-5PK CLIP (BLACK)
    CLIP (BLACK)
  • 6
    94423-14J00 MOLDING, RIGHT HAND
    MOLDING, RIGHT HAND
  • 7
    94433-14J00 MOLDING, LEFT HAND
    MOLDING, LEFT HAND
  • 8
    09320-08028 CUSHION
    CUSHION
  • 9
    94672-14J00-YSF COVER, INTAKE SIDE RIGHT HAND (BLUE) (GLR FOR BLUE METALLIC)
    COVER, INTAKE SIDE RIGHT HAND (BLUE) (GLR FOR BLUE METALLIC)
  • 9
    94672-14J00-YKV COVER, INTAKE SIDE RIGHT HAND (BLACK) (44X FOR SPARKLE BLACK)
    COVER, INTAKE SIDE RIGHT HAND (BLACK) (44X FOR SPARKLE BLACK)
  • 10
    94682-14J00-YSF COVER, INTAKE SIDE LEFT HAND (BLUE) (GLR FOR BLUE METALLIC)
    COVER, INTAKE SIDE LEFT HAND (BLUE) (GLR FOR BLUE METALLIC)
  • 10
    94682-14J00-YKV COVER, INTAKE SIDE LEFT HAND (BLACK) (44X FOR SPARKLE BLACK)
    COVER, INTAKE SIDE LEFT HAND (BLACK) (44X FOR SPARKLE BLACK)
  • 11
    09148-05052 NUT
    NUT
  • 12
    09409-06314-5PK CLIP (BLACK)
    CLIP (BLACK)
  • 13
    09132-05050 SCREW (5X12)
    SCREW (5X12)
  • 14
    94479-35F00 CLIP, REAR
    CLIP, REAR
  • 15
    03541-0512A SCREW
    SCREW
