GASKET SET для Suzuki LS-650 L1 - 2011 года выпуска

  • №
    Артикул
    Название
  • 1

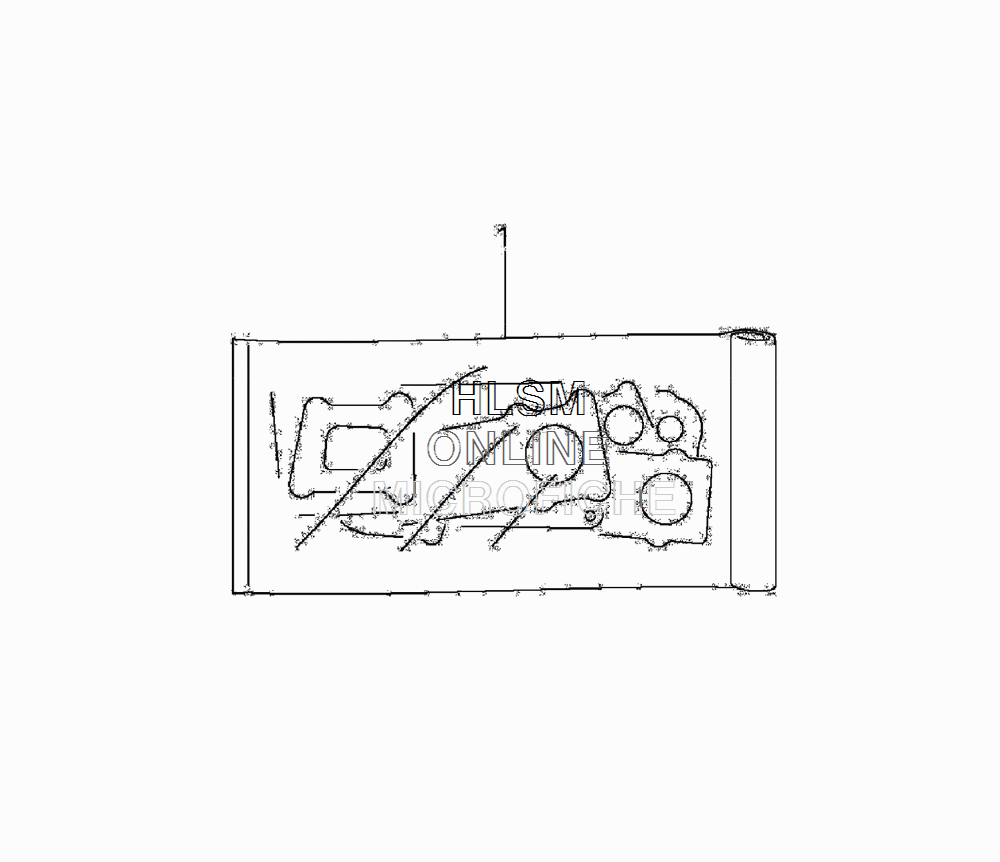

    11400-24880 GASKET SET
    GASKET SET
  • 2
    11141-24B03 GASKET, CYLINDER HEAD (NOT SHOWN)
    GASKET, CYLINDER HEAD (NOT SHOWN)
  • 3
    11178-24B00 O RING, HEAD COVER (NOT SHOWN)
    O RING, HEAD COVER (NOT SHOWN)
  • 4
    11241-24B01-H17 GASKET, CYLINDER (NOT SHOWN)
    GASKET, CYLINDER (NOT SHOWN)
  • 5
    11482-24B20 GASKET, CLUTCH COVER (NOT SHOWN)
    GASKET, CLUTCH COVER (NOT SHOWN)
  • 6
    11483-24B01-H17 GASKET, GENERATOR COVER (NOT SHOWN)
    GASKET, GENERATOR COVER (NOT SHOWN)
  • 7
    11485-24B20 GASKET, GEAR SHIFT COVER (NOT SHOWN)
    GASKET, GEAR SHIFT COVER (NOT SHOWN)
  • 8
    14181-45C00 GASKET, EXHAUST PIPE (NOT SHOWN)
    GASKET, EXHAUST PIPE (NOT SHOWN)
  • 9
    09168-06023 GASKET (5.8X13X1.2) (NOT SHOWN)
    GASKET (5.8X13X1.2) (NOT SHOWN)
  • 10
    09168-10031 GASKET (10.2X20X2.3) (NOT SHOWN)
    GASKET (10.2X20X2.3) (NOT SHOWN)
  • 11
    09280-07004 O RING (D:1.9,ID:6.8) (NOT SHOWN)
    O RING (D:1.9,ID:6.8) (NOT SHOWN)
  • 12
    09280-09005 O RING (D:1.9,ID:8.6) (NOT SHOWN)
    O RING (D:1.9,ID:8.6) (NOT SHOWN)
  • 13
    09280-10013 O RING (D:2.4,ID:9.6) (NOT SHOWN)
    O RING (D:2.4,ID:9.6) (NOT SHOWN)
  • 14
    09280-15007 O RING (D:2.4,ID:15.8) (NOT SHOWN)
    O RING (D:2.4,ID:15.8) (NOT SHOWN)
  • 15
    09280-17003 O RING (D:3.1,ID:16.8) (NOT SHOWN)
    O RING (D:3.1,ID:16.8) (NOT SHOWN)
  • 16
    09280-24010 O RING (D:2.4,ID:23.7) (NOT SHOWN)
    O RING (D:2.4,ID:23.7) (NOT SHOWN)
  • 17
    09280-33004 O RING (D:3.1,ID:32.7) (NOT SHOWN)
    O RING (D:3.1,ID:32.7) (NOT SHOWN)
  • 18
    09280-46002 O RING (D:2.4,ID:45.7) (NOT SHOWN)
    O RING (D:2.4,ID:45.7) (NOT SHOWN)
  • 19
    09280-60004 O RING (D:2.4,ID:23.0) (NOT SHOWN)
    O RING (D:2.4,ID:23.0) (NOT SHOWN)
  • 20
    09280-72001 O RING (D:2.4,ID:73.0) (NOT SHOWN)
    O RING (D:2.4,ID:73.0) (NOT SHOWN)
