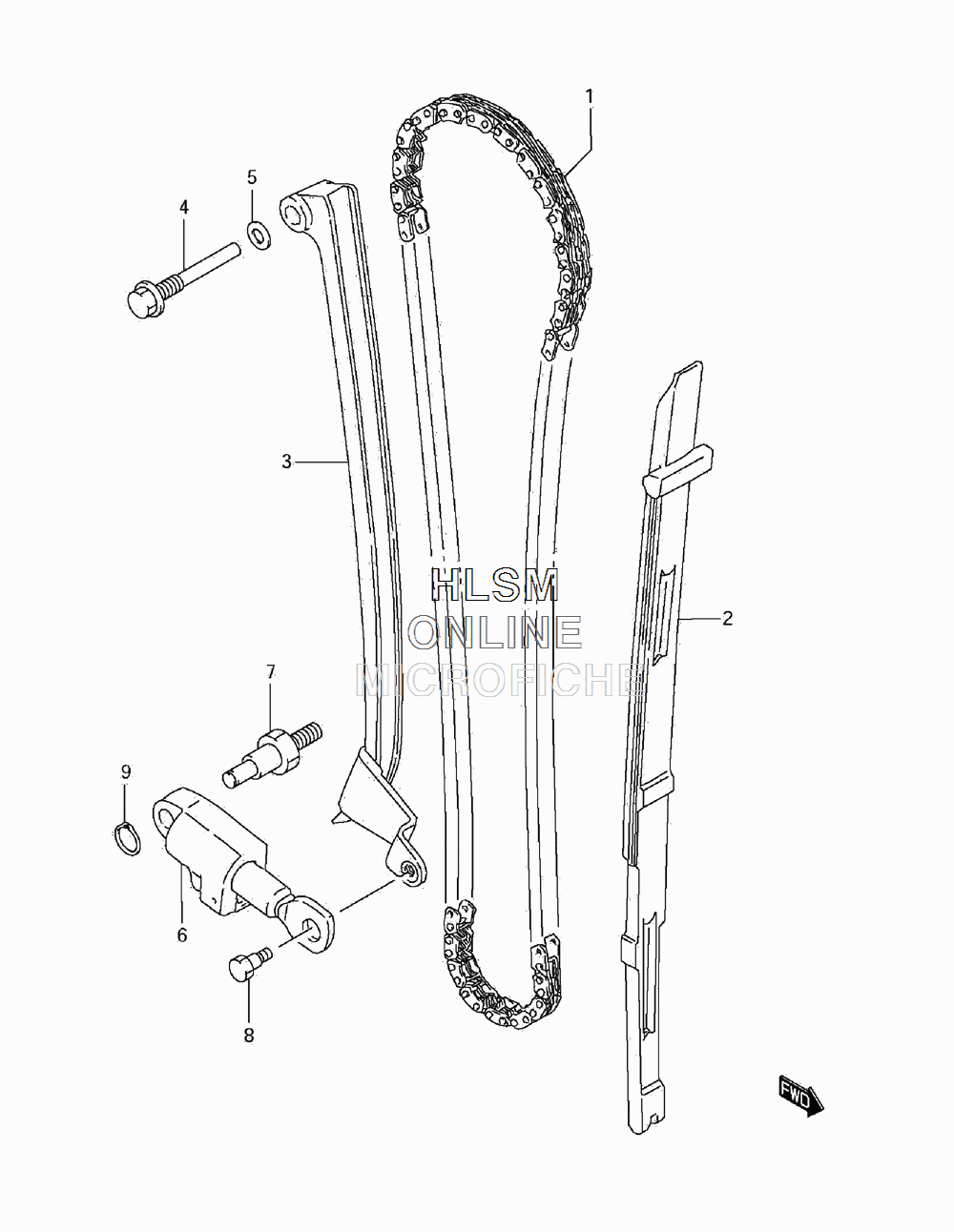

CAM CHAIN ASSY. W/ TENSIONER для Suzuki LS-650 L1 - 2011 года выпуска`
-
№АртикулНазвание
-
112760-24B00 CHAIN, CAM SHAFT DRIVE 132LECHAIN, CAM SHAFT DRIVE 132LE
-
212771-24B01 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312811-24B00 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
412812-24B00 BOLT, CAM CHAIN TENSIONERBOLT, CAM CHAIN TENSIONER
-
509168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
612830-24B01 ADJUSTER ASSY, TENSIONERADJUSTER ASSY, TENSIONER
-
709108-08194 BOLT (8X18)BOLT (8X18)
-
809119-06069 BOLT (6X12)BOLT (6X12)
-
908331-3108A CIRCLIPCIRCLIP
