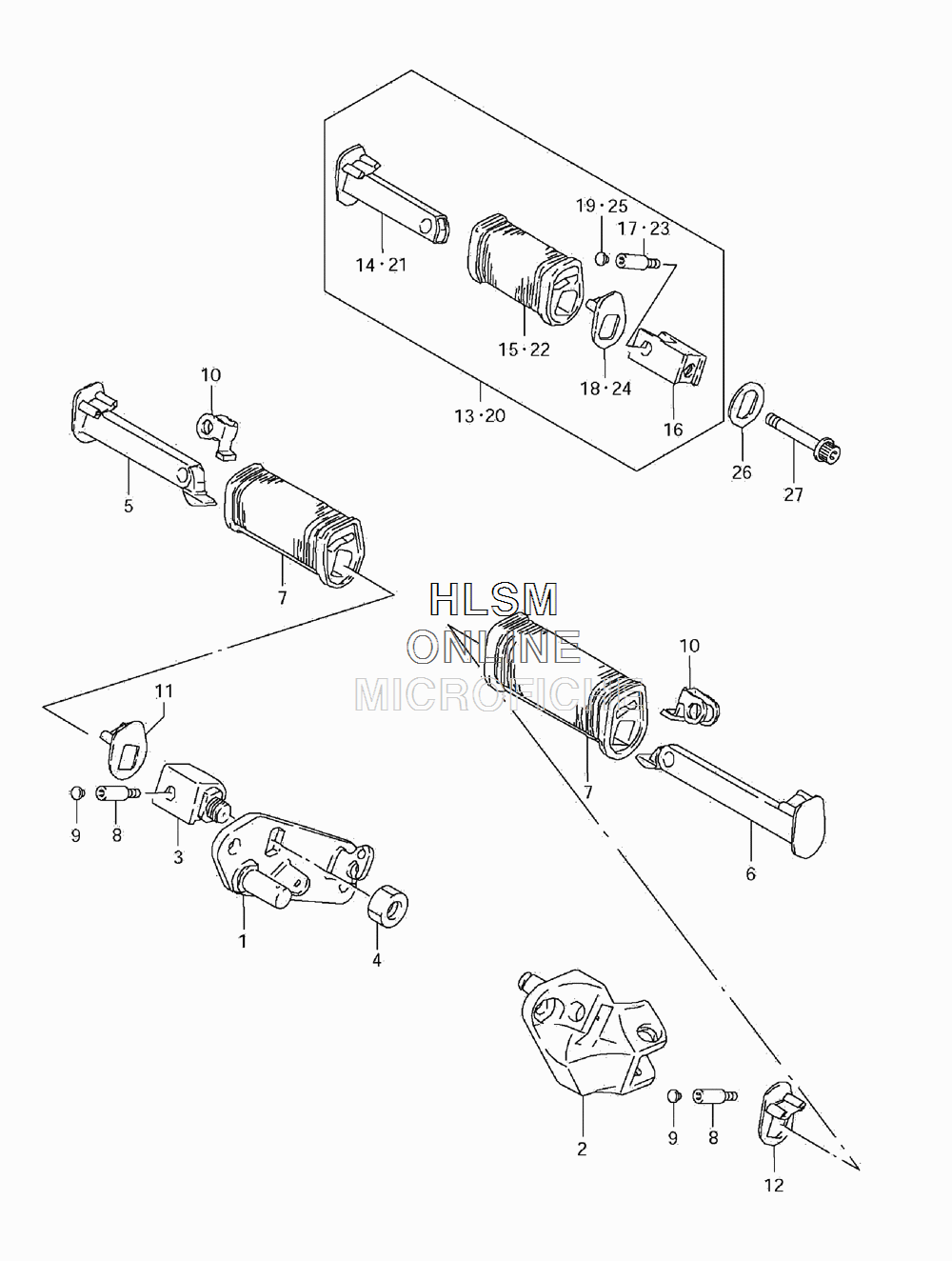

FOOTREST для Suzuki LS-650 L1 - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    43510-24B00 BRACKET, FRONT FOOTREST RIGHT HAND
    BRACKET, FRONT FOOTREST RIGHT HAND
  • 2
    43520-24B22 BRACKET, FRONT FOOTREST LEFT HAND
    BRACKET, FRONT FOOTREST LEFT HAND
  • 3
    43517-24B01 HOLDER, FRONT FOOTREST RIGHT HAND
    HOLDER, FRONT FOOTREST RIGHT HAND
  • 4
    09140-16029 NUT
    NUT
  • 5
    43530-24B02 BAR, FRONT FOOTREST RIGHT HAND
    BAR, FRONT FOOTREST RIGHT HAND
  • 6
    43540-24B02 BAR, FRONT FOOTREST LEFT HAND
    BAR, FRONT FOOTREST LEFT HAND
  • 7
    43551-38A00 RUBBER, FRONT FOOTREST
    RUBBER, FRONT FOOTREST
  • 8
    09106-06100 BOLT (6X8)
    BOLT (6X8)
  • 9
    43576-24B00 CAP, FRONT FOOTREST RUBBER BOLT
    CAP, FRONT FOOTREST RUBBER BOLT
  • 10
    43570-24B01 CUSHION, FRONT FOOTREST
    CUSHION, FRONT FOOTREST
  • 11
    43470-24B00 WASHER, FRONT FOOTREST RIGHT HAND
    WASHER, FRONT FOOTREST RIGHT HAND
  • 12
    43480-24B00 WASHER, FRONT FOOTREST LEFT HAND
    WASHER, FRONT FOOTREST LEFT HAND
  • 13
    43600-24B00 FOOTREST ASSY, PILLION RIGHT HAND (INC 14-19)
    FOOTREST ASSY, PILLION RIGHT HAND (INC 14-19)
  • 14
    43610-24B01 BAR, PILLION FOOTREST RIGHT HAND
    BAR, PILLION FOOTREST RIGHT HAND
  • 15
    43651-24B00 RUBBER, PILLION FOOTREST
    RUBBER, PILLION FOOTREST
  • 16
    43621-24B10 HOLDER, PILLION FOOTREST
    HOLDER, PILLION FOOTREST
  • 17
    09106-06100 BOLT (6X8)
    BOLT (6X8)
  • 18
    43570-38A00 WASHER, PILLION FOOTREST RIGHT HAND
    WASHER, PILLION FOOTREST RIGHT HAND
  • 19
    43576-24B00 CAP, PILLION FOOTREST BOLT
    CAP, PILLION FOOTREST BOLT
  • 20
    43700-24B00 FOOTREST ASSY, PILLION LEFT HAND (INC 21-25)
    FOOTREST ASSY, PILLION LEFT HAND (INC 21-25)
  • 21
    43710-24B01 BAR, PILLION FOOTREST LEFT HAND
    BAR, PILLION FOOTREST LEFT HAND
  • 22
    43651-24B00 RUBBER, PILLION FOOTREST
    RUBBER, PILLION FOOTREST
  • 23
    09106-06100 BOLT (6X8)
    BOLT (6X8)
  • 24
    43580-38A00 WASHER, PILLION FOOTREST LEFT HAND
    WASHER, PILLION FOOTREST LEFT HAND
  • 25
    43576-24B00 CAP, PILLION FOOTREST BOLT
    CAP, PILLION FOOTREST BOLT
  • 26
    43622-24B00 WASHER, PILLION FOOTREST HOLDER
    WASHER, PILLION FOOTREST HOLDER
  • 27
    09106-10086 BOLT (10X45)
    BOLT (10X45)
