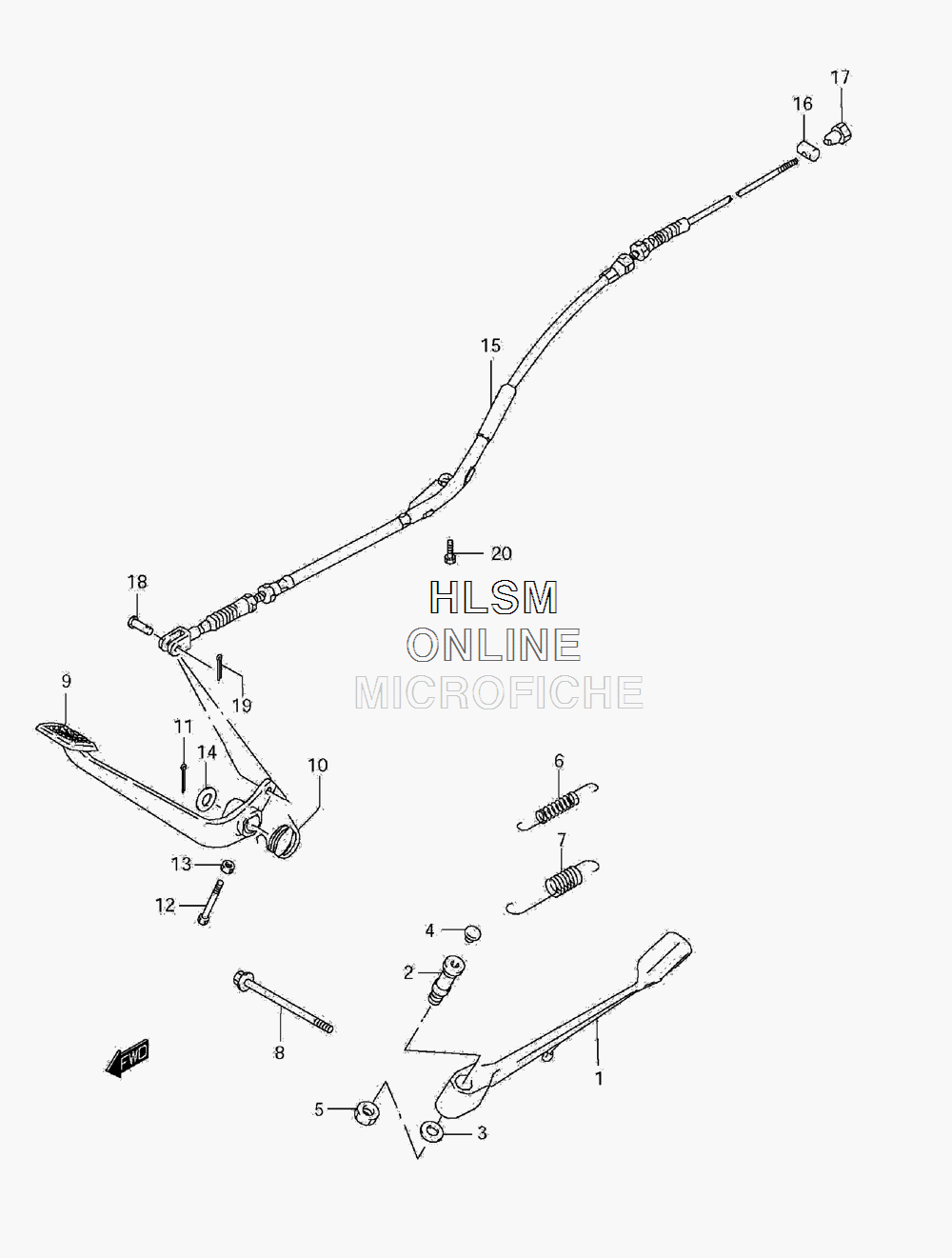

BRAKE PEDAL W/ STAND для Suzuki LS-650 L1 - 2011 года выпуска
-
№АртикулНазвание
-
142310-24B01 STAND, PROPSTAND, PROP
-
242341-38B01 BOLT, PROP STANDBOLT, PROP STAND
-
309181-15158 SHIMSHIM
-
443575-24B00 CAP, PROP STAND BOLTCAP, PROP STAND BOLT
-
509140-10044 NUTNUT
-
609443-15034 SPRINGSPRING
-
709443-18020 SPRINGSPRING
-
809103-10087 BOLT (10X105)BOLT (10X105)
-
943110-24B10 PEDAL, BRAKEPEDAL, BRAKE
-
1009448-32017 SPRINGSPRING
-
1104111-3025A COTTER PINCOTTER PIN
-
1209100-06150 BOLT (6X31)BOLT (6X31)
-
1308310-0006B NUTNUT
-
1409160-16043 WASHER (16.5X22X1)WASHER (16.5X22X1)
-
1558510-24B10 CABLE, REAR BRAKECABLE, REAR BRAKE
-
1609209-13018 PINPIN
-
1709150-06010 NUTNUT
-
1809200-05001 PINPIN
-
1904111-2015A COTTER PINCOTTER PIN
-
2001570-0616B BOLTBOLT
