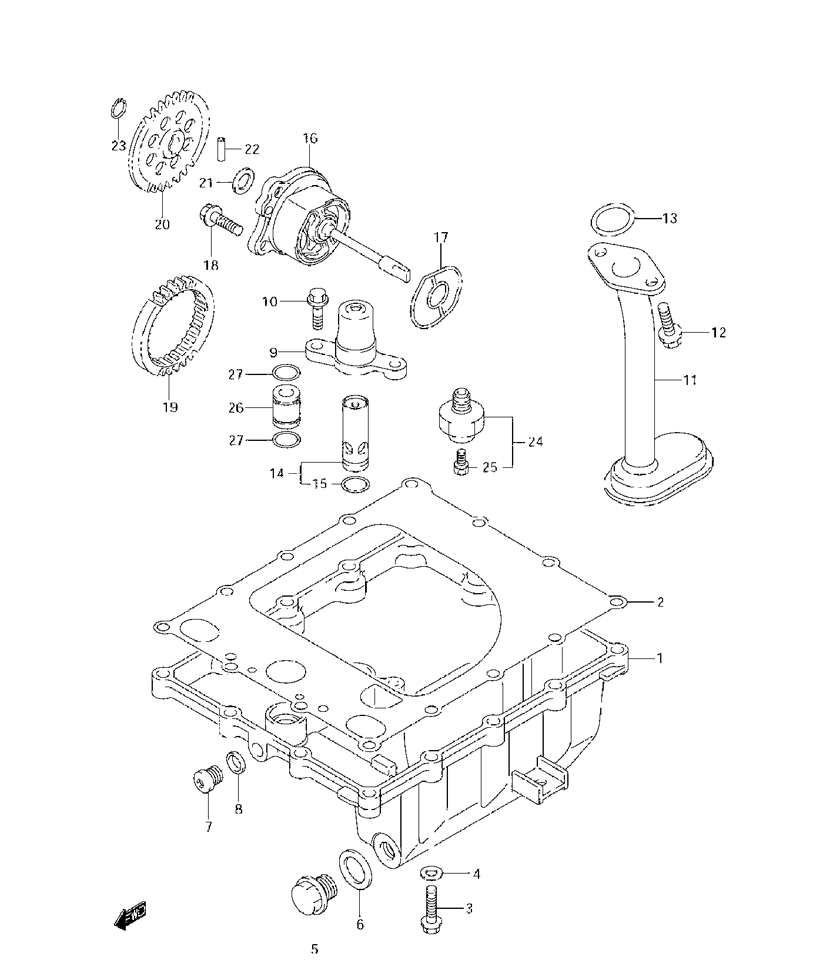

OIL PAN W/ OIL PUMP ASSY. для Suzuki GSX-R1000 K7 - 2007 года выпуска`
-
№АртикулНазвание
-
111511-21H00 PAN, OILPAN, OIL
-
211489-21H00 GASKET, OIL PANGASKET, OIL PAN
-
301547-0625A BOLTBOLT
-
409168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
509247-14036 PLUG, OIL DRAINPLUG, OIL DRAIN
-
609168-14002 GASKETGASKET
-
709248-10010 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
809168-10002 GASKETGASKET
-
911512-44G00 CAP, OIL RELIEF VALVECAP, OIL RELIEF VALVE
-
1001547-0620A BOLTBOLT
-
1116520-21H00 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
1209106-06099 BOLT (6X16)BOLT (6X16)
-
1309280-19008 O RING (D:2.62,ID:20.3)O RING (D:2.62,ID:20.3)
-
1416440-24F00 VALVE ASSY, OIL RELIEF (INCL. 15)VALVE ASSY, OIL RELIEF (INCL. 15)
-
1509280-13004 O RINGO RING
-
1616400-21H00 PUMP ASSY, ENGINE OILPUMP ASSY, ENGINE OIL
-
1716491-35F00 O RINGO RING
-
1801547-0620A BOLTBOLT
-
1916321-35F01 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
2016331-35F00 GEAR, OIL PUMP DRIVENGEAR, OIL PUMP DRIVEN
-
2109181-10158 WASHERWASHER
-
2209261-04009 PINPIN
-
2308331-31106 CIRCLIPCIRCLIP
-
2437820-33D10 SWITCH, OIL PRESSURE (INCL. 25)SWITCH, OIL PRESSURE (INCL. 25)
-
2537822-33D00 BOLTBOLT
-
2611281-44G00 PIPE, OIL GALLERYPIPE, OIL GALLERY
-
2709280-13004 O RINGO RING
