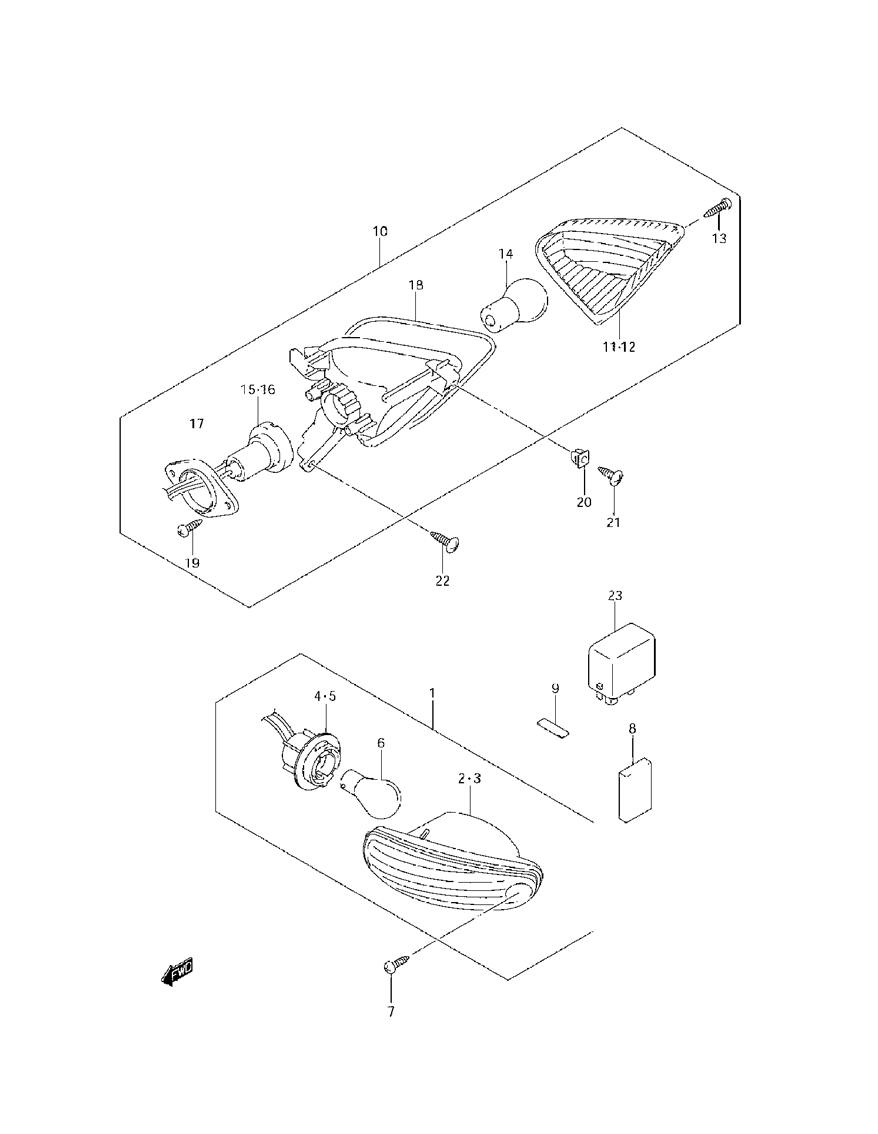

TURN SIGNAL ASSY. для Suzuki GSX-R1000 K7 - 2007 года выпуска
-
№АртикулНазвание
-
135601-41G00 LAMP ASSY, FRONT TURNSIGNAL, R (INCL. 2-6)LAMP ASSY, FRONT TURNSIGNAL, R (INCL. 2-6)
-
135602-41G00 LAMP ASSY, FRONT TURNSIGNAL, L (INCL. 2-6)LAMP ASSY, FRONT TURNSIGNAL, L (INCL. 2-6)
-
235610-41G00 LAMP UNIT, RLAMP UNIT, R
-
335630-41G00 LAMP UNIT, LLAMP UNIT, L
-
435618-10G50 SOCKET, RSOCKET, R
-
535638-10G50 SOCKET, LSOCKET, L
-
609471-12186 BULB (12V21W)BULB (12V21W)
-
709132-04032 SCREW, FR TURNSIGNAL (4X20)SCREW, FR TURNSIGNAL (4X20)
-
833652-20C00 CUSHION, FR TURN (50X50X5) CUT AS REQUIRED (40X20)CUSHION, FR TURN (50X50X5) CUT AS REQUIRED (40X20)
-
994443-21H00 TAPE, FR TURN 5X20X.04TAPE, FR TURN 5X20X.04
-
1035603-21H00 LAMP ASSY, REAR TURNSIGNAL, R (INCL. 11-19)LAMP ASSY, REAR TURNSIGNAL, R (INCL. 11-19)
-
1035604-21H00 LAMP ASSY, REAR TURNSIGNAL, L (INCL. 11-19)LAMP ASSY, REAR TURNSIGNAL, L (INCL. 11-19)
-
1135652-21H00 LENS, RLENS, R
-
1235672-21H00 LENS, LLENS, L
-
1303211-0416A SCREWSCREW
-
1409471-12186 BULB (12V21W)BULB (12V21W)
-
1535658-41G00 SOCKET AND CORD, RSOCKET AND CORD, R
-
1635678-41G00 SOCKET AND CORD, LSOCKET AND CORD, L
-
1735716-07A30 PLATEPLATE
-
1835653-21H00 GASKETGASKET
-
1903211-0412A SCREWSCREW
-
2009148-04021 NUT, REAR TURNSIGNALNUT, REAR TURNSIGNAL
-
2103541-0412A SCREW, REAR TURNSIGNALSCREW, REAR TURNSIGNAL
-
2203541-0512A SCREW, REAR TURNSIGNALSCREW, REAR TURNSIGNAL
-
2338610-03F00 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
