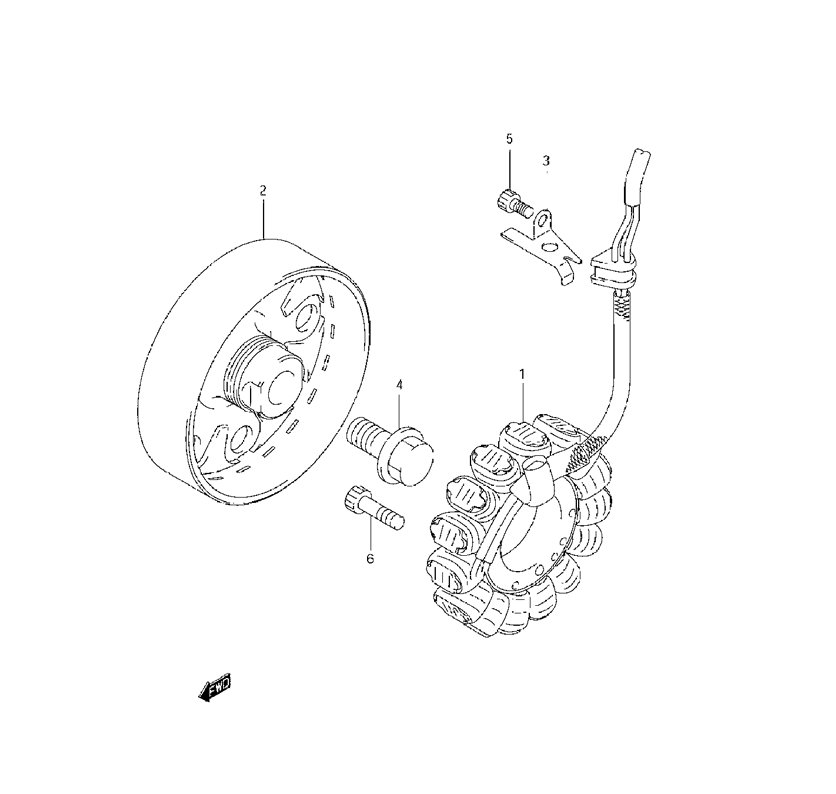

GENERATOR для Suzuki GSX-R1000 K7 - 2007 года выпуска
-
№АртикулНазвание
-
131401-41G10 STATOR ASSYSTATOR ASSY
-
231402-41G10 ROTOR ASSYROTOR ASSY
-
332371-33E00 CLAMP, GENERATOR LEAD WIRECLAMP, GENERATOR LEAD WIRE
-
409103-12005 BOLT, GENERATOR ROTOR (12X23)BOLT, GENERATOR ROTOR (12X23)
-
507130-0612A BOLT, GENERATOR LEAD CLBOLT, GENERATOR LEAD CL
-
609106-06122 BOLT, GENERATOR STATOR 6X30BOLT, GENERATOR STATOR 6X30
