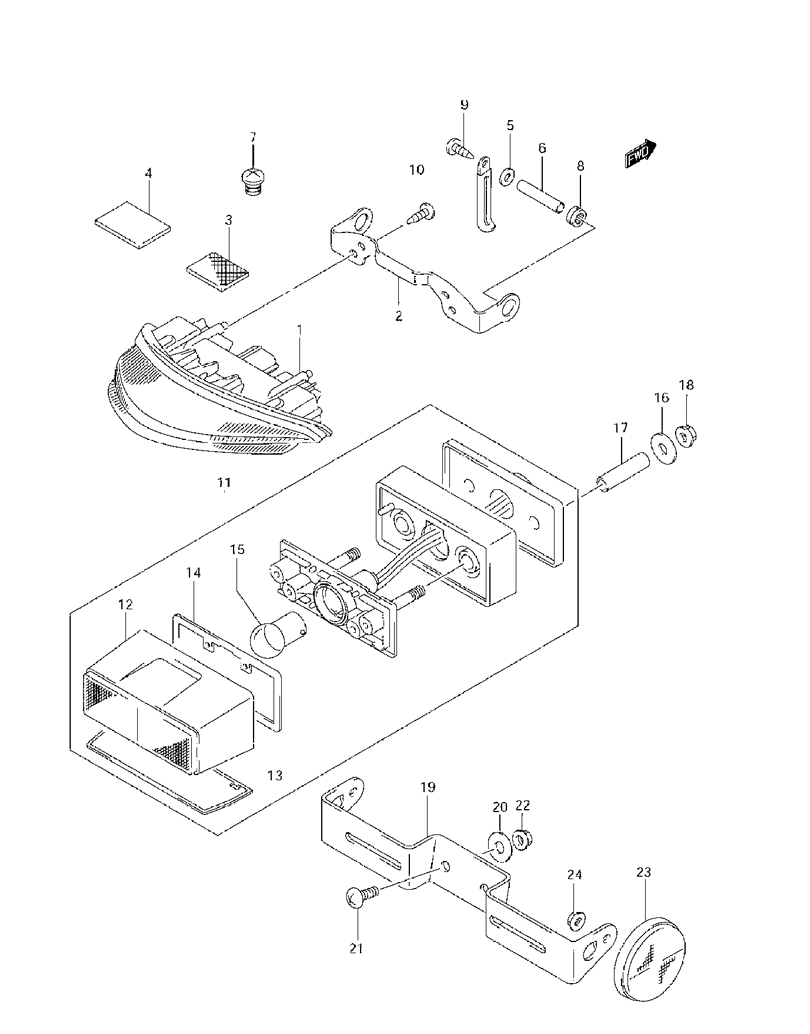

TAILLIGHT ASSY. для Suzuki GSX-R1000 K7 - 2007 года выпуска

№

Артикул

Название
1

35710-21H30 LAMP ASSY, REAR COMB

LAMP ASSY, REAR COMB
2

35726-21H10 BRACKET, REAR COMB LAMP

BRACKET, REAR COMB LAMP
3

44572-13G00 FASTENER, RR COMB 33X25X3.0

FASTENER, RR COMB 33X25X3.0
4

47312-21H00 CUSHION, RR COMB 30X40X4.0

CUSHION, RR COMB 30X40X4.0
5

09160-05501 WASHER (5.5X20X1.2)

WASHER (5.5X20X1.2)
6

09180-05063 SPACER (5.5X9.5X8.5)

SPACER (5.5X9.5X8.5)
7

09250-09001 CAP, FRAME COVER CENTER OD:14

CAP, FRAME COVER CENTER OD:14
8

09320-09009 CUSHION, RR COMB

CUSHION, RR COMB
9

02142-0520A SCREW, RR COMB

SCREW, RR COMB
10

03541-0516A SCREW, RR COMB

SCREW, RR COMB
11

35910-41G30 LAMP ASSY, LICENSE (INCL. 12-15)

LAMP ASSY, LICENSE (INCL. 12-15)
12

35917-41G00 COVER, LICENSE LAMP

COVER, LICENSE LAMP
13

35912-41G00 LENS, LICENSE

LENS, LICENSE
14

35913-41G00 GASKET

GASKET
15

09471-12140 BULB (12V5W)

BULB (12V5W)
16

09160-06077 WASHER, LICENSE LAMP 6.5X20X1.2

WASHER, LICENSE LAMP 6.5X20X1.2
17

09180-06278 SPACER, LICENSE LAMP 6.5X9X33.3

SPACER, LICENSE LAMP 6.5X9X33.3
18

08316-1006A NUT, LICENSE LAMP

NUT, LICENSE LAMP
19

35927-41G30 BRACKET, LICENSE PLATE

BRACKET, LICENSE PLATE
20

09160-06077 WASHER (6.5X20X1.2)

WASHER (6.5X20X1.2)
21

02142-0616A SCREW

SCREW
22

08316-1006A NUT

NUT
23

35970-14A20 REFLECTOR ASSY, RR SIDE

REFLECTOR ASSY, RR SIDE
24

08316-1005A NUT

NUT
