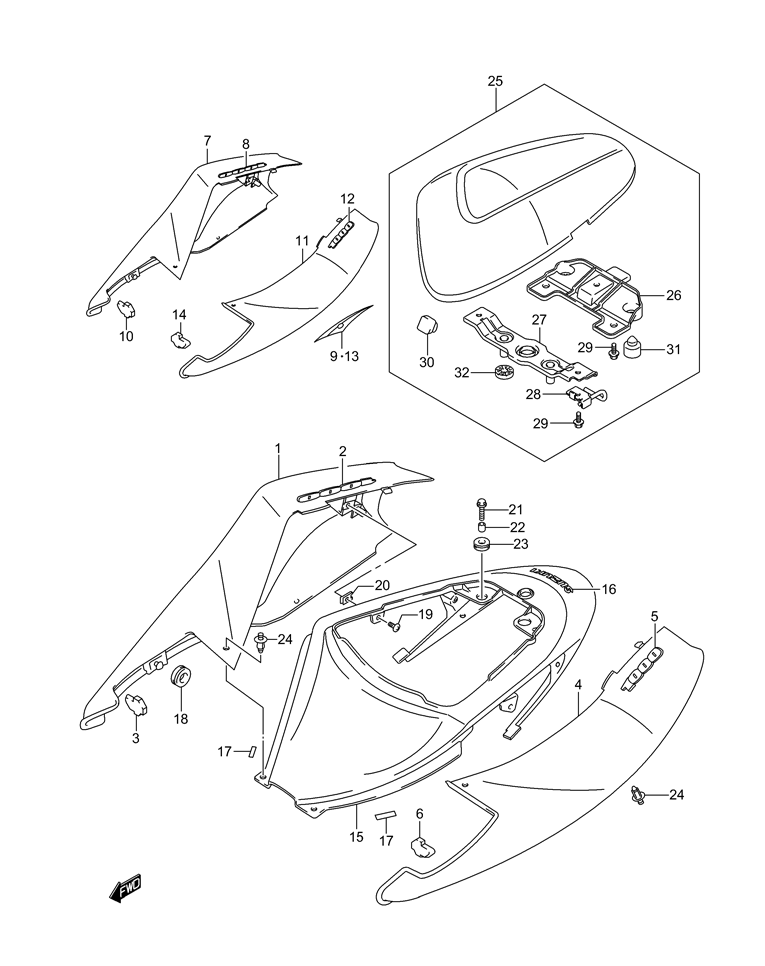

SEAT TAIL COVER для Suzuki GSX-R1000 K6 - 2006 года выпуска

№

Артикул

Название
1

45501-41G11-019 COVER, SEAT TAIL, RIGHT (BLACK, 019 FOR BZG)

COVER, SEAT TAIL, RIGHT (BLACK, 019 FOR BZG)
1

45501-41G11-1PX COVER, SEAT TAIL, RIGHT (BLACK, 1PX FOR CRS)

COVER, SEAT TAIL, RIGHT (BLACK, 1PX FOR CRS)
1

45501-41G11-YHF COVER, SEAT TAIL, RIGHT (GRAY, YHF FOR CRT)

COVER, SEAT TAIL, RIGHT (GRAY, YHF FOR CRT)
1

45501-41G11-YKV COVER, SEAT TAIL, RIGHT (BLACK, YKV FOR CRU)

COVER, SEAT TAIL, RIGHT (BLACK, YKV FOR CRU)
2

68161-41G00-CTW EMBLEM, ''1000'' (FOR 019)

EMBLEM, ''1000'' (FOR 019)
2

68161-41G00-CVY EMBLEM, ''1000'' (FOR 1PX)

EMBLEM, ''1000'' (FOR 1PX)
2

68161-41G00-CVZ EMBLEM, ''1000'' (FOR YHF/YKV)

EMBLEM, ''1000'' (FOR YHF/YKV)
3

45515-41G00 CUSHION, SEAT TAIL COVER RIGHT

CUSHION, SEAT TAIL COVER RIGHT
4

45502-41G11-019 COVER, SEAT TAIL, LEFT (BLACK, 019 FOR BZG)

COVER, SEAT TAIL, LEFT (BLACK, 019 FOR BZG)
4

45502-41G11-1PX COVER, SEAT TAIL, LEFT (BLACK, 1PX FOR CRS)

COVER, SEAT TAIL, LEFT (BLACK, 1PX FOR CRS)
4

45502-41G11-YHF COVER, SEAT TAIL, LEFT (GRAY, YHF FOR CRT)

COVER, SEAT TAIL, LEFT (GRAY, YHF FOR CRT)
4

45502-41G11-YKV COVER, SEAT TAIL, LEFT (BLACK, YKV FOR CRU)

COVER, SEAT TAIL, LEFT (BLACK, YKV FOR CRU)
5

68161-41G00-CTW EMBLEM, ''1000'' (FOR 019)

EMBLEM, ''1000'' (FOR 019)
5

68161-41G00-CVY EMBLEM, ''1000'' (FOR 1PX)

EMBLEM, ''1000'' (FOR 1PX)
5

68161-41G00-CVZ EMBLEM, ''1000'' (FOR YHF/YKV)

EMBLEM, ''1000'' (FOR YHF/YKV)
6

45516-41G00 CUSHION, SEAT COVER, LEFT

CUSHION, SEAT COVER, LEFT
7

45501-41G20-YBD COVER, SAT TAIL, RIGHT (WHITE) (FOR LR5)

COVER, SAT TAIL, RIGHT (WHITE) (FOR LR5)
8

68161-41G00-LV8 EMBLEM, ''1000''

EMBLEM, ''1000''
9

68165-41G10-CVJ TAPE, SEAT TAIL COVER, RIGHT

TAPE, SEAT TAIL COVER, RIGHT
10

45515-41G00 CUSHION, SAT TAIL COVER, RIGHT

CUSHION, SAT TAIL COVER, RIGHT
11

45502-41G20-YBD COVER, SEAT TAIL, LEFT (WHITE) (FOR LR5)

COVER, SEAT TAIL, LEFT (WHITE) (FOR LR5)
12

68161-41G00-LV8 EMBLEM, ''1000''

EMBLEM, ''1000''
13

68167-41G10-CVJ TAPE, SEAT TAIL COVER, LEFT

TAPE, SEAT TAIL COVER, LEFT
14

45516-41G00 CUSHION, SEAT TAIL COVER, LEFT

CUSHION, SEAT TAIL COVER, LEFT
15

45503-41G00-YBA COVER, SEAT TAIL CENTER (BLUE, YBA FOR LR5)

COVER, SEAT TAIL CENTER (BLUE, YBA FOR LR5)
15

45503-41G00-YHH COVER, SEAT TAIL CENTER (RED, YHH FOR BZG)

COVER, SEAT TAIL CENTER (RED, YHH FOR BZG)
15

45503-41G00-YHL COVER, SEAT TAIL CENTER (RED, YHL FOR CRS)

COVER, SEAT TAIL CENTER (RED, YHL FOR CRS)
15

45503-41G00-YHG COVER, SEAT TAIL CENTER (GRAY, YHG FOR CRT)

COVER, SEAT TAIL CENTER (GRAY, YHG FOR CRT)
15

45503-41G00-1TX COVER, SEAT TAIL CENTER (BLACK, ITX FOR CRU)

COVER, SEAT TAIL CENTER (BLACK, ITX FOR CRU)
16

68280-04F00-YD8 EMBLEM, ''SUZUKI'' (FOR LR5)

EMBLEM, ''SUZUKI'' (FOR LR5)
16

68280-04F00-019 EMBLEM, ''SUZUKI'' (FOR BZG/CRS/CRT)

EMBLEM, ''SUZUKI'' (FOR BZG/CRS/CRT)
16

68280-04F00-YU8 EMBLEM, ''SUZUKI'' (FOR CRU)

EMBLEM, ''SUZUKI'' (FOR CRU)
17

94443-06G00 TAPE, SEAT TAIL COVER

TAPE, SEAT TAIL COVER
18

09320-08028 CUSHION, FRONT

CUSHION, FRONT
19

03241-15123 SCREW, CENTER

SCREW, CENTER
20

09148-05038 NUT, CENTER

NUT, CENTER
21

09116-06192 BOLT, REAR

BOLT, REAR
22

09180-06286 SPACER, REAR

SPACER, REAR
23

09320-10052 CUSHION, REAR

CUSHION, REAR
24

09409-06314-5PK CLIP

CLIP
25

45550-41G00-YBA BOX, SEAT TAIL (BLUE, YBA FOR LR5)

BOX, SEAT TAIL (BLUE, YBA FOR LR5)
25

45550-41G00-YHH BOX, SEAT TAIL (RED, YHH FOR BZG)

BOX, SEAT TAIL (RED, YHH FOR BZG)
25

45550-41G00-YHL BOX, SEAT TAIL (RED, YHL FOR CRS)

BOX, SEAT TAIL (RED, YHL FOR CRS)
25

45550-41G00-YHG BOX, SEAT TAIL (GRAY, YHG FOR CRT)

BOX, SEAT TAIL (GRAY, YHG FOR CRT)
25

45550-41G00-019 BOX, SEAT TAIL (BLACK, 019 FOR CRU)

BOX, SEAT TAIL (BLACK, 019 FOR CRU)
26

45552-41G00 BOTTOM

BOTTOM
27

45290-41G00 STRIKER

STRIKER
28

45553-41G00 HOLDER, HELMET

HOLDER, HELMET
29

01550-06123 BOLT

BOLT
30

45554-41G00 CUSHION

CUSHION
31

09321-10011 CUSHION

CUSHION
32

45213-31300 CUSHION

CUSHION
