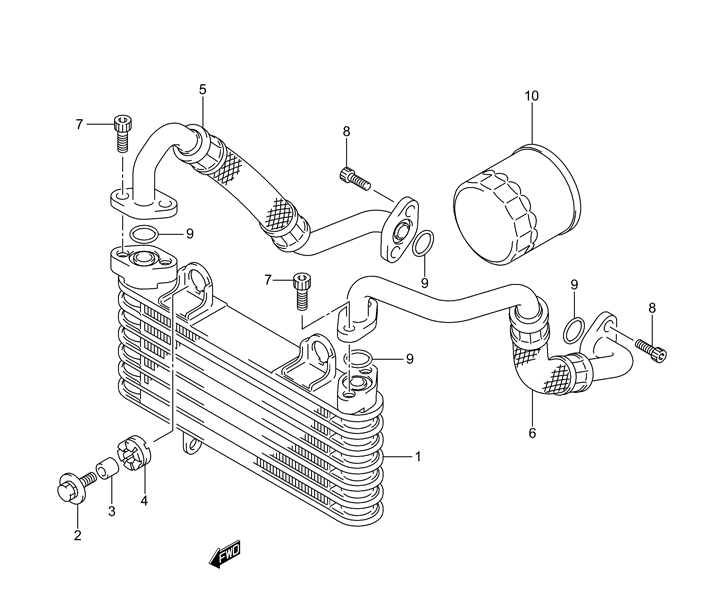

OIL COOLER для Suzuki GSX-R1000 K6 - 2006 года выпуска
-
№АртикулНазвание
-
116600-40F10 COOLER ASSY, OILCOOLER ASSY, OIL
-
209118-06097 BOLT (6X25)BOLT (6X25)
-
309180-06310 SPACERSPACER
-
409320-10055 CUSHIONCUSHION
-
516460-41G00 HOSE, OIL COOLER RIGHT HANDHOSE, OIL COOLER RIGHT HAND
-
616470-41G00 HOSE, OIL COOLER LEFT HANDHOSE, OIL COOLER LEFT HAND
-
709106-06096 BOLT, RH (6X16)BOLT, RH (6X16)
-
809106-06073 BOLT, CRANKCASE LOWERBOLT, CRANKCASE LOWER
-
909280-12012 O RINGO RING
-
1016510-03G00-X07 FILTER ASSY, ENGINE OILFILTER ASSY, ENGINE OIL
