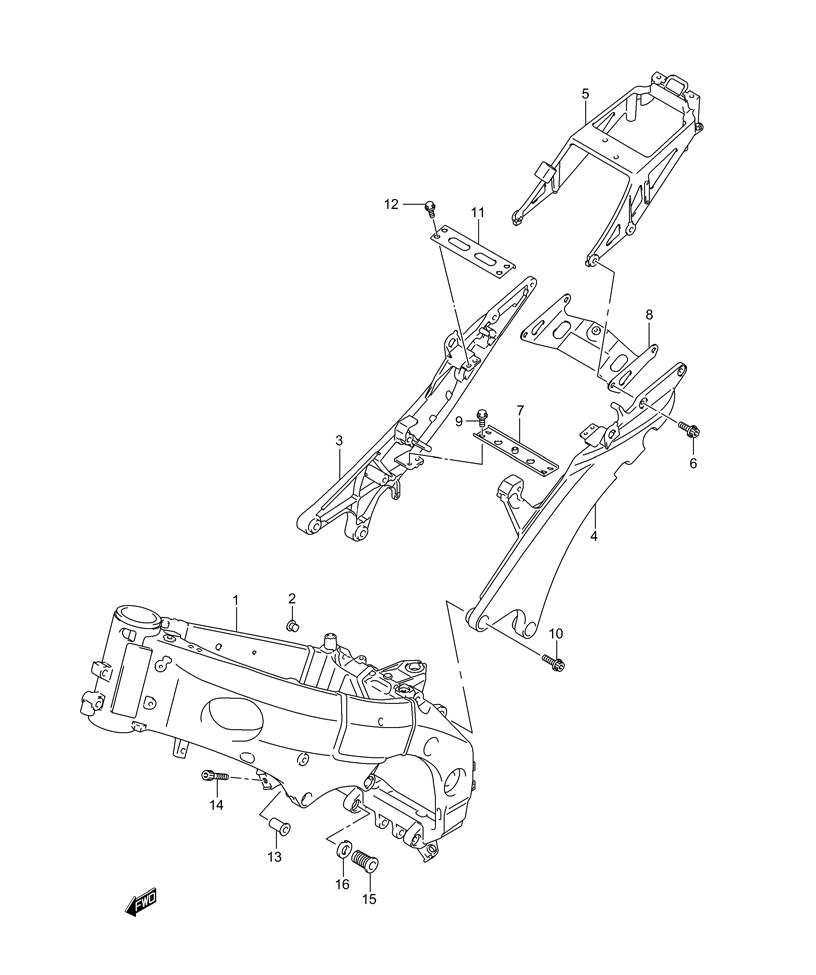

FRAME для Suzuki GSX-R1000 K6 - 2006 года выпуска
-
№АртикулНазвание
-
141100-41G00-YAP FRAME (BLACK)FRAME (BLACK)
-
243585-18G00 CAP, TANK RAILCAP, TANK RAIL
-
341211-41G00-YAP RAIL, SEAT RIGHT HAND (BLACK)RAIL, SEAT RIGHT HAND (BLACK)
-
441221-41G00-YAP RAIL, SEAT LEFT HAND (BLACK)RAIL, SEAT LEFT HAND (BLACK)
-
541231-41G00 BRACKET, PILLION SEATBRACKET, PILLION SEAT
-
641233-18G00 BOLTBOLT
-
741770-41G00 BRIDGE, FRONTBRIDGE, FRONT
-
841240-41G00 BRIDGE, REARBRIDGE, REAR
-
909103-06083 BOLT (6 X 12)BOLT (6 X 12)
-
1007120-08203 BOLT, SEAT RAILBOLT, SEAT RAIL
-
1141251-41G00 BRIDGE, UPPERBRIDGE, UPPER
-
1209103-06083 BOLT (6 X 12)BOLT (6 X 12)
-
1341911-40F01 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
1409106-08149 BOLTBOLT
-
1541921-35F00 BOLT, CRANKCASE ADJUSTBOLT, CRANKCASE ADJUST
-
1641922-18G00 NUT, CRANKCASE ADJUSTNUT, CRANKCASE ADJUST
